Hydropower

The equipment is designed for the study and visualization of both the behavior and the characteristics of a Kaplan turbine.

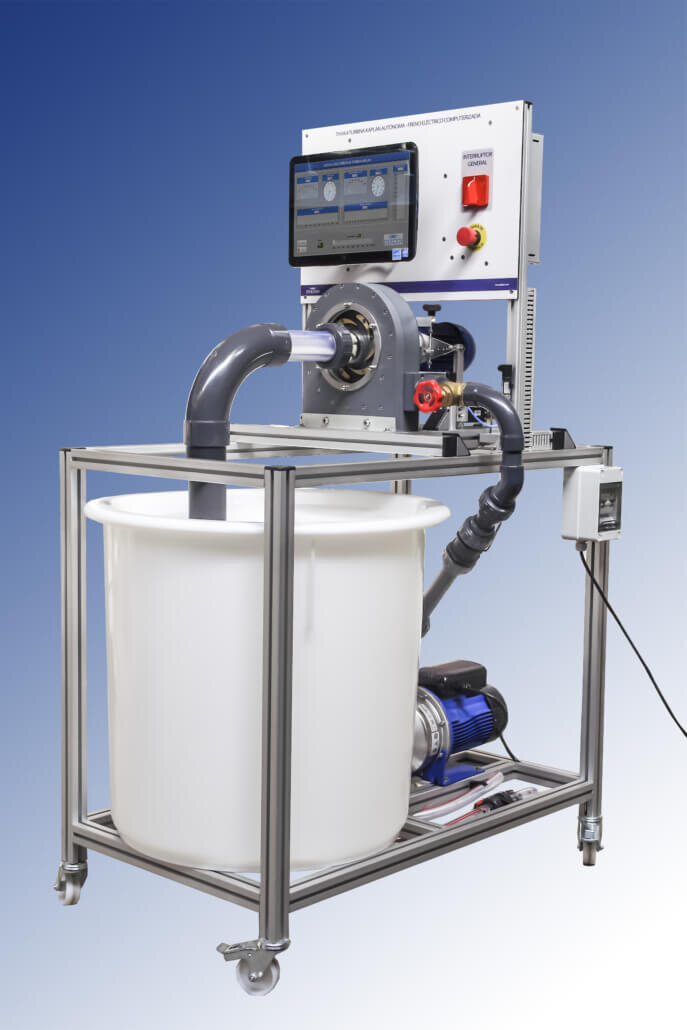

The turbine can be operated in a totally autonomous way, thanks to the equipment is composed of water tank, pump and all the necessary instruments, on a mobile laboratory car.

The equipment is designed for the study and visualization of both the behavior and the characteristics of a Kaplan turbine.

Through the different indicators of the system, you can see all the variables that come into play in the transformation of energy.



Learning objectives

  • Characteristic curves of the turbine:
  • Torque – rotational speed (M-n).
  • Brake power – Rotational speed (Pe- n).
  • Efficiency – rotational speed (h – n).
  • Torque – U (M-U).
  • Brake power – U (Pe- U).
  • Efficiency – U (h– U).
  • Iso-performance curves.



Technical Data

  • Type of Brake: Braking with Electric Brake.

Turbine:

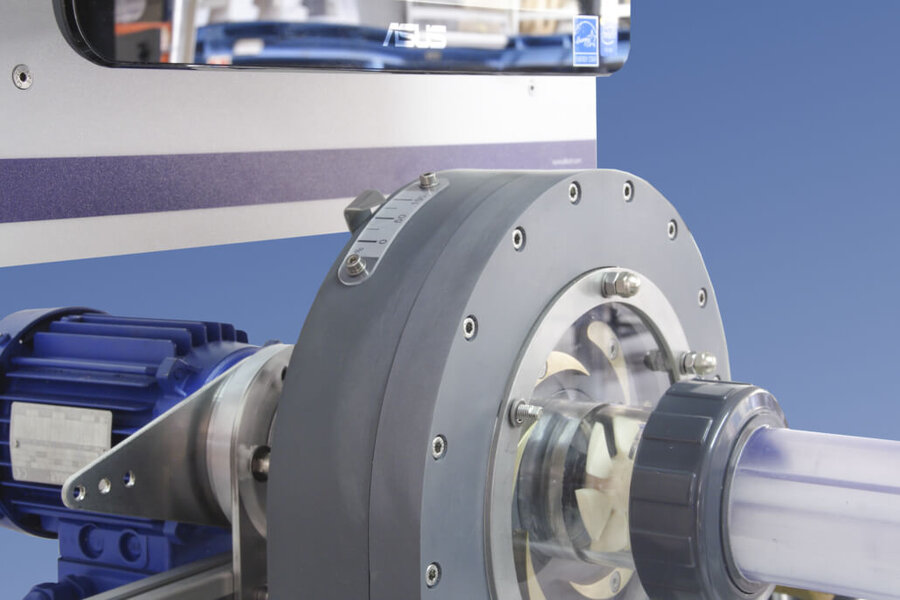

  • Type: Kaplan
  • Number of impeller blades: 4
  • Angle of the impeller blades: Variable, with adjustment by impeller exchange.
  • Guide pallets

Structure:

  • The equipment is supplied on an aluminum structure, with tank and pump, in which the necessary flow is generated for the turbine.

Electronic components:

  • Pressure transducer.
  • Differential pressure sensor.
  • Direct rpm detection sensor.

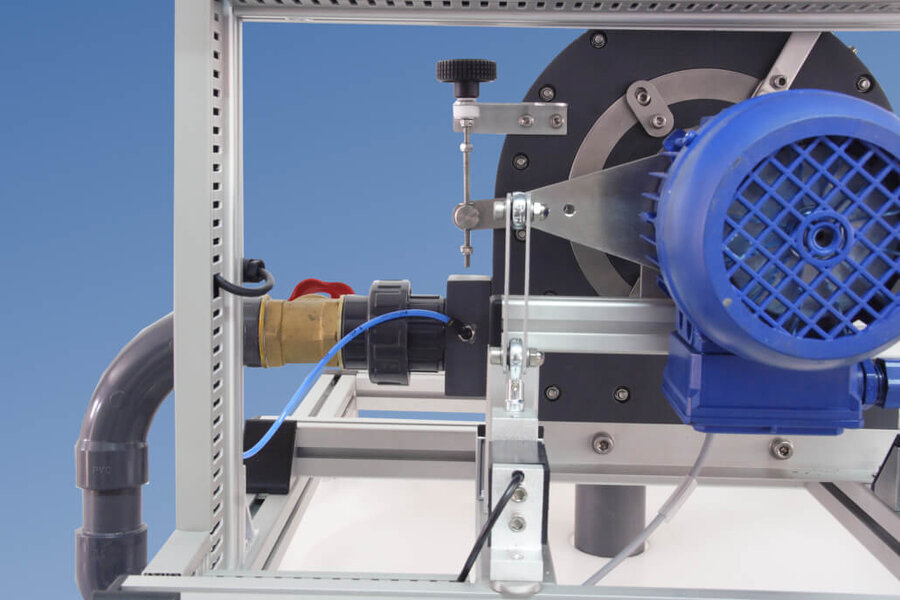

  • Load cell for torque measurement.
  • Data acquisition card.

Other elements:

  • PC with software.



Requirements

  • Input: 230V/50Hz. (Others like option)





Technical Data

  • Type of Brake: Braking with Electric Brake.

Turbine:

  • Type: Kaplan
  • Number of impeller blades: 4
  • Angle of the impeller blades: Variable, with adjustment by impeller exchange.
  • Guide pallets

Structure:

  • The equipment is supplied on an aluminum structure, with tank and pump, in which the necessary flow is generated for the turbine.

Electronic components:

  • Pressure transducer.
  • Differential pressure sensor.
  • Direct rpm detection sensor.
  • Load cell for torque measurement.
  • Data acquisition card.

Other elements:

  • PC with software.



Requirements

  • Input: 230V/50Hz. (Others like option)

Voltage availability
220-240V
Production lead time
days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
No
