DL-Hydrogen-B
Hydrogen Fuel Cells

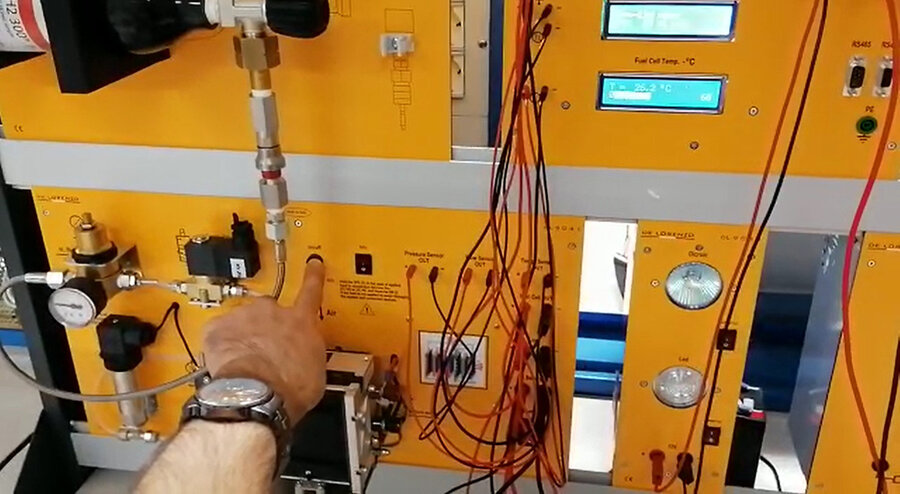

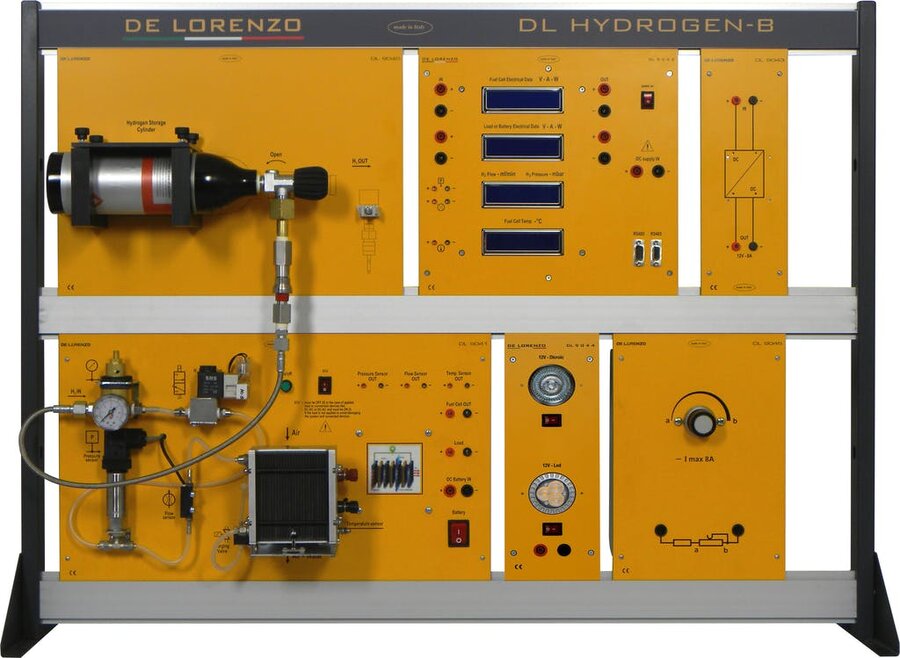

The ultimate generation training panel for studying and testing PEM hydrogen fuel-cell technology up to 100W power thru variable load.

This trainer has been designed for the study of fuel cell systems. It teaches engineering principles and it allows performing a set of experiments for educational purposes. It is safe and easy to be operated.
Furthermore, it is very flexible, modular and suitable for the understanding of basic principles as well as more complex technology concepts.

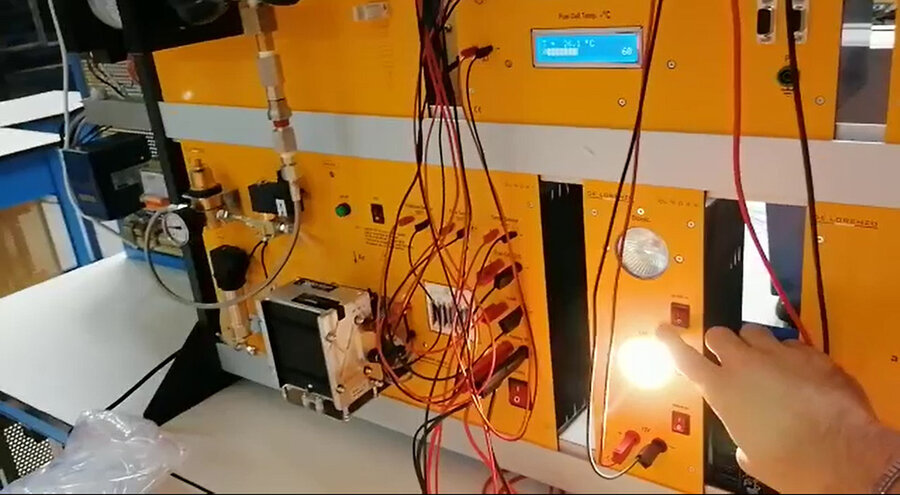

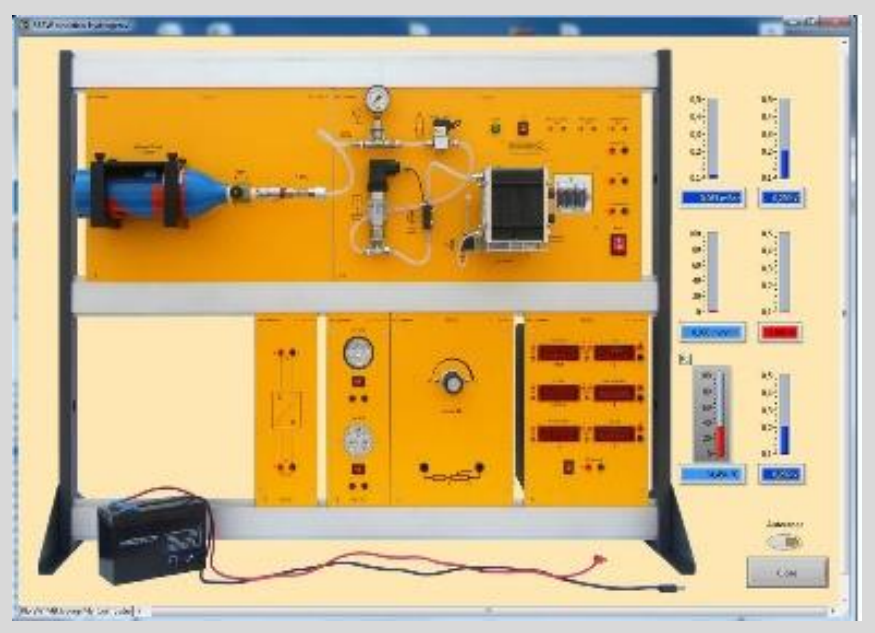

Complete with connecting cables, experiment manual and software for data acquisition and processing.

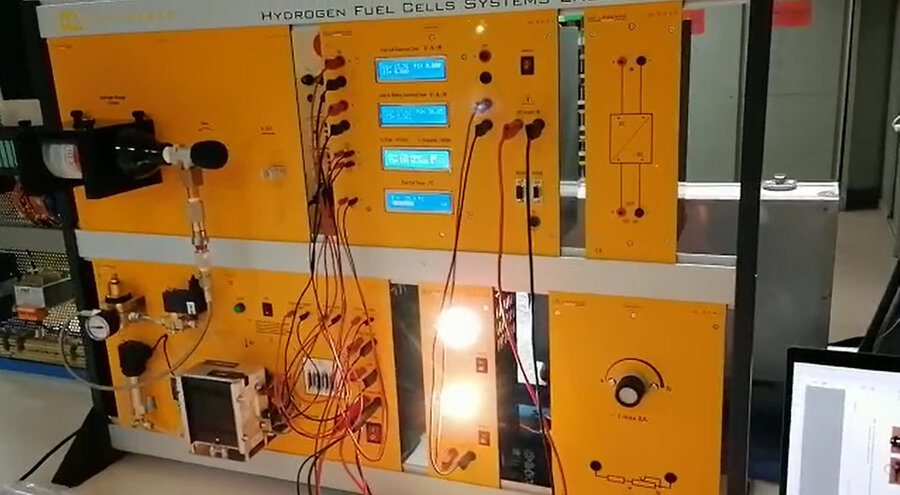

The system includes a load bench composed by halogen bulb lamps, temperature, pressure and flow monitoring and a MyH2 300 refillable metal hydrides canister (up to 300 liters of H2 storable) for a total of 3 hours of running.


TRAINING OBJECTIVES

The trainer is very flexible, modular and suitable for the understanding of basic principles as well as more complex technology concepts.

It allows performing the following experiments:

  • Familiarize yourself with the fuel cell trainer
  • Performance of the PEM Fuel Cell with fixed loads, without DC/DC converter
  • Performance of the PEM Fuel Cell with fixed loads, with DC/DC Converter
  • Recording of the current/voltage characteristic curve of the PEM Fuel Cell with variable load
  • Calculation of the energy efficiency of the PEM Fuel Cell
  • Average training hours: 8h.


TECHNICAL SPECIFICATIONS

  • Fuel-cell stack PEM up to 100 W
  • Performances: 14 V at 7.2 A
  • H2 consumption: 1.4 l/min.
  • Complete of electronic controller
  • Mini metal hydrides cartridge MyH2 300 up to 300Nl storage and 3 running hours.
  • DC-DC converter, output 12 V, 8 A
  • Load bench including halogen bulb lamp, 12 V, 50 W, LED bulb lamp, 12 V, 3 x 1W
  • Logarithmic adjustable rheostat, 1,5 Ohm ÷ 17 Ohm, 100 W, Imax = 8 A
  • Battery 12V, 7Ah for fuel-cell auxiliaries
  • Module with measurement tools including:
  • 2 voltmeters, 40 V,
  • 1 amperemeter, 10 A,
  • 3 displays for temperature, pressure and flow monitoring.

Approx. packing dimensions:

1.21 x 0.62 x 0.82 m.

Net weight: 35 kg.


OPTIONAL

MyH2, metal hydrides canister to store hydrogen. Capability: 600l - 900l - 2000l - 3000l

Hy PEM XP electrolyzer for filling the hydrides storage canister or for supplying H2 fuel directly to fuel-cell

Pressure regulator with connection kit for refills of metal hydrides canister



TECHNICAL SPECIFICATIONS

  • Fuel-cell stack PEM up to 100 W
  • Performances: 14 V at 7.2 A
  • H2 consumption: 1.4 l/min.
  • Complete of electronic controller
  • Minimetal hydrides cartridge MyH2 300 up to 300Nl storage and 3 running hours.
  • DC-DC converter, output 12 V, 8 A
  • Load bench including halogen bulb lamp, 12 V, 50 W, LED bulb lamp, 12 V, 3 x 1W
  • Logarithmic adjustable rheostat, 1,5 Ohm ÷ 17 Ohm, 100 W, Imax = 8 A
  • Battery 12V, 7Ah for fuel-cell auxiliaries
  • Module with measurement tools including:
  • 2 voltmeters, 40 V,
  • 1 amperemeter, 10 A,
  • 3 displays for temperature, pressure and flow monitoring.


Approx. packing dimensions:

  • 1.21 x 0.62 x 0.82 m.
  • Net weight: 35 kg.

Voltage availability
220-240V
Production lead time
days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
