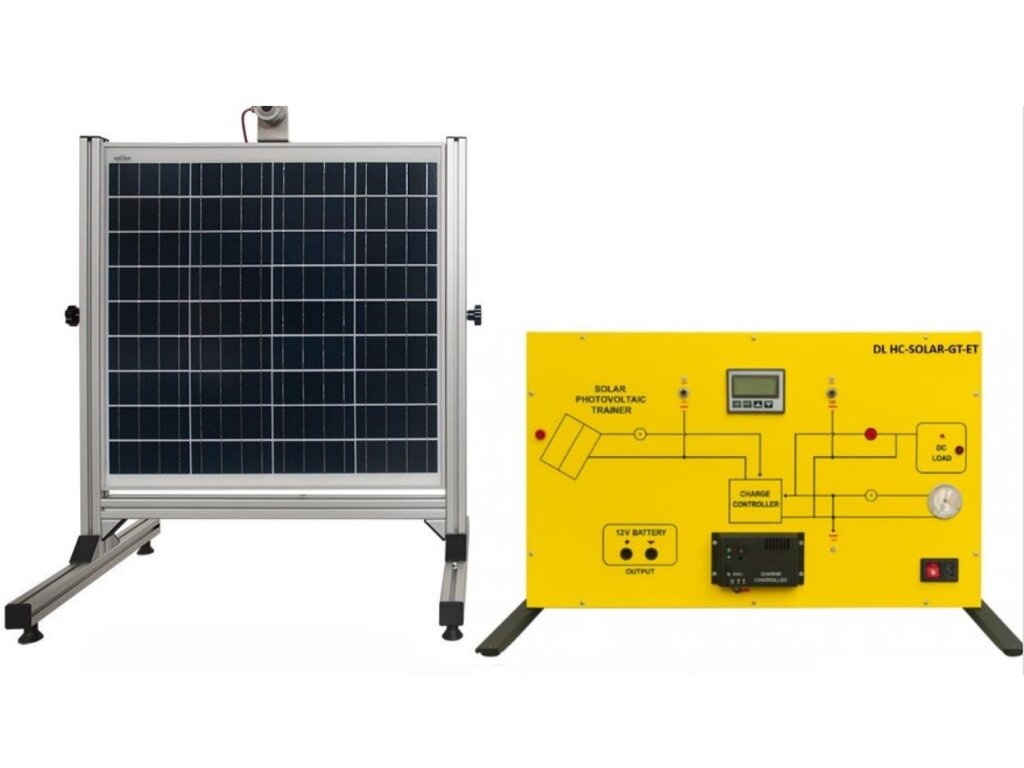

Photovoltaic System On-Grid (DL HC-SOLAR-GT-ET)
PL-620676
The Photovoltaic System On-Grid is a streamlined training platform designed to show how solar energy can be directly fed into the public grid.
With its compact panel and integrated control interface, it offers students a clear, hands-on view of real grid-connected solar operation.
Ideal for modern learning environments, it provides an intuitive way to understand solar generation, grid interaction, and the behavior of DC/AC conversion in practical scenarios.
The EasyTech – Renewable Energies product line is designed as an entry-level solution that allows students, technicians, and new users to explore energy generation and management technologies in a practical, accessible, and safe way, all integrated into compact, didactic platforms built for progressive learning. Each EasyTech product line is engineered to provide an intuitive, modular, and flexible experience, helping users understand the essential principles and preparing them to advance toward more complex systems.
- Silicon cell photovoltaic panel
- Adjustable tilt tabletop aluminum frame
- 80 W photovoltaic panel
- Tabletop control panel
- Grid tie power inverter
- Rated AC Output Power: 150 W
- AC Output Voltage: 230 V
- AC Output Frequency: 50 Hz
- DC Input Voltage Range: 10.8 ÷ 30V
- Output Current Waveform: Pure Sinewave
- Protection: Over Current, Over Temperature, Reverse Polarity, Anti-Island
- Electric load: 230Vac lamp
- Socket for output
- Multifunction instrument, microprocessor-based
- Indoor Lighting Device
- Components of a grid connected solar system for electricity production.
- Effect of solar radiation on the panel output voltage.
- Effects of shading on a real solar installation.
- Photovoltaic panel energy conversion efficiency.
- Interconnection of solar energy to the public grid.
- Operation and efficiency of a DC/AC inverter.
Technical Specifications - System configuration: grid-connected.
Training Program
