PL-564191
Reviews
Not reviewed yet
Producer
Content languages
English , Italian , Spanish , French
Certification labels
CE
Warranty
12
Producer product code
DL-SUNWIND-AT

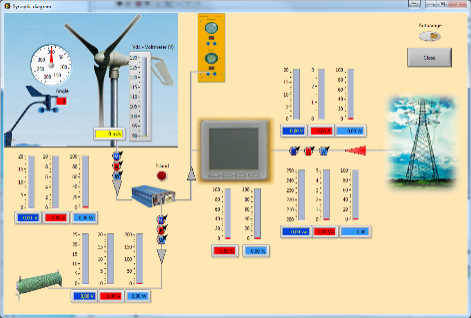

Solar PV Wind Energy

Modular trainer for the theoretical and practical study of the electrical installations with photovoltaic solar energy and wind energy.

With the solar/wind advanced trainer it is possible to perform experiments to determine the characteristics of a wind generator and a photovoltaic panel, study their off-grid operation with a battery charge regulator and their on-grid operation with the connection to the mains network. The complete system is supplied with a sunlight simulation module for indoor use.



TRAINING OBJECTIVES

Study of wind turbine:

  • Identification of wind turbine components
  • Operating the Wind Turbine Breaker
  • Calculating wind power
  • Measuring Wind turbine electrical power
  • Study of wind turbine with load.

Study of off-grid wind system:

  • Dimensioning of an off-grid wind system.
  • Battery regulating and charging
  • Supplying DC load with wind power stored in a battery
  • Supplying AC load with wind power and a battery.
  • Calculating the system autonomy with different loads

Study of on-grid wind system:

  • Measuring the electricity produced by the wind generator, delivered/taken from the mains grid, and the loading of AC lamps.
  • Calculating the efficiency of the complete on-grid wind energy system.
  • Investigating the response of a wind system to a mains failure
  • Energy balance.
  • Measuring solar radiation: Changing the inclination and azimuth of the solar panel
  • Investigating the PV module response to shadow formation
  • Recording the characteristics of the solar modules: Solar Panel Voltage-Irradiation Curve, Solar Panel Current-Irradiation Curve (calculating the inner resistance of the solar panel), Obtaining the solar panel current-voltage curve, Obtaining the solar panel current-power curve, Measurement of the voltage and current of the photovoltaic module with overload
  • Off grid system: Measuring the generated power of a PV system and battery charging
  • Off grid system: Using Solar Panel and Battery to supply a DC Load
  • Off grid system: Design and testing of a standalone PV system in direct storage operation and 230V AC On grid system: Measuring the electricity delivered to the mains grid
  • On grid system: Measuring the electricity produced by the solar panel, delivered/taken from the mains grid, and the loading of AC lamps
  • On grid system: Determining the efficiency of the grid connected inverter
  • On grid system: Investigating the response of a PV system to a mains failure

TECHNICAL SPECIFICATIONS

  • Three phase rectifier bridge module
  • DC load module. It includes a 20W dichroic lamp and 3W LED lamps, with independent switches.
  • Load management modules with three independent single-phase outputs for the dynamic study of different load types
  • Network monitor module used to measure electrical parameters in a single phase circuit
  • Circuit breaker module
  • Fixed single phase power source rated at mains voltage with auxiliary 12 Vdc fixed regulated voltage output to power measurement modules
  • 100Ah battery with battery protection module
  • Motor/generator group for the simulation of a wind turbine. Includes a three-phase permanent magnet generator of aprox. 400w.
  • Three-phase inverter for asynchronous induction motor drive and speed control. Rated power: 1.5 kW
  • Off-grid inverter module, with pure sine wave output at mains voltage.
  • Wind turbine charge controller with brake system.
  • Multifunction measurement module for wind applications: It includes four separate instruments to measure all fundamental parameters for the study of a wind-system.
  • Electronic charge regulation module, with LCD display, MPPT tracking and energy monitor.
  • Active DC load used in the renewable energies laboratories configurable as constant resistance or constant current.
  • Inclinable photovoltaic panel, 90W, 12V, complete with a cell for measuring the solar irradiation and a temperature sensor.
  • A Grid-tie inverter with output at mains voltage, 12V, 300W.
  • Multifunction measurement module: solar irradiation (up to 1000 W/m2), solar panel temperature (up to 400°C), 2 DC power meters (65Vdc, 20Adc, 1000W) and 1 AC power meter (512Vac, 20Aac, 1000W).
  • Off-grid inverter module, with sinusoidal output at mains voltage. Average power: 300 W.
  • Sun simulator consisting of halogen lamps to provide energy to the photovoltaic module for indoor use
  • Three level frame

Voltage availability
100-127V, 220-240V
Production lead time
90 days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
No
