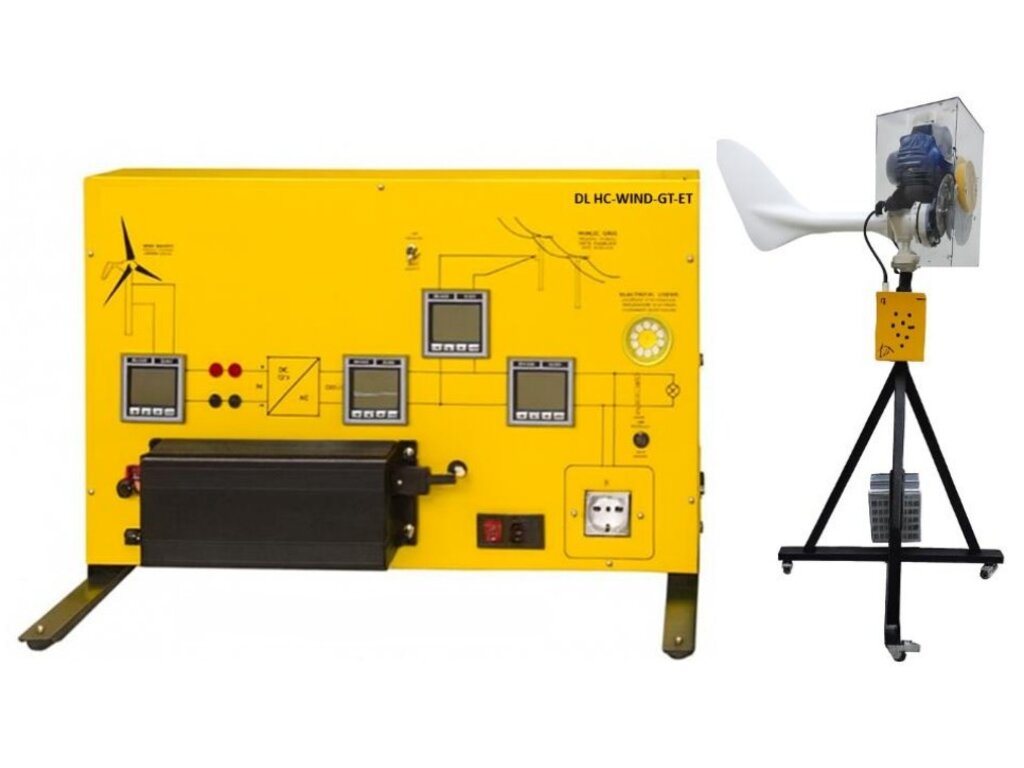

Wind Power Plant Trainer On-Grid (DL HC-WIND-GT-ET)
PL-834309
The Wind Power Plant Trainer On-Grid provides a clear and practical way to understand how wind energy can be fed directly into the public grid. With its horizontal-axis generator, grid-tie inverter, and integrated control interface, it allows students to observe real grid-connected wind behavior in a hands-on setting. Designed for educational environments, it offers an intuitive introduction to renewable generation and the fundamentals of AC power conversion.
The EasyTech – Renewable Energies product line is designed as an entry-level solution that allows students, technicians, and new users to explore energy generation and management technologies in a practical, accessible, and safe way, all integrated into compact, didactic platforms built for progressive learning. Each EasyTech product line is engineered to provide an intuitive, modular, and flexible experience, helping users understand the essential principles and preparing them to advance toward more complex systems.
- Technical Specifications - System configuration: Grid-connected.
- Horizontal axis wind power generator
- Rated power: 100W
- Rated voltage: 12Vdc
- Generator: Three phase AC permanent magnet synchronous generator
- Simulated wind speed adjustable module
- Tabletop control panel
- Grid tie power inverter
- Rated AC Output Power: 150 W
- AC Output Voltage: 230 V
- AC Output Frequency: 50 Hz
- DC Input Voltage Range: 10.8 ÷ 30V
- Output Current Waveform: Pure Sinewave
- Protection: Over Current, Over Temperature, Reverse Polarity, Anti-Island
- Electric load: 230 Vac lamp
- Socket for output
- Multifunction instrument, microprocessor-based
- Training Program
- The combined on-grid wind system for electricity production.
- Effect of the wind speed on the generator output voltage.
- Wind generator energy conversion efficiency.
- Operation and efficiency of a DC/AC inverter.
