Computer Controlled Focusing Solar Energy Collector
Vendor
Edquip Product Code

PL-788682

Quality Certification
UL, CE
Warranty
60 months
Student product ratio
1 - 40
Production leadtime
90 days
Content languages
English, French, Spanish
Taining types
In person, Live online, Webinars, Documentation, Video
X.X (product not reviewed yet)
Write review

The Computer Controlled Focusing Solar Energy Collector (ECESC) demonstrates the fundamental principles of a parabolic trough system for solar energy collection.

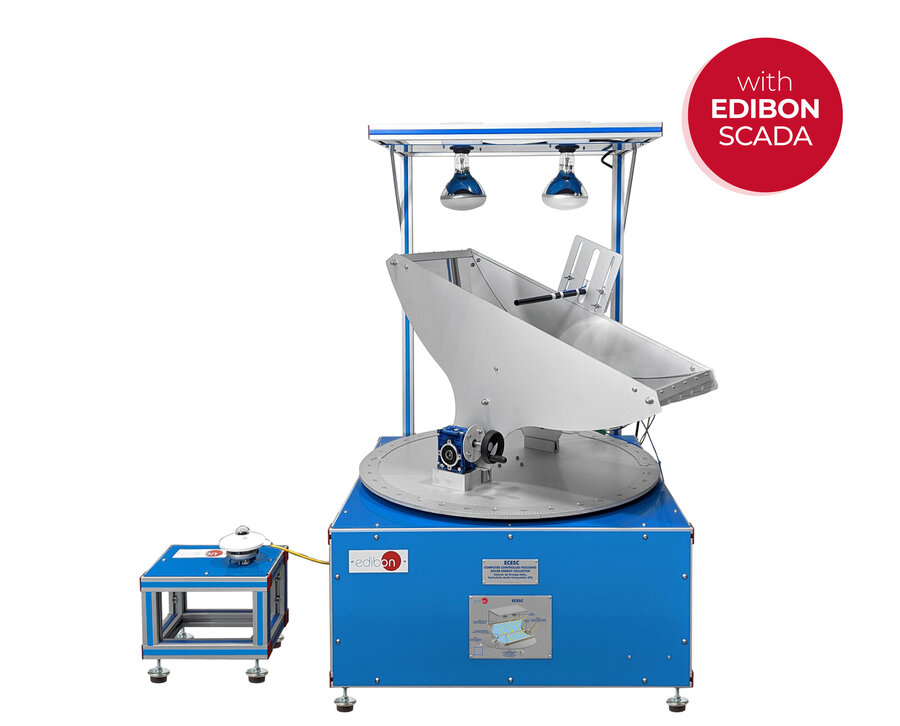

This unit is equipped with a highly polished stainless steel parabolic reflector mounted on a mobile base. It can be easily adjusted both horizontally and vertically to focus solar radiation on the energy collector from different angles. The reflector is fitted with a pyranometer to accurately measure incident solar radiation.

The system includes five interchangeable energy collectors of varying sizes, enabling the analysis of different concentration ratios. One collector features a special black coating to evaluate its performance, while each collector is equipped with a “J” type temperature sensor for precise temperature measurement. Additionally, an insulating glass collector with vacuum coating is provided to study the benefits of a shielded collector.

This computer-controlled solar collector unit is fully integrated with the EDIBON Computer Control System (SCADA), which includes: the unit itself, a Control Interface Box, a Data Acquisition Board, and advanced software packages for computer control, data acquisition, and data management, allowing seamless monitoring and control of all process parameters.

  1. ECESC. Unit:
  • Bench-top unit.
  • Anodized aluminum frame and panels made of painted steel.
  • Main metallic elements made of stainless steel.
  • Diagram in the front panel with distribution of the elements similar to the real one.
  • Parabolic reflector made of polished stainless steel supported on a mobile base by bearings on a movable base with 360° rotation.
  • Rotation angle sensor to know the position of the cylindrical collector.
  • Six solar collectors:
  • Five copper cylinders of different size to study different concentration ratios:
  • Cylinder of 28 mm.
  • Cylinder of 22 mm.
  • Cylinder of 15 mm.
  • Cylinder of 10 mm.
  • Cylinder with black coating of 15 mm.
  • Insulating glass cylinder to study the effect of a shielded collector.
  • Each one includes a “J” type temperature sensor to measure the temperature of the collector
  • Two lamps to simulate solar radation with adjustable solar power.
  • “J” type temperature sensor to measure ambient temperature.
  • Solar radiation sensor (pyranometer) to measure the incident solar radiation.

The complete unit includes as well:

  • Advanced Real-Time SCADA.
  • Open Control + Multicontrol + Real-Time Control.
  • Specialized EDIBON Control Software based on LabVIEW.
  • National Instruments Data Acquisition board.
  • Calibration exercises, which are included, teach the user how to calibrate a sensor and the importance of checking the accuracy of the sensors before taking measurements.
  • Projector and/or electronic whiteboard compatibility allows the unit to be explained and demonstrated to an entire class at one time.
  • Capable of doing applied research, real industrial simulation, training courses, etc.
  • Remote operation and control by the user and remote control for EDIBON technical support, are always included.
  • Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic and Software).
  • Designed and manufactured under several quality standards.
  • Optional ICAI software to create, edit and carry out practical exercises, tests, exams, calculations, etc. Apart from monitoring user’s knowledge and progress reached.
  • This unit has been designed for future expansion and integration. A common expansion is the EDIBON Scada-Net (ESN) System which enables multiple students to simultaneously operate many units in a network.
  1. ECESC/CIB. Control Interface Box.
  2. ECESC/CCSOF. Computer Control + Data Acquisition + Data Management Software.
  3. Cables and Accessories, for normal operation.
  4. Manuals: This unit is supplied with 8 manuals. Required services, Assembly and Installation, Interface and Control software, Starting-up, Safety, Maintenance, Calibration and Practices manuals.

EXERCISES AND PRACTICAL POSSIBILITIES TO BE DONE WITH THE MAIN ITEMS

  1. Operation of a cylindrical solar collector.
  2. Study of different energy concentration levels depending on the size of the collector.
  3. Comparison of the energy concentration levels of an unshielded cylinder and a shielded cylinder.
  4. Measurement of maximum temperatures reached by the energy collectors.
  5. Optimization and adjustment of a parabolic trough to obtain high concentration levels.

What is this?

These percentage scores are an average of 0 user reviews. To get more into detail, see each review and comments as per below

If you have used this product, support the community by submitting your review

Power requirements
1 phase, 110 VAC – 127 VAC/60 Hz, 1 phase, 200 VAC – 240 VAC/50 Hz
Other requirements
Computer
Warranty
60 months
HS code
Equipment dimensions (L/W/H)
Unit: 850 x 750 x 1000 mm approx. (33.46 x 29.52 x 39.36 inches approx.) Control-Interface Box: 490 x 330 x 310 mm approx. (19.29 x 12.99 x 12.2 inches approx.) cm
Equipment weight
50 Kg approx. Kg
Production lead time
90 days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
Yes
