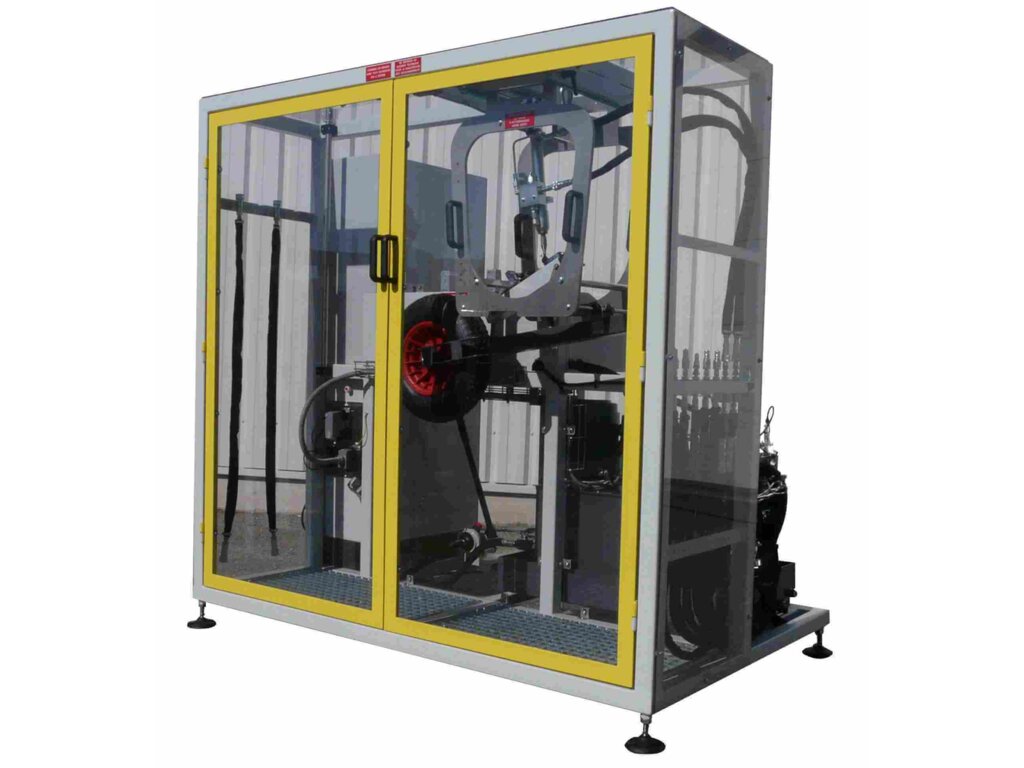

Aeronautical hydraulic test bench

Aeronautical hydraulic test bench

Topic coverage:

Hydraulic unit (Constant flow pump, Accumulator, Hand operated pump)

Hydraulic actuators (Double acting cylinder, Servo-cylinder, Hydraulic motor)

Hydraulic distribution (Pressure and flow limiters, 2/2 and 4/3 distributors, servo-distributor…)

Sensors (Pressure, Temperature)

Training activities:

Hydraulic connections, test on hydraulic hose and cylinders

Operating hydraulic parts (Landing gear, flap, aileron) with kinematics identical to real ones

Hydraulic measurements (Temperature, Flow, Pressure)

Hydraulic maintenance (Filter replacement)

Simulation of hydraulic failure (Main circuit, emergency circuit, accumulator, hand operated pump)

Product advantages:

Study of a realistic hydraulic system (Redundancy…)

3 different operating parts (Landing gear, Flap, Aileron)

Reference numbers:

HA10: Hydraulic and aeronautical test bench (with Cylinder test sub-system only)

HA11: Landing gear sub-system with On/Off cylinder

HA12: Aileron sub-system with servo-cylinder

HA13: Flap sub-system with hydraulic motor
