PL-892969
Reviews
Not reviewed yet
Producer
Content languages
English
Certification labels
Warranty
24
Producer product code
ELPT - Advanced
Pneumatics

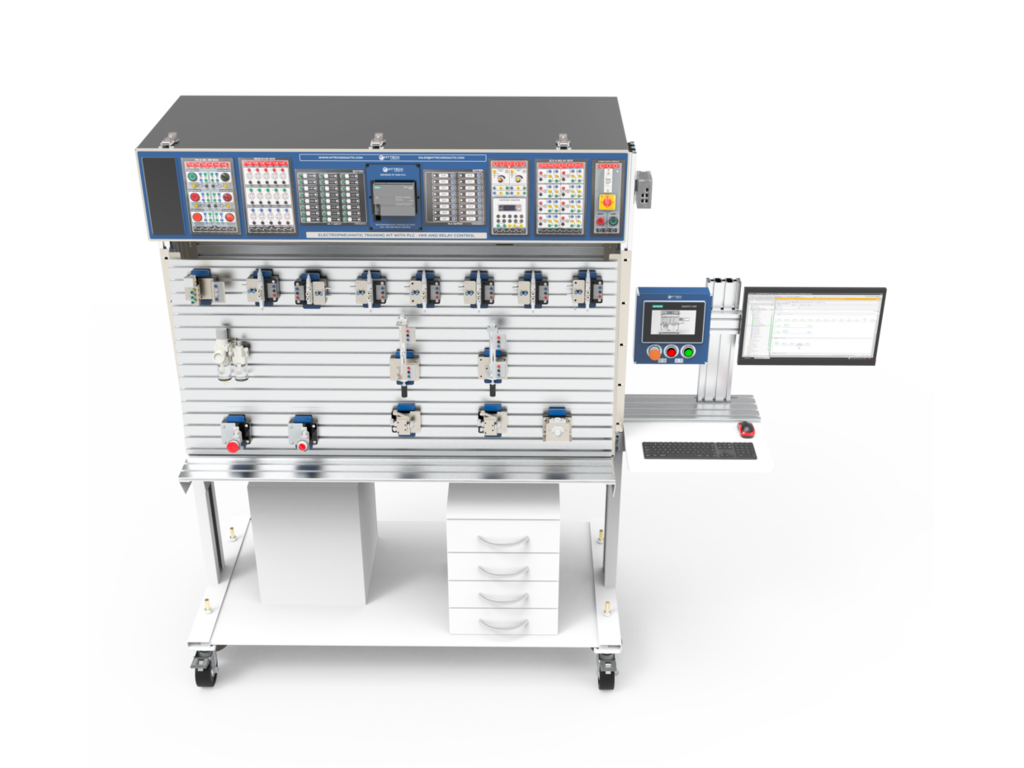

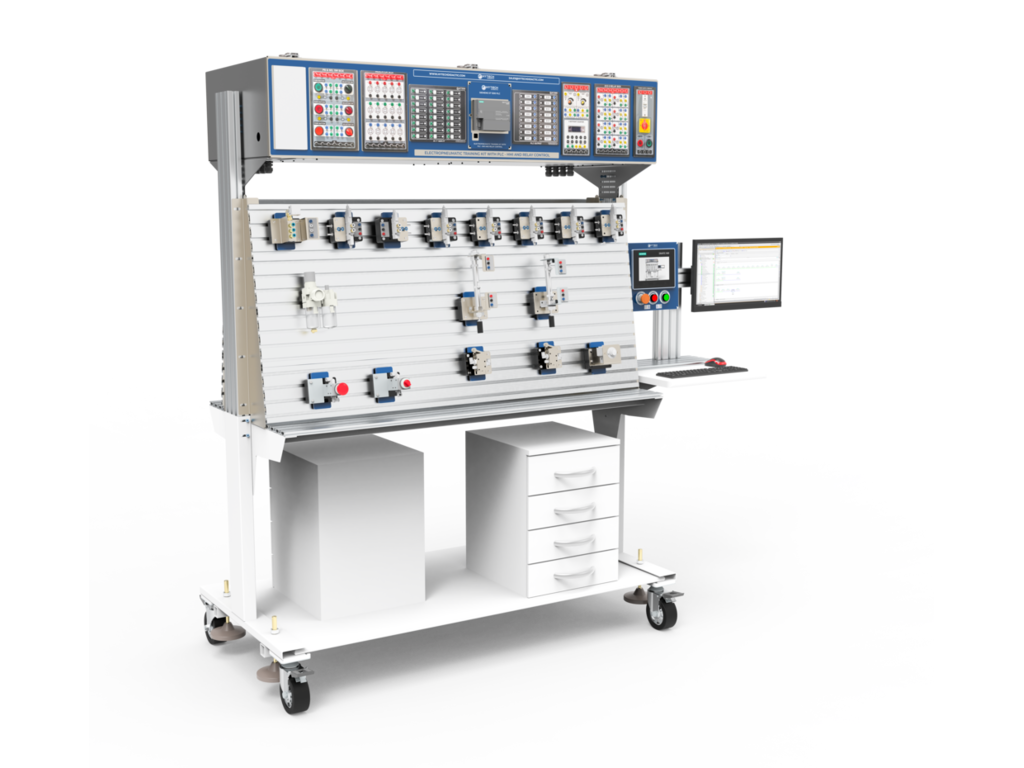

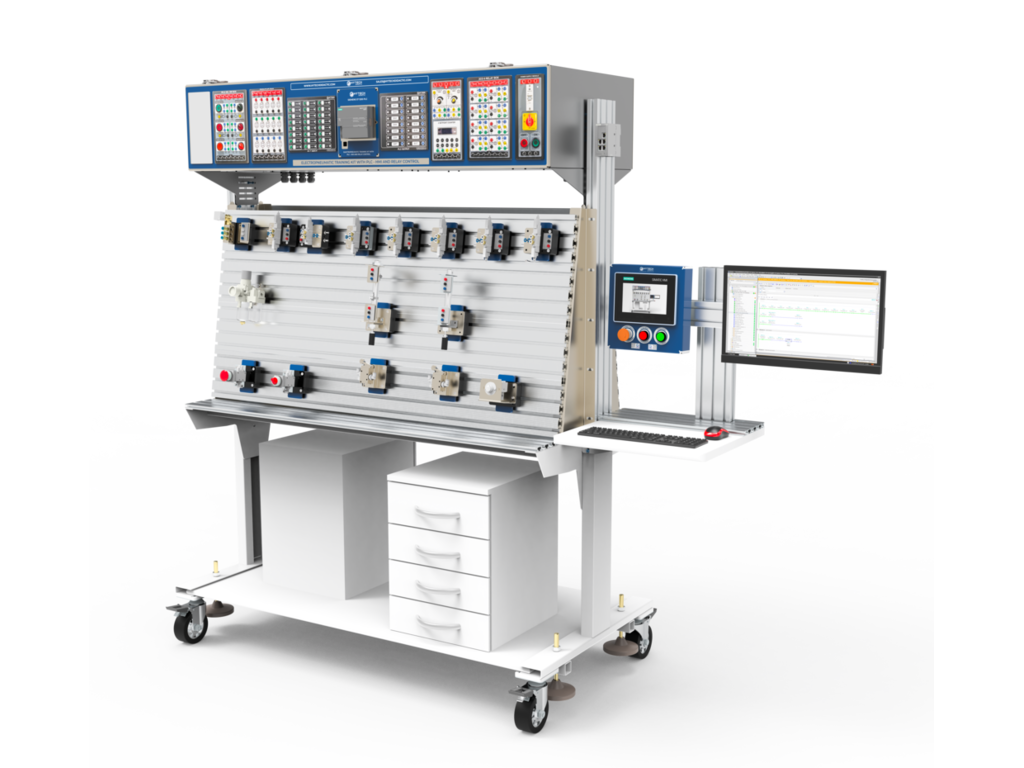

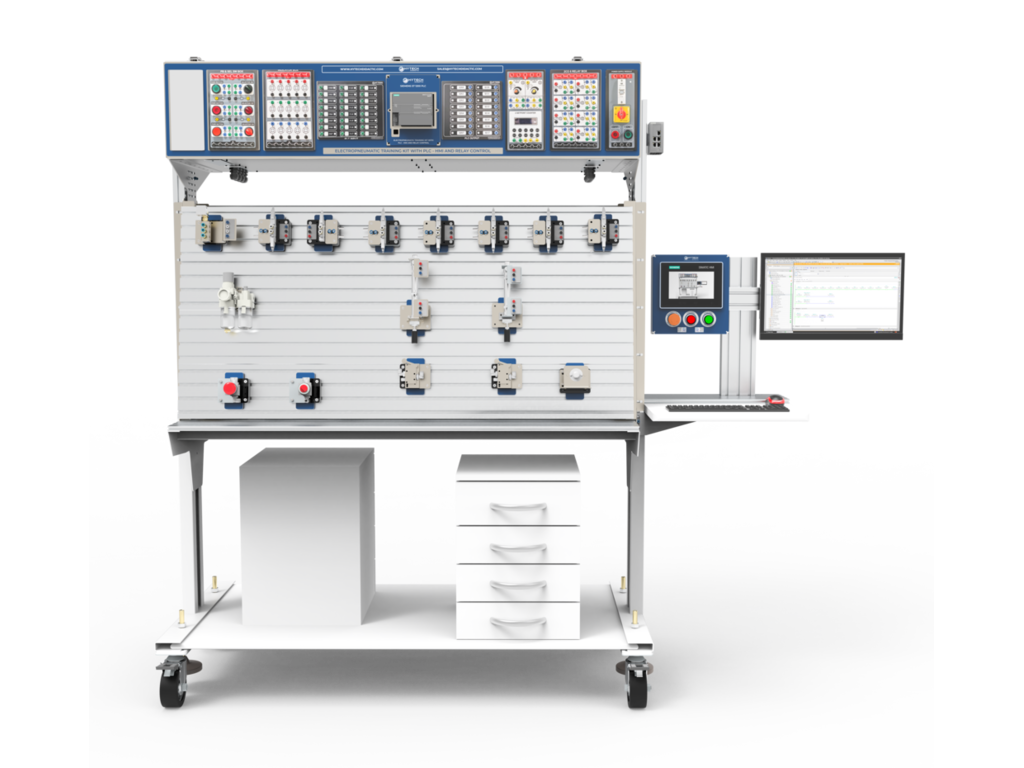

Hytech Didactics Electropneumatic training system is computer controlled PLC based pneumatic training solution. The training system is dual faced system made of industrial grade heavy duty aluminum extrusions. Castor wheels with rigid mounting provision are provided. Top, bottom and 4 drawer pedestal in industrial MDF are provided for convenient operation and storage of items. All components are provided with a plate engraved with the symbol of the pneumatic component and easy mounting arrangement. The name along with a symbol of various pneumatic components makes it easier for students to design and understand various pneumatic circuits. PLC Input and out modules are provided on the control panel to which the inputs and outputs of PLC are hard wired. Field input and field output modules are hardwired with the field components such as solenoid valves and reed switches through industrial sensor terminals. Industrial connector based wiring makes it easier for users to understand and maintain the training system. Key Features • Dual Face (Industrial Aluminum Profile based) training kit • Easy assembly and disassembly of pneumatic components on training kit • PLC Input and Output modules • Field Input and Output modules • Easy connection of field devices such as solenoid valves and reed switches with PLC I/O with the help of patch cords • PLC Operated training kit (Siemens S7 200 Smart / Siemens S7 1200) • Computer Controlled Training Kit: Operation of experiments directly from design and simulation software (IRAI - Automgen) Participants can connect desired field outputs such as solenoid valves to specified PLC outputs with the help of PLC output module and Field output module. This makes it easier for participants to carry out the wiring without any risk of damaging the expensive PLC. The Hytech Electropneumatic Training System is designed to provide training on basic pneumatic valves as well as on advance elctropneumatic valves which are operated directly from PLC. All necessary licenses are provided along with the workstation in the training system. Major Components in Hytech Electropneumatic Training Kit • Basic Pneumatic Valves • Advanced Pneumatic Valves • Advanced Electropneumatic valves and components • PLC - Siemens S7 200 Smart ST 40 • Workstation with necessary operating Softwares and licenses • IRAI Automgen software • Industrial Sensor Terminals • Field and PLC Input / Output Modules

Module No Description Qty Make 1 Basic Pneumatic Module 1 1.1 FRL Unit with Pressure Gauge 1 SMC / Festo 1.2 Junction Box with 8 ports 2 SMC / Festo 1.3 Isolation box with 8 ports 1 SMC / Festo 1.4 Three Way Two Position Hand Slide Valve 1 SMC / Festo 1.5 Two way Flow control valve 4 SMC / Festo 1.6 Single acting cylinder (Stroke: 50 mm, with One Way Flow Control Valve) 1 SMC / Festo 1.7 Double acting cylinder (Stroke: 200mm, with One Way Flow Control Valve) 2 SMC / Festo 1.8 PU Tube Dia 6mm - Blue Color 10 Meter NA 1.9 PU Tube Dia 6mm - Red Color 10 Meter NA 1.1 PU Tube Dia 6mm - Black Color 10 Meter NA 1.11 Blanking Plug Dia 6 12 NA 1.12 Union Tee Dia 6mm 5 NA 1.13 Union Y Dia 6mm 5 NA 1.14 Tube Cutter 1 NA 2 Basic Pneumatic Module 2 2.1 Two Pressure Valve 2 SMC / Festo 2.2 Shuttle Valve 2 SMC / Festo 2.3 Quick Exhaust Valve 1 SMC / Festo 2.4 Three Way Two Position Way Push Button (Three Port) Valve 2 SMC / Festo 2.5 Three Way Two Position Knob Operated Direction Control Valve (NC Type) 1 SMC / Festo 2.6 Three Way Two Position Roller Operated Direction Control Valve (NC Type) 2 SMC / Festo 2.7 Five Way Two Position Mushroom Head Switch Operated Direction Control Valve 1 SMC / Festo 2.8 Five Way Two Position Lever Operated Direction Control Valve 1 SMC / Festo 2.9 Five Way Two Position Lever Operated Direction Control Valve (Spring Return) 1 SMC / Festo 2.10 Five Way Three Position Lever Operated Direction Control Valve 1 SMC / Festo 3 Basic Pneumatic Module 3 3.1 Three Way Two Position Pilot Operated Direction Control Valve (NC Type) 1 SMC / Festo 3.2 Five Way Two Position Single Pilot Direction Control Valve 1 SMC / Festo 3.3 Five Way Two Position Double Pilot Direction Control Valve 4 SMC / Festo 3.4 Five Way Three Position Double Pilot Direction Control Valve 1 SMC / Festo 3.5 Three Way Two Position idle return Valve 1 SMC / Festo 4 Basic Pneumatic Module 4 4.1 Pneumatic Motor 1 Reputed Make 4.2 Pressure Regulator 1 SMC / Festo 4.3 Vacuum generator 1 SMC / Festo 4.4 Vacuum Cup 1 SMC / Festo 4.5 Vacuum Generator based pick and drop assembly module 1 NA 4.6 Three Way Two Position Time Delay Valve 1 SMC / Festo 5 Circuit Design and Simulation Software 5.1 Automgen (IRAI France) - Pneumatic Circuit design and simulation software (Perpetual) 1 IRAI - France 6 Manuals for Basic Pneumatics 6.1 Operation Manual (Basic Pneumatics) 1 NA 6.2 Experimentation Manual (Basic Pneumatics) 1 NA 6.3 Pneumatics Text Book (Basic Pneumatics) 1 NA 7 Advance Pneumatics (Electropneumatic) Module 1 7.1 Three Way Two Position Solenoid Operated Direction Control Valve (NC Type) 1 SMC / Festo 7.2 Five Way Two Position Single Solenoid Direction Control Valve 1 SMC / Festo 7.3 Five Way Two Position Double Solenoid Direction Control Valve 3 SMC / Festo 7.4 Five Way Three Position Double Solenoid Direction Control Valve 1 SMC / Festo 7.5 Magnetic Reed Switch with bracket for Cylinders 6 SMC / Festo 7.6 Digital Pressure Switch with Analog Output 1 SMC / Festo 8 Advance Pneumatics (Electropneumatic) Relay based operation module 8.1 2mm Patch cord connector set 1 set NA 8.2 Electrical Push button based power supply module 1 NA 8.3 Relay unit module (4 CO, 3Qty) 1 NA 9 Advance Pneumatics (Electropneumatic) PLC Based operation module 9.1 PLC with 24 inputs and 16 outpts 1 Siemens 9.2 Power supply and control panel for PLC 1 Reputed Make 9.3 Control panel box with mounting for Advance Electropneumatic Training Kit (1200 x 400 x 300mm) 1 NA 9.4 PLC Input module with input override switches (24 inputs) 1 HYTECH 9.5 Field input module (24 inputs) 1 HYTECH 9.6 PLC output module (24 outputs) 1 HYTECH 9.7 Field output module (24 outputs) 1 HYTECH 9.8 Remote operation unit with 2 selector switches, 2 push buttons and 2 mushroom head switches 1 NA 9.9 2mm Patch cord connector set 1 set NA 10 Workstation with Simulation software and licensed PLC software 10.1 Intel Mother board Computer with 21 inch LED Monitor (Acer / Dell) and bluetooth keyboard and mouse 1 ACER / DELL 10.2 IRAI Automgen software license (Perpetual) for pneumatic circuit design and simulation 1 IRAI - France 10.3 Necessary interface for direct operation of training kit from simulation software IRAI Automgen (Dynamic realtime simulation and operation) 1 HYTECH 10.4 Workstation operation unit with mounting facility 1 NA 11 Compressor 11.1 1HP, 50 Ltr capacity Twin cylinder Silent Compressor (Single Phase Supply) 1 Reputed Make 12 Trainer Kit Base and Structure (Basic) 12.1 Basic Pneumatic Trainer Base with Aluminum extrusion based work surface (Double Sided) of 950mm x 720mm. MDF based wooden base of 950mm x 800mm. MS based structure with castor wheels and load bearing capacity of 250 KG 1 HYTECH 13 Trainer Kit Base and Structure (Advance) 13.1 Advance Pneumatic Trainer Base with Aluminum extrusion based work surface (Double Sided) of 1200mm x 900mm. MDF based wooden base of 1200mm x 800mm. MS based structure with castor wheels and load bearing capacity of 300 KG 1 HYTECH 14 Automation Module - Color based sorting with conveyor 14.1 Rotary Motor with Sorting Arm (16mm Bore) 1 Festo 14.2 Rejection Bin 1 NA 14.3 Guided Cylinder 1 Festo 14.4 Vacuum Generator with Vacuum Cup 1 Festo 14.5 Rotary Motor (20mm Bore) 1 Festo 14.6 Color Sensor 1 Takex 14.7 Guided Cylinder for job loading (60mm) - Auto Loader 1 Festo 14.8 Photo Sensor for job loading 1 Omron 14.9 Photo Sensor for job unloading 1 Omron 14.10 Conveyor 70 x 500mm 1 Hytech 14.11 AC Motor for Conveyor Drive with Gearbox 1 Panasonic 14.12 Sorting Bin (Vertical) 1 NA 15 Manuals for Advance(Electro) Pneumatics 15.1 Operation Manual (Basic Pneumatics) 1 NA 15.2 Experimentation Manual (Basic Pneumatics) 1 NA 15.3 Pneumatics Text Book (Basic Pneumatics) 1 NA

Voltage availability
220-240V
Production lead time
40 days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
Yes
