PL-555319
Reviews
Not reviewed yet
Producer
Content languages
English
Certification labels
Warranty
12
Producer product code
AA800.000.01
PLC Process Control

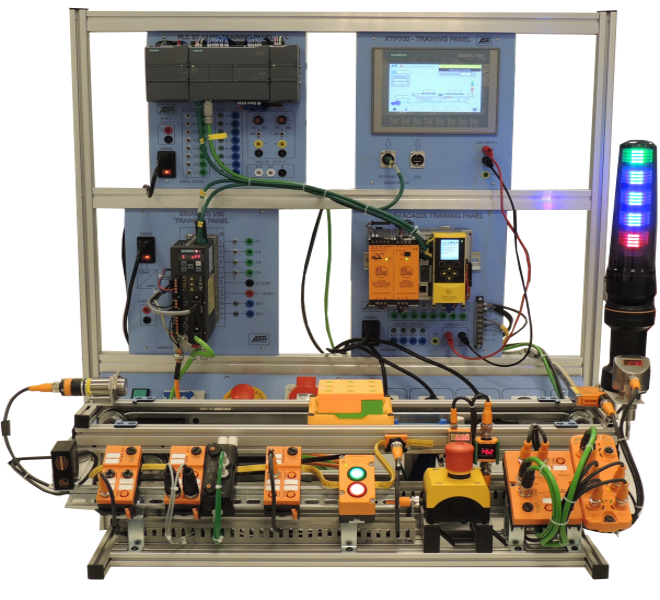

IFM "SENSORS & COMMUNICATIONS" TRAINING SYSTEM includes:


AA200.000.05 TABLE_TOP STAND with Supply Panel (850 x 760)mm

AA044.000.03 PLC S7-1200 Training Panel(CPU 1215C 8DI_8DO_2AI_2AO), SWITCH SCALANCE XB005

AA026.000.03  KTP700  HMI TRAINING PANEL

AA045.000.01 SINAMICS V90 TRAINING PANEL

AA060.000.02  IFM AS-i AC402S TRAINING PANEL

AA094.101.06  Conveyor Belt with SIMOTICS S-1FL6(servo)  V90

AA095.100.01 3D PIECES ( 1 set) //   AA059.000.09 AIR Compressor SUPERSILENT



IFM SENSORS SET:

Inductive sensor with IO-Link, Sensing range [mm]-5 NO;

5-segment light tower IO-Link programmable;

IO-Link memory plug;

Evaluation system and display for analogue signals 4-20 MA;

RFID evaluation unit with IO-Link, M12 connectors;

RFID tag 125 kHz - Q5  Ø 30 / L = 2.2;

RFID read/write antenna with AS-Interface;

RFID tag 125 KHz - Hitag S Ø 30 / L = 2,5 mm;

AS-Interface flat cable connnector M12;

Illuminated E-STOP with integrated AS-i:

AS-Interface illuminated pushbutton module with 2 buttons;

AS-Interface Airbox 4 Digital Inputs and 2 Pneumatic Outputs;

Pressure sensor for pneumatics IO-Link, Measuring range-> -1...10 bar;

Temperature transmitter with display IO-Link, Measuring range->-50...150 °C;

RFID read/write antenna IO-Link, Distance to the ID tag [mm] ≤ 55;

IO-Link master with PROFINET interface with 8 configurable I/O's;

AS-Interface ClassicLine Module with 2 IO-LINK PORTS;

Photoelectric distance sensor with AS-Interface,Measuring range [m]->0.03...2;

AS-Interface ClassicLine Module with M12 connectors for sensors and actuators for 2 DI and 2 DO;



SIZE (W x H x D): 910 x 800 x 730 mm

NET WEIGHT: 37.00 kg

THE PACKAGE ALSO INCLUDES: Power cables, User manual.

RECOMMENDED: Safety connection cables 4 mm

LICENSE Programming software



SIZE (W x H x D): 910 x 800 x 730 mm

NET WEIGHT: 37.00 kg

THE PACKAGE ALSO INCLUDES: Power cables, User manual.

RECOMMENDED: Safety connection cables 4 mm

LICENSE Programming software

Voltage availability
220-240V
Production lead time
days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
No
