SIEMENS PLC Application (AE-PLC-SIE)
PL-495696

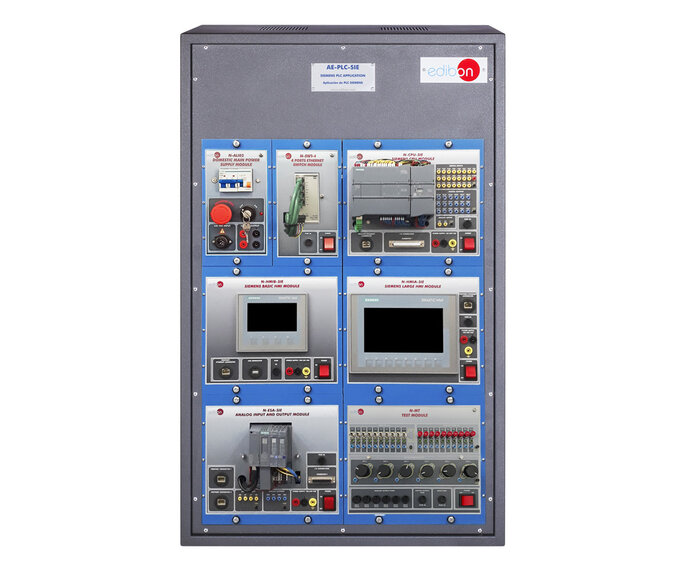

The SIEMENS PLC Application, “AE-PLC-SIE”, is a modular PLC training unit developed by EDIBON, which incorporates one of the latest SIEMENS PLC systems. This application enables users to acquire knowledge in PLC logic programming, explore various PLC programming languages, and understand PLC-to-PC communication protocols.
The “AE-PLC-SIE” includes a comprehensive set of practical exercises designed for students with no prior experience, allowing them to become familiar with the operation and functionality of PLC systems. The unit can be used independently for PLC training or in combination with EDIBON-compatible applications to explore real-world automation scenarios.
The system is based on a modular structure. The SIEMENS PLC Base Unit, “AE-PLC-SIE-UB”, is the core of the application and always includes the power supply and PLC CPU module. Additionally, a wide range of optional expansion kits is available to complement the base unit. These kits add functionalities such as test modules, analog input/output signals, HMI devices, and internet connectivity for remote control and monitoring.
With these options, users can expand their training to cover HMI programming, analog signal testing, and web server application development, gaining hands-on experience in advanced industrial automation concepts.
The “AE-PLC-SIE-UB” base unit is essential for the operation of the “AE-PLC-SIE” system and provides the foundation for further expansions based on the specific training objectives.
- AE-PLC-SIE. Application:
The “AE-PLC-SIE-UB” base unit includes the following elements:
N-ALI02. Domestic Main Power Supply Module.
- Supply voltage (single-phase).
- ON / OFF removable key.
- Output voltage connections:
- Two single-phase: 230 VAC.
- Single-phase supply hose connecting plug.
- Differential magnetothermal 2 poles, 25 A, 30 mA CA 6 KA.
- Emergency stop push-button.
N-CPU-SIE. Siemens CPU Module.
- Supply voltage (single-phase).
- Overcurrent protection with fuse.
- PLC device, SIEMENS S7 - 1200:
- High processing capacity: 64 bit calculation.
- Program/data memory: 100 kB.
- Load memory: 4 MB expandable with a Siemens memory card.
- CPU processing times for bit operations: 0.085µs/instruction.
- Counting frequency: 100 kHz.
- Twenty-two digital inputs with voltage levels.
- Eighteen relay type digital outputs with voltage levels.
- Two analog inputs of 10 bits with voltage.
- Expansion module for extra digital inputs and outputs.
- Web server function:
- HTML web server included in the PLC.
- Compatible with most common search engines.
- Connector for the digital input and output signals.
- Connector to the Profinet/Ethernet switch module.
N-SWT-4. 4 Ports Ethernet Switch Module.
- Supply voltage (single-phase).
- Compact switch module: Four Ethernet ports.
- Protection fuse (at supply voltage height).
Required elements of the “AE-PLC-SIE-UB” base unit (Not included):
SIE-PLC-K1. SIEMENS PLC Kit 1.
N-MT. Test Module.
- Supply voltage (single-phase).
- Twenty digital signal generators:
- Ten toggle switches.
- Ten push-buttons.
- Each digital signal generator is linked to a green LED.
- Output voltage levels of 0 VDC and 24 VDC.
- Six analog signal generators:
- Six potentiometers.
- Protection fuses (at supply voltage height).
Additional recommended elements of the “AE-PLC-SIE-UB” base unit (Not included):
SIE-PLC-K2. SIEMENS PLC Kit 2.
N-ESA-SIE. SIEMENS Analog I/O Module.
- Supply voltage (single-phase): 230 VAC.
- Expansion unit for analog inputs:
- Input voltage range from -10 V to +10 V or 0/4 - 20 mA (configurable).
- Four analog inputs.
- Resolution: 13 bits
- Expansion unit for analog outputs:
- Output voltage range from -10 V to +10 V or 0/4 - 20 mA (configurable).
- Four analog outputs.
- Resolution: 13 bits
- Connector for the analog input and output signals.
- Connector to the Profinet/Ethernet switch module.
SIE-PLC-K3. SIEMENS PLC Kit 3.
N-HMIB-SIE. SIEMENS Small HMI Module.
- Supply voltage (single-phase): 230 VAC.
- HMI device:
- Touch screen.
- TFT screen of 65536 colors.
- Backlight: white LED.
- Connector for the Profinet/Ethernet switch module.
SIE-PLC-K4. SIEMENS PLC Kit 4.
N-HMIA-SIE. SIEMENS Large HMI Module.
- Supply voltage (single-phase)
- HMI device:
- Touch screen.
- TFT screen of 65536 colors.
- Backlight: white LED.
- Connector for the Profinet/Ethernet switch module.
SIE-PLC-K5. SIEMENS PLC Kit 5.
N-MOD. Modem Communication Module.
- Supply voltage (single-phase): 230 VAC.
- Router-switch Ethernet network.
- Wifi system to allow a wireless conexion of devices (smartphone, tablet or PC).
- Internet router with RJ-11 socket to connect the phone line.
- Conjunction of practical exercises to perform a web server application.
- Cables and Accessories, for normal operation.
- Manuals: This unit is supplied with manuals: Required services, Assembly and Installation, Control software, Starting-up, Safety, Maintenance and Practices manuals.
EXERCISES AND PRACTICAL POSSIBILITIES TO BE DONE WITH THE MAIN ITEMS
- Using variables.
- Using digital inputs I.
- Using digital inputs II.
- Testing digital inputs.
- Using digital outputs.
- Testing digital outputs.
- Using analog signals I (SIE-PLC-K1 and SIE-PLC-K2).
- Using analog signals II (SIE-PLC-K1 and SIE-PLC-K2).
- Square wave generator.
- HMI simple program (SIE-PLC-K3 or SIE-PLC-K4).
- Using digital outputs with HMI device I (SIE-PLC-K3 or SIEPLC-K4).
- Using digital outputs with HMI device II (SIE-PLC-K3 or SIEPLC-K4).
- Reading data from a register with the HMI device (SIE-PLC-K3 or SIE-PLC-K4).
- Writing data to a register with the HMI device (SIE-PLC-K3 or SIE-PLC-K4).
- Switching screens of the HMI device (SIE-PLC-K3 or SIEPLC-K4).
- Internet connection of the PLC unit (SIE-PLC-K5).
- Control digital inputs with a web server application (SIEPLC-K5).
- Control digital outputs with a web server application (SIEPLC-K5).
- Control analog inputs with a web server application (SIEPLC-K5).
- Control analog outputs with a web server application (SIEPLC-K5).
