PL-760304
Reviews
Not reviewed yet
Producer
Content languages
German , English
Certification labels
Warranty
24
Producer product code
mobile
Hydraulics

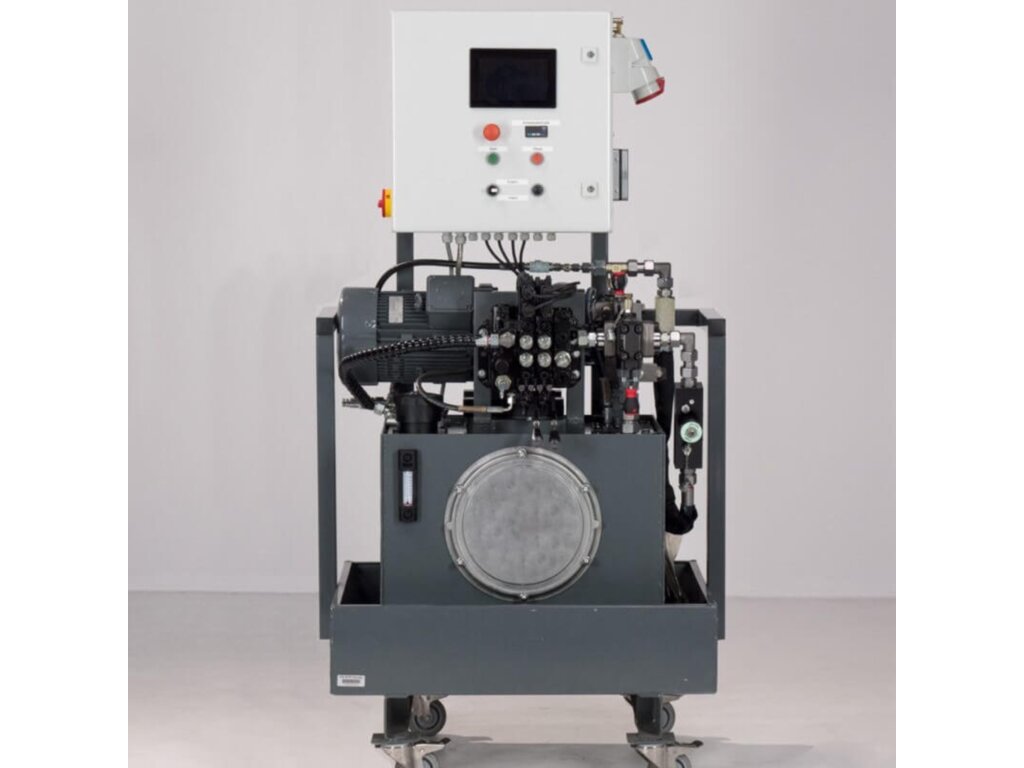

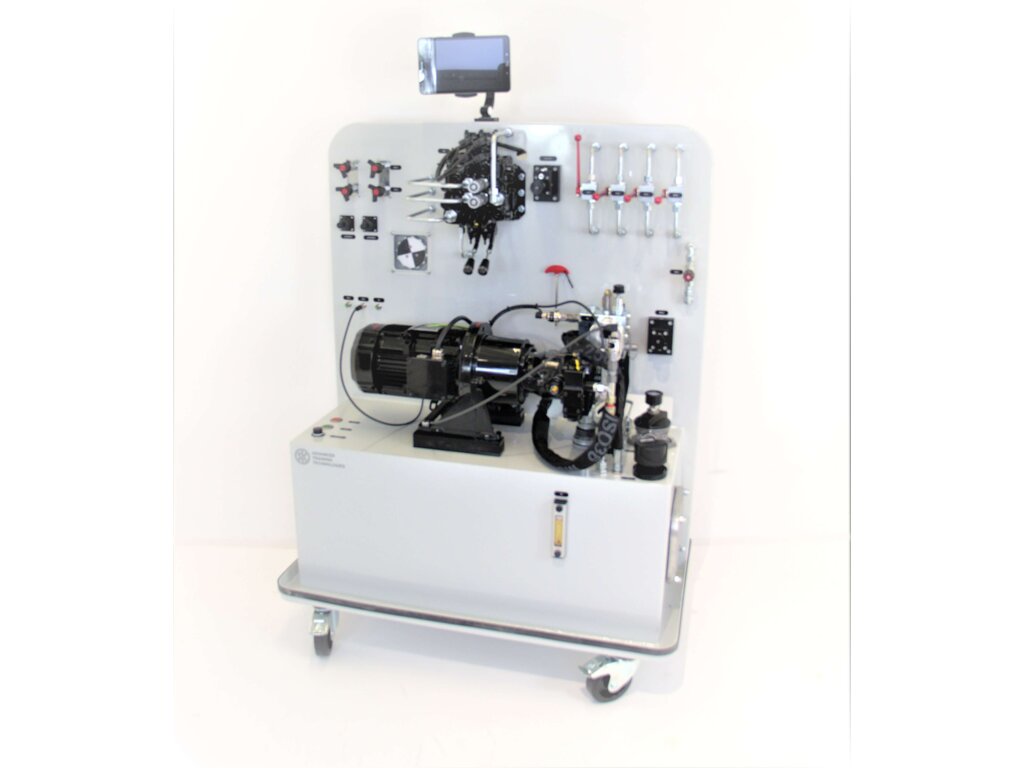

Application: For group lessons in the theory field and team work in the field of practice. Add-on module for the extension of the Hydrodidact Standard for training of mobile hydraulics (Load-Sensing; traction drive; Open-Center)



Highlights:

  • Mobile hydraulics for agricultural machinery, construction machinery and municipal vehicles
  • Simulation of a diesel engine
  • Simulation of all known mobile hydraulic drive concepts such as Open Center and throttle control
  • Pressure-regulated, power-regulated and load-sensing pump drives
  • Loadsensing control block with 2 sections (optionally with LUDV control block), with secondary pressure limitation and LS pressure limitation
  • Hand lever operation and electrical control with joystick and touch display
  • Volumetric flow measurement technology



Components:

Synchronously operated hydraulic pumps, pressure control, Power regulation, hydraulic cylinder, Position control, Force control, Air operated hydraulic pumps, PLC / PLC, Pneumatic valve terminals, Asynchronous electric motors, Frequency converter, bus system

Technical details:

  • Asynchronous motor speed- controlled (4kW)
  • Axial piston pump with pressure control; power control; Load- Sensing regulation
  • Load-Sensing control block with two sections (With manual operation and CAN BUS control) Joysticks and display
  • Hydraulic motor with load simulation

Voltage availability
Production lead time
90 days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
Yes
