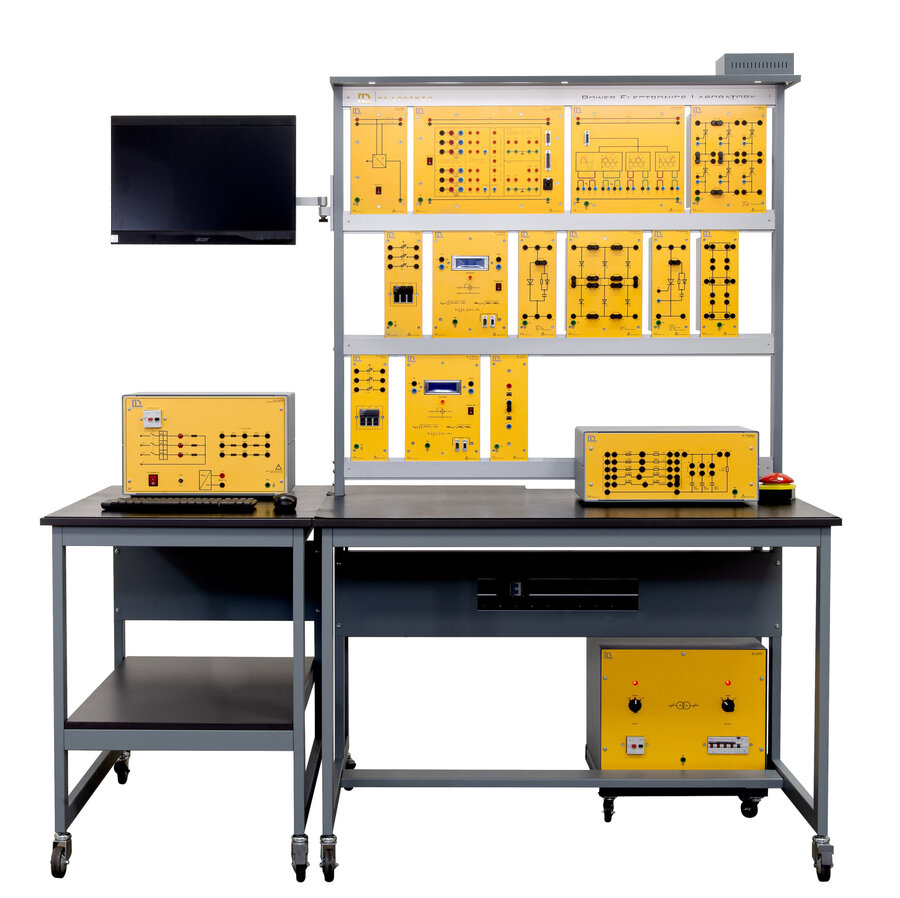

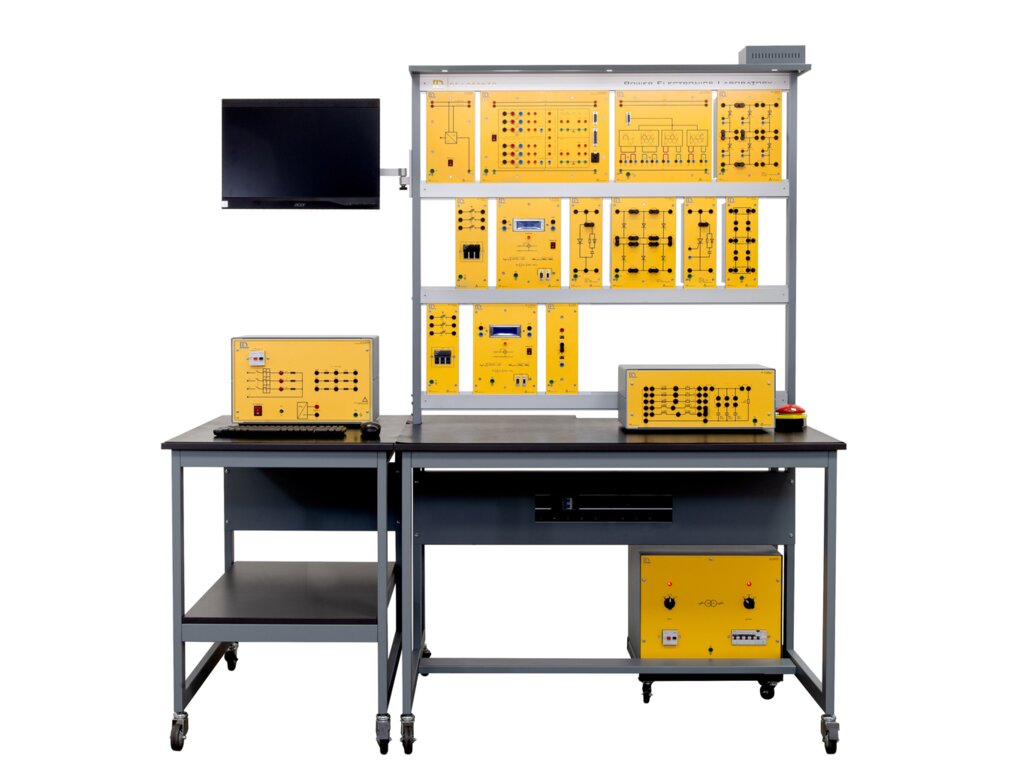

AC-DC Conversion (DL PEL201)
PL-152952
The DL PEL201 is a multipurpose bench to study the conversion from alternating current to direct current, using different configurations of non-controlled and controlled rectifiers, to later apply these concepts to drive AC and DC motor drives. The course is divided in two parts: the study of uncontrolled rectifiers using silicon diodes and the study of controlled rectifiers using Silicon Controlled Rectifiers (SCR). Its modular structure makes it easy to reconfigure the system to perform several experiments in various subjects such as uncontrolled diodes and static converter circuits, thyristors, single pulse/two-pulse midpoint converters, to name a few.
EXPERIMENTS:
DIODES AND UNCONTROLLED RECTIFIERS
- Silicon diode
- Uncontrolled single-phase half-wave rectifier
- Uncontrolled single-phase centre-tapped full-wave rectifier
- Uncontrolled single-phase bridge rectifier
- Uncontrolled three-phase half-wave rectifier
- Uncontrolled three-phase centre-tapped full-wave rectifier
- Uncontrolled three-phase bridge rectifier
SCR AND CONTROLLED RECTIFIERS
- SCR
- Controlled single-phase half-wave rectifier
- Controlled single-phase centre-tapped full-wave rectifier
- Half controlled single-phase bridge rectifiers
- Fully controlled single-phase bridge rectifier
- Controlled three-phase half-wave rectifier
- Controlled three-phase centre-tapped full-wave rectifier
- Dual 3-ph centre-tapped half-wave rectifier
- Half controlled three-phase bridge rectifier
- Fully controlled three-phase bridge rectifier
MODULES LIST DL PEL201
- DL 2106T01: Control module
- DL 2106T02: SCR driver
- DL 2106T11: Silicon diode
- DL 2106T12: Diode stack
- DL 2106T14: SCR
- DL 2106T15: SCR stack
- DL 2106T21: Fuse box
- DL 2106T25: 1shunts
- DL 2106PS: DC power supply
- DL 2106TPS: 3-ph power supply
- DL 2106RLC: RLC load
- DL 12B12: Battery
- DL 2109D33: True RMS meter
- DL T12090_SK: 120x90 working bench
- DL T06090: 60x90 working bench
- DL A120-3M: Frame with 3 levels, basic version
- DL SP-A120-LED: Upper base with LED strip, for DL A120-3M
- DL PCGRID: Computer All in one
- DL 2600TTI: Three-phase isolation transformer 3kVA
- TLDCA2.0: Kit of connecting leads
- DL 1196: Holder for leads
