DC-DC Conversion (DL PEL203)
PL-693907

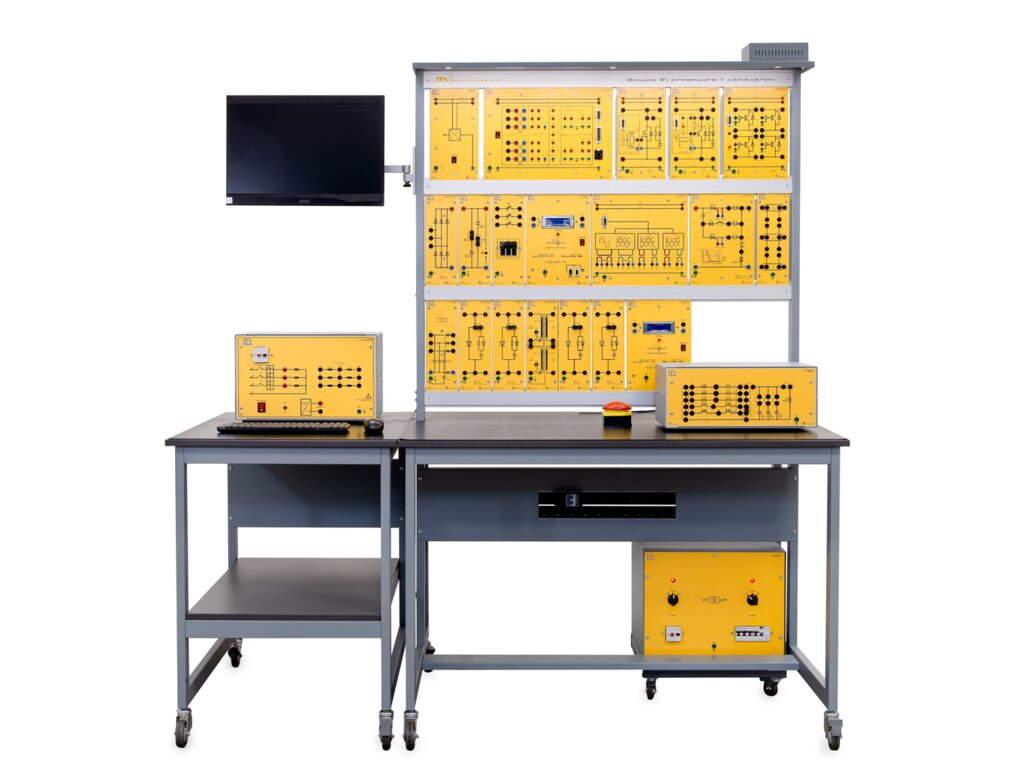

The DL PEL203 is a multipurpose bench to study the conversion from direct current to direct current, and its main fields of applications such as DC power supplies and DC motor drives. The course is divided into two sections. The first part covers choppers and studies the conversion from fixed DC input to a variable DC output directly with the use of SCR, MOSFET and IGBT. The second section studies switching mode power supplies and analyzes the properties of the PWM control with the use of circuits as flyback and forward converters. Its modular structure makes it easy to reconfigure the system to perform several experiments in various subjects such as step-up/step-down converters, speed control of a DC motor, asymmetric half-bridge forward converter, to name a few.
EXPERIMENTS:
CHOPPERS
- Switching devices (SCR with turn-off circuit, MOSFET, IGBT)
- Buck converter with SCR with turn-off circuit, PWM
- Buck converter with IGBT, PWM
- Buck converter with MOSFET, PWM
- Buck converter with MOSFET, PFM
- Buck converter with MOSFET, TPC
- Boost converter with IGBT, PWM
- Boost converter with IGBT, TPC
- Inverting converter with IGBT, PWM
ISOLATED SWITCHING MODE POWER SUPPLY
- Flyback converter with IGBT, PWM
- Forward converter with IGBT, PWM
- Asymmetric half-bridge forward converter with IGBT, PWM
MODULES LIST DL PEL203
- DL 2106T01: Control module,
- DL 2106T02: SCR driver,
- DL 2106T03: MOSFET,
- DL 2106T04; IGBT,
- DL 2106T05: IGBT STACK,
- DL 2106T11: Silicon diode,
- DL 2106T13: Rectifier,
- DL 2106T16: SCR with turn-off circuit,
- DL 2106T21: Fuse box,
- DL 2106T22: EMI filter,
- DL 2106T23: Capacitors,
- DL 2106T24: Switching transformer,
- DL 2106T25: 1(omega) shunts,
- DL 2106PS: DC power supply,
- DL 2106TPS: 3-ph power supply,
- DL 2106RLC: RLC load,
- DL 2109D33: True RMS meter,
- DL 2600TTI: Isolated transformer,
- DL T12090_SK: 120x90 working bench,
- DL T06090: 60x90 working bench,
- DL A120-3M: Frame with 3 levels, basic version,
- DL SP-A120-LED: Upper base with LED strip, for DL A120-3M,
- DL PCGRID: Computer All in one,
- TLDCA2.0: Kit of connecting leads,
- DL 1196: Holder for leads.
