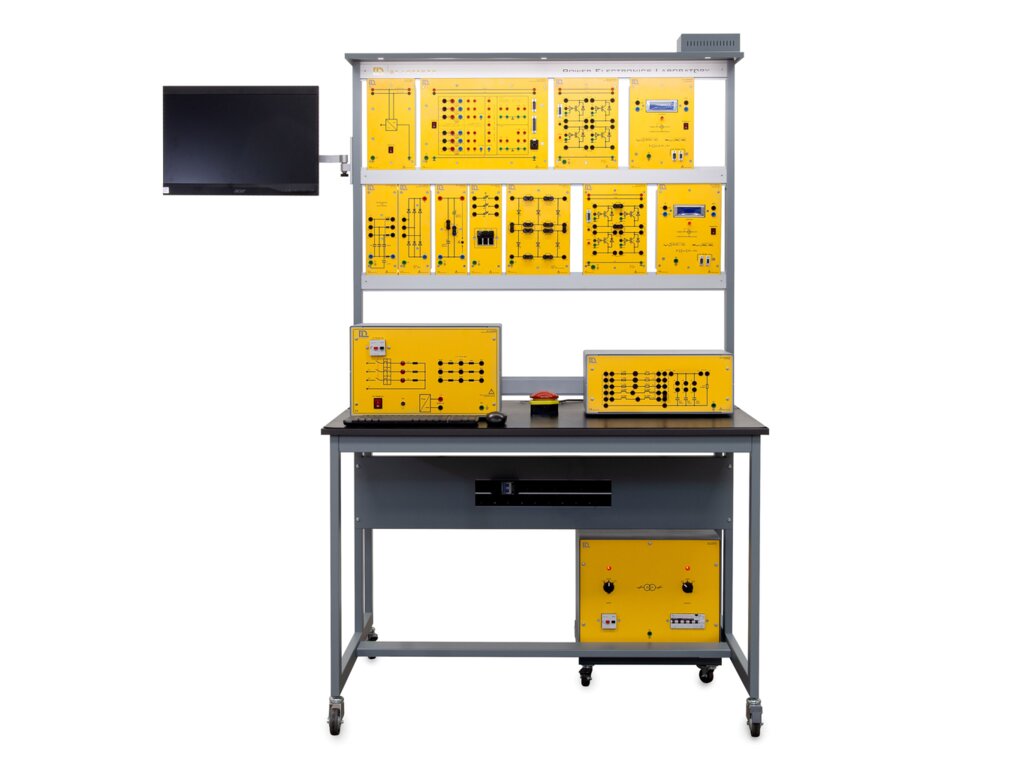

DC-AC Conversion (DL PEL204)
PL-548881
The DL PEL204 is a multipurpose bench to study the conversion from direct current to alternating current, and its main fields of applications such as AC motor drives and AC uninterruptable power supplies. The trainer is designed to study the properties of the inverter with a Pulse Width Modulation control. Its modular structure makes it easy to reconfigure the system to perform several experiments in various subjects such as four-quadrant drive with cycloconverter, control of stator voltage with three-phase AC voltage controller, variable-frequency drive with space vector PWM (SVPWM), to name a few.
EXPERIMENTS:
INVERTERS
Fundamentals of inverter
- 1-ph half-bridge inverter
- 1-ph bridge DC chopper, PWM
Single-phase inverter
- 1-ph bridge inverter, 180° conduction
- 1-ph bridge inverter, sinusoidal PWM
- 1-ph bridge inverter, square-wave PWM
Three-phase inverter
- 3-ph bridge inverter, 180° conduction
- 3-ph bridge inverter, sinusoidal PWM
Multi-level inverter
- 1-ph neutral point clamped (NPC) 5-level inverter, unchopped
- 1-ph neutral point clamped (NPC) 5-level inverter, PWM
Modules List DL PEL204:
- DL 2106T01: Control module,
- DL 2106T05: IGBT stack,
- DL 2106T12: Diode stack,
- DL 2106T13: Rectifier,
- DL 2106T21: Fuse box,
- DL 2106T22: EMI filter,
- DL 2106T23:Capacitors,
- DL 2106PS: DC power supply,
- DL 2106TPS: 3-ph power supply,
- DL 2106RLC: RLC load,
- DL 2109D33: True RMS meter,
- DL 12B12: Battery,
- DL 2600TTI: Isolated transformer,
- DL T12090_SK: 120x90 working bench,
- DL T06090: 60x90 working bench,
- DL A120-3M: Frame with 3 levels, basic version,
- DL SP-A120-LED: Upper base with LED strip, for DL A120-3M,
- DL PCGRID: Computer All in one,
- TLDCA2.0: Kit of connecting leads,
- DL 1196: Holder for leads.
