Module For The Study Of Domestic Air-Conditioning (DL TMACM-AC)
Vendor
Edquip Product Code
PL-676752
Quality Certification
CE
Warranty
12 months
Student product ratio
1 - 2
Production leadtime
120 days
Content languages
English,
French,
Italian,
Spanish
Taining types
In person
X.X (product not reviewed yet)
Write review

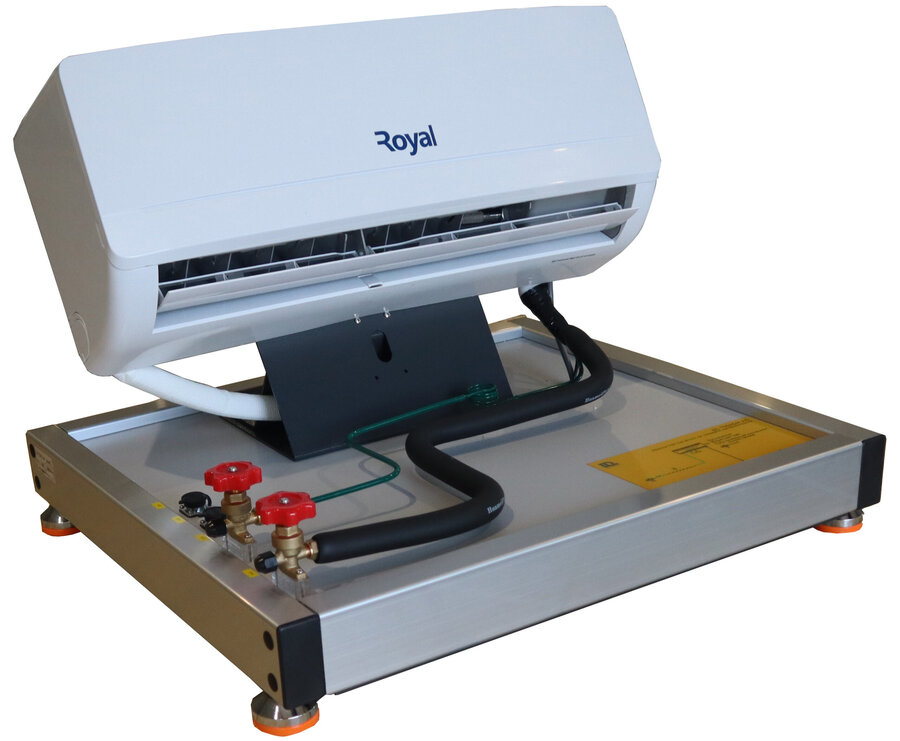

This trainer is designed to emphasize the hydraulic, mechanical and thermodynamic aspects of split-type domestic air conditioners.
The trainer includes the following components:
- Tabletop aluminium structure,
- Wall-mounted split-type evaporating unit including:
- heat exchange battery,
- tangential fan,
- motor-driven baffle,
- remote control.
- Temperature and relative humidity sensor,
- Internal thermal load,
- Colour printed schematic diagram of the hydraulic circuit,
- Capillary tube for the refrigerant expansion,
- Cocks for an easy connection (with the basic trainer DL TMACM-RS),
- Specific supervision software.
With this trainer, the students can perform the following practices:
- Basic concepts and relevant terminology of air-conditioning thermodynamics,
- Operating principles of split-type air conditioners,
- Cooling and phase change processes,
- The air psychrometric chart, transformation of cooling and dehumidification,
- How heat flows through the system components,
- How the variation of thermal load can affect the operation of evaporator and of condenser,
- The gas expansion via capillary tube,
- Dehumidification and cooling capacity,
- Servicing air-conditioning system,
- Calculation of the thermal power extracted from the room,
- Calculation of the thermal power of Coefficient Of Performance (COP) heat balances,
- Calculation of heat exchange coefficients,
- Exercises concerning the fault insertion (with the basic trainer DL TMACM-RS).
What is this?
These percentage scores are an average of 0 user reviews. To get more into detail, see each review and comments as per below
If you have used this product, support the community by submitting your review
Power requirements
1 phase, 200 VAC – 240 VAC/50 Hz
Other requirements
Warranty
12 months
HS code
9023 0010
Equipment dimensions (L/W/H)
Equipment weight
Production lead time
120 days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
No
