PL-265714
Reviews
Not reviewed yet
Producer
ERM
Content languages
English , French
Certification labels
CE
Warranty
24
Producer product code
PC60
Heating

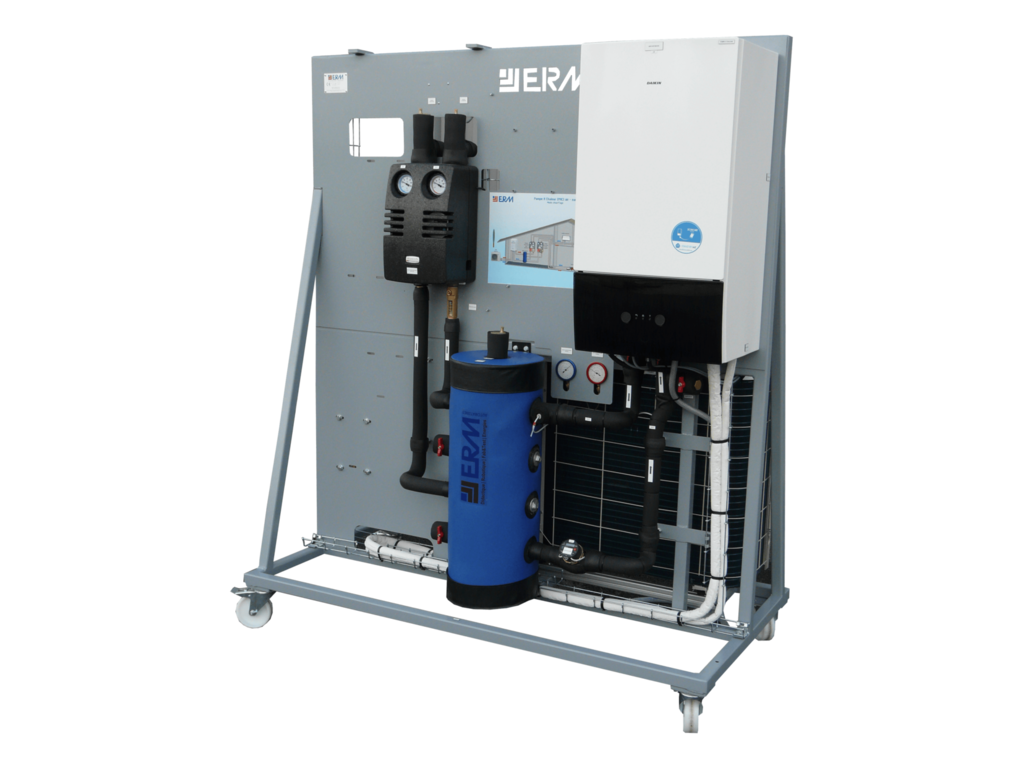

This Air Water Heat Pump training equipment is an excellent tool to teach students various relevant topics in a hands-on manner. Instrumented 6kW air/water heat pump, reversible, inverter.

Topic coverage:

  • Thermodynamic equipment
  • Thermal control
  • Fluid system (Circulation unit, Expansion tank, Buffer tank…)
  • Measurements (Thermal and electrical meters, Temperature, High pressure and Low-pressure manometer)



Training activities:

  • Hydraulic and electrical wiring and connecting
  • Commissioning, configuration and maintenance
  • Overall and subsystem thermal balance
  • Techno-economic and environmental analyses
  • Dimensioning the installation



Product advantages:

  • Temperature displayed on a 4-way viewer
  • Software for datalogging



Reference numbers:

  • PC20: Instrumented 6kW Air/Water heat pump (with hydraulic unit)
  • PC21: Data logging and teleprocessing station
  • PC22: Temperature recorder and data logger with sensors
  • PC23: Tube-in-shell exchanger (Optional)



Technical Specifications:

  • Daikin controller with WiFi connected thermostat
  • Fluid system with buffer tank  and one or two outputs (different temperatures) towards the emitting benches
  • DHW production optional (3-way valve towards the tank, with exchanger)
  • Thermal and electrical energy meters
  • Temperatures on hydraulic and air-handling circuits
  • HP/LP manometers and temperatures for pour refrigeration cycle study

Daikin controller with WiFi connected thermostat
Fluid system with buffer tank  and one or two outputs (different temperatures) towards the emitting benches
DHW production optional (3-way valve towards the tank, with exchanger)
Thermal and electrical energy meters
Temperatures on hydraulic and air-handling circuits
HP/LP manometers and temperatures for pour refrigeration cycle study





Voltage availability
220-240V
Production lead time
70 days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
No
