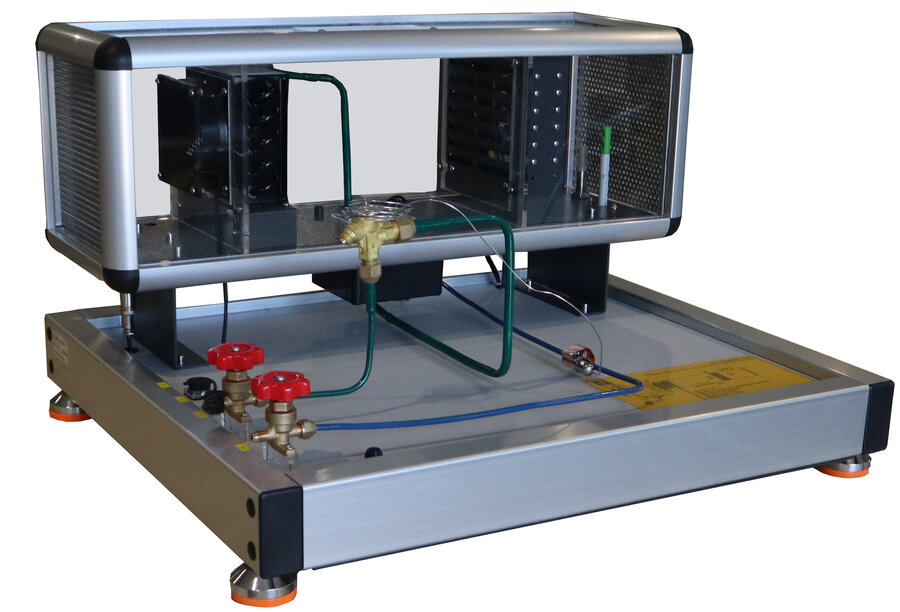

Module For The Study Of Industrial Air-Conditioning (DL TMACM-IAC)
Vendor
Edquip Product Code
PL-903080
Quality Certification
CE
Warranty
12 months
Student product ratio
1 - 2
Production leadtime
120 days
Content languages
English,
French,
Italian,
Spanish
Taining types
In person
X.X (product not reviewed yet)
Write review
This trainer is designed for the complete and exhaustive study of thermodynamic transformations the air undergoes when crossing a three-section central air-conditioning unit.
The trainer includes the following components:
- Tabletop aluminium structure,
- Air conditioning unit including:
- duct with transparent walls,
- variable speed axial fan,
- cooling and dehumidification battery,
- humidifying section,
- heating battery,
- temperature and relative humidity sensors,
- anemometric sensor.
- Colour printed schematic diagram of the hydraulic circuit,
- Thermostatic expansion valve,
- Cocks for an easy connection (with the basic trainer DL TMACM-RS),
- Specific supervision software.
With this trainer, the students can perform the following practices:
- The air psychrometric chart:
- determination of absolute humidity,
- enthalpy,
- specific volume,
- dew point.
- Transformations of the air due to variations of temperature and/or of relative humidity,
- Heating, humidification, cooling and dehumidification processes and heat balances,
- Using the air recirculation to save energy,
- Air quality and Air handling with mixing and filtration,
- Thermohygrometric comfort conditions of room occupants,
- System performances far from design conditions,
- Determining the airflow in ducts as speed varies,
- Fault insertion tests included (with the basic trainer DL TMACM-RS).
What is this?
These percentage scores are an average of 0 user reviews. To get more into detail, see each review and comments as per below
If you have used this product, support the community by submitting your review
Power requirements
1 phase, 200 VAC – 240 VAC/50 Hz
Other requirements
Warranty
12 months
HS code
9023 0010
Equipment dimensions (L/W/H)
Equipment weight
Production lead time
120 days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
No
