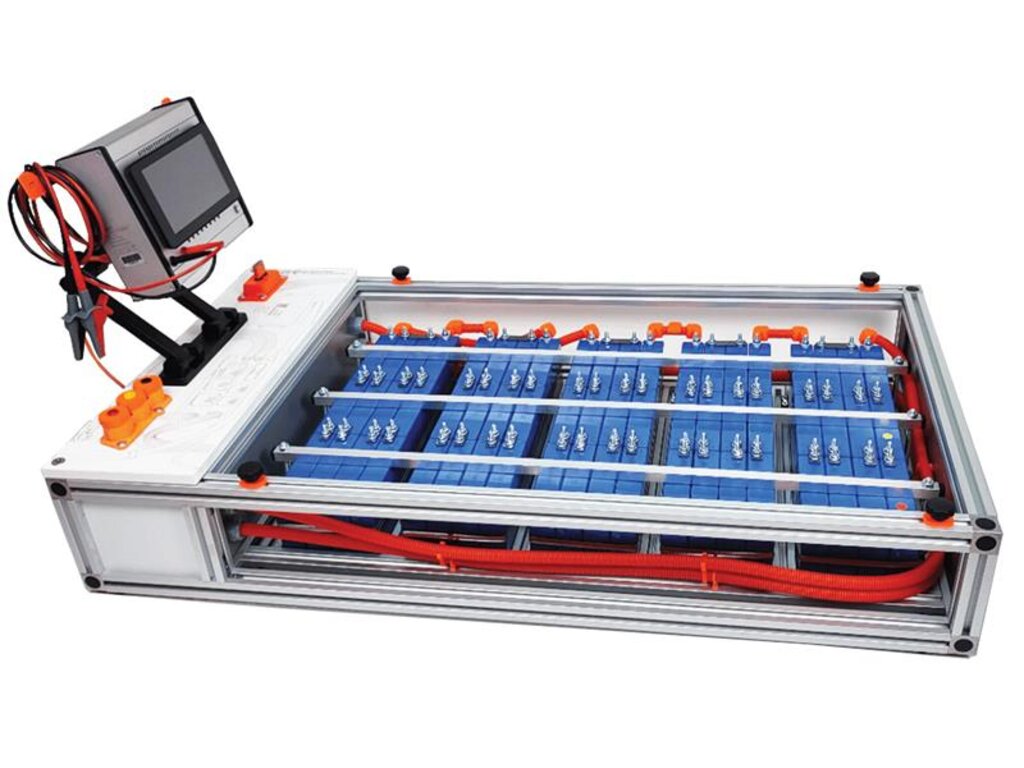

Trainer for the study of the Battery Pack in Electric Vehicles (DL HV-BST)
Vendor
Edquip Product Code
PL-810694
Quality Certification
CE
Warranty
12 months
Student product ratio
2 - 4
Production leadtime
120 days
Content languages
English,
French,
Italian,
Spanish
Taining types
In person
X.X (product not reviewed yet)
Write review
Many of the major challenges an automotive professional faces are related to diagnostics, maintenance and repair of HV batteries. Organizing a training day on high voltage batteries in a safe environment is considered an almost impossible task. The industry needs a system that will help them deliver high-quality, yet completely safe, high-voltage battery training to their colleagues and customers. This trainer DL HV-BST provides a modern and safe way to teach high voltage batteries to all training centres and institutes.
Technical Specifications
- REALISTIC:
- Resembles a real HV battery pack for vehicle traction
- Contains 60 cells in series, arranged into 5 modules
- Can be disassembled and reassembled down to the cellular level
- Measurable battery pack voltages: from 120 to 490 V
- Available measurements: V, mΩ, Ω, MΩ, A
- Setup parameters: manufacturer, cell type, State of Charge (SoC) and capacity
- Incorporated Diagnostic Trouble Codes (DTC) and live data varies with fault setup
- Single cell cyclic charging simulator with revitalizing effect
- Power supply: 230 Vac wall outlet to work
- Easy to move: Less than 40 kgs total
- Dimensions: approx. 120 x 60 x 25 cm
- SAFE:
- Suitable for classroom teaching
- Less than 10 mA fault current due to accidental touch
- Can be transported safely
- Excludes hazardous chemical substances, no electro-chemical energy storage
- Applies Augmented Reality for extra functions (e.g. thermal imaging)
- Warning appears when dangerous measurement or mishandling detected
- Adapts to all trainee audiences (secondary, higher education or professional level)
- EFFECTIVE:
- Simulates 19 different malfunctions from faulty cells to insulation error
- 10 000 different fault finding scenarios (exam-mode)
- Demonstrates 99 million different measuring iterations
- Screen-mirroring function with projector or TV for better group trainings
- No need for any external measuring equipment
- Upkeep and maintenance is minimal
Included Components
- HV battery pack (1 pc)
- Head unit (1 pc)
- Measuring test leads and cables (2 pcs)
- Power supply: 12Vdc/3A (1 pc)
- Supplied with detailed manual
What is this?
These percentage scores are an average of 0 user reviews. To get more into detail, see each review and comments as per below
If you have used this product, support the community by submitting your review
Power requirements
Other requirements
Warranty
12 months
HS code
9023 0010
Equipment dimensions (L/W/H)
Equipment weight
Production lead time
120 days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
No
