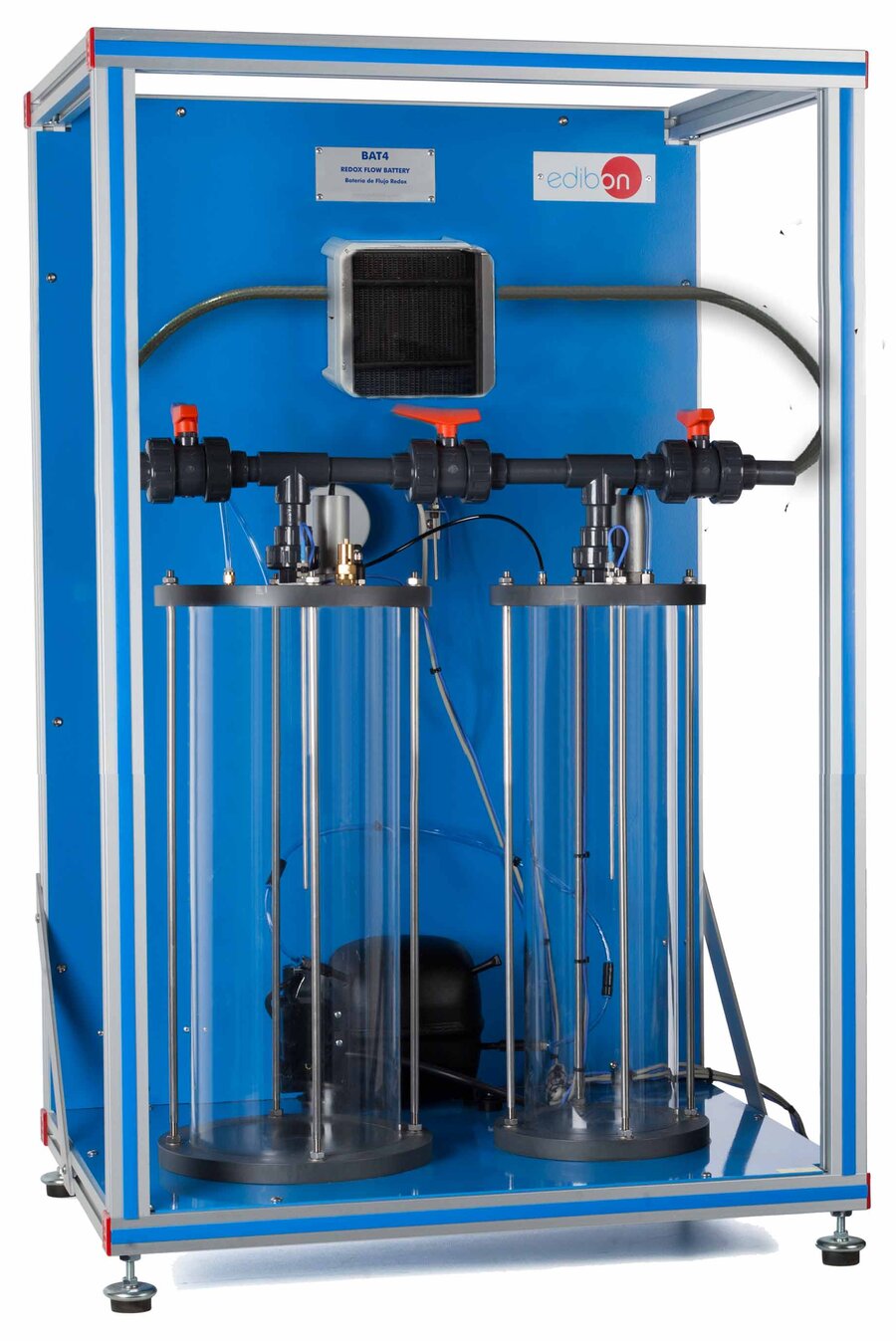

Battery Energy Storage Test Application (AEL-BESTA)
PL-676413
There are various systems for storing energy, and one of the most widely used methods is through rechargeable electric batteries. These batteries come in many types, including lithium-ion, lithium polymer, lead-acid, solid-state, and redox flow batteries. Each battery type has unique characteristics that make it suitable for specific energy storage applications.
The Battery Energy Storage Test Application, “AEL-BESTA”, developed by EDIBON, is designed to carry out a complete analysis and characterization of the most commonly used battery technologies. The “AEL-BESTA” application enables students to perform all testing procedures automatically, while managing and saving the results in the form of curves and charts for further evaluation and comparison.
With the “AEL-BESTA” application, students can obtain discharge curves by selecting the desired output current, analyze the depth of discharge, measure voltage in both open-circuit conditions and under load, determine the actual battery capacity for different battery types, and compare the capacity of the same battery across various charge-discharge cycles to generate accurate life cycle curves.
- "AEL-BESTA”. Test Application:
BESTA-UB. Battery Energy Storage Test Base Unit.
- Battery discharge control: performs the steps to carry out the procedure selected in the computer for the different battery tests.
- Voltmeter and ammeter: measure the electric voltage and current from the tested battery. The values are visualized with the computer.
- Load selector: different electric heating elements can be connected to the tested battery. The element is selected through the computer.
- Cable for connection with the computer.
BAT3. Lithium-Iron-Phosphate Battery
- Long life battery.
- Battery capacity: 2000 Wh.
BAT5. Lead-Acid Battery.
- Sealed lead-acid battery.
Required element (Not included):
AEL-PC. Touch Screen and Computer
- Touch screen:
- Energy efficiency class: A.
- Screen diagonal: 68.6 cm (27 inch (s)).
- Power consumption (operating): 26 watts.
- Annual energy consumption: 38 kWh.
- Power consumption (standby / off) 0.49 watts.
- Screen resolution: 1920 x 1080 pixels.
- Computer:
- Processor number: Intel Core i7-6600U Processor (4M Cache, up to 3,40 GHz).
- Cache: 4 MB Intel Smart Cache.
- Clock speed: 2.6 GHz.
- # Of cores / # of threads: 2/4.
- Max. TDP / Power: 15 W.
- Memory types: DDR4-2133, LPDDDR3-1866, DDR3L-1600.
- Graphics: Intel HD graphics 530.
- Slot for PCI Express.
- Cables and Accessories, for normal operation.
- Manuals: This unit is supplied with the following manuals: Required Services, Assembly and Installation, Starting-up, Safety, Maintenance and Practices manuals.
EXERCISES AND PRACTICAL POSSIBILITIES TO BE DONE WITH THE MAIN ITEMS
- Life-cycle battery tests.
- Verification of the battery durability.
- External load connection for higher load currents on discharge.
- Identification of possible faults in the battery during the tests.
- Comparison of different life cycles with different battery models.
- Verification of the battery life-cycle.
- Verification of the Lithium-Iron-Phosphate battery durability.
- Load connection in the Lithium-Iron-Phosphate battery to analyze the discharge.
- Load connection in the Lead-Acid battery to analyze the discharge.
- Verification of the Lead-Acid battery durability.
