Factory Design and Automation (DL FACTORY-BUILDER)
PL-487804
The DL FACTORY BUILDER is a software that has been developed to teach factory design, industrial automation, and PLC programming in a unique and effective way.
With this software, students can improve their individual experience on studying industrial automation in practice.
Students will be able to develop several projects dealing with the following topics:
- Design and implementation of production lines including equipment, sensors, actuators, conveyor systems and so on;
- Develop PLC projects for production line equipment;
- Develop PLC projects for material flow management;
- Study automation basics, PLC, sensors and actuators;
- Study automation strategies such as state machines, interlocks, control strategies and advanced control;
- Study robotics;
- Study basic and advanced PLC programming.
This software works integrated to a SoftPLC (not included) which can be the Siemens PLCSIM or Codesys Control, as well as it can be connected to a real Siemens S7-1200/1500 or other PLC with Modbus/TCP interface.

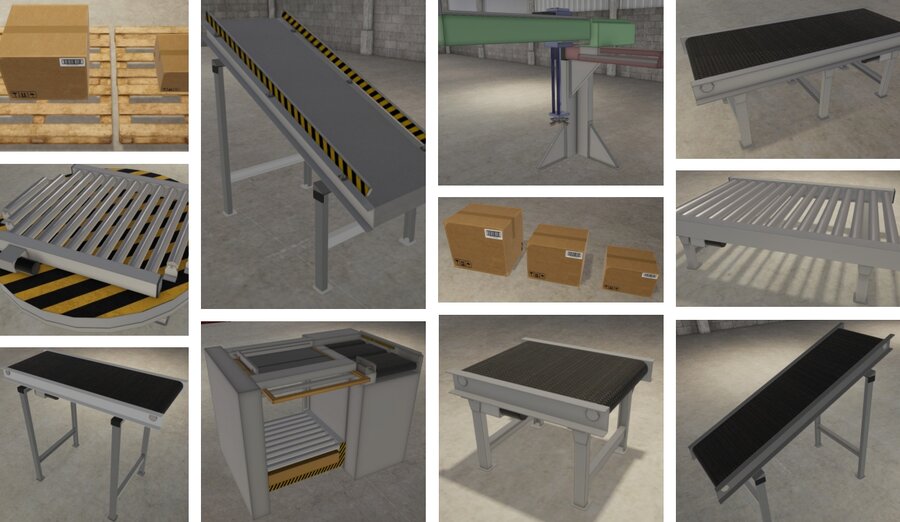

EQUIPMENT
- SEVERAL CONVEYORS
- PALLETIZER
- ELEVATOR
- TRANSELEVATOR
- WEIGHT CONVEYOR
- INK COLORING SYSTEM
- PICK-AND-PLACE
- ROBOT
SENSORS
- OPTICAL
- INDUCTIVE
- CAPACITIVE
- SCALE
- DISTANCE
- LEVEL
- TEMPERATURE
- PRESSURE
- FLOW
- ROTARY ENCODERS
ACTUATORS
- PNEUMATIC PISTON
- MOTORS
- PUMPS
- VALVES

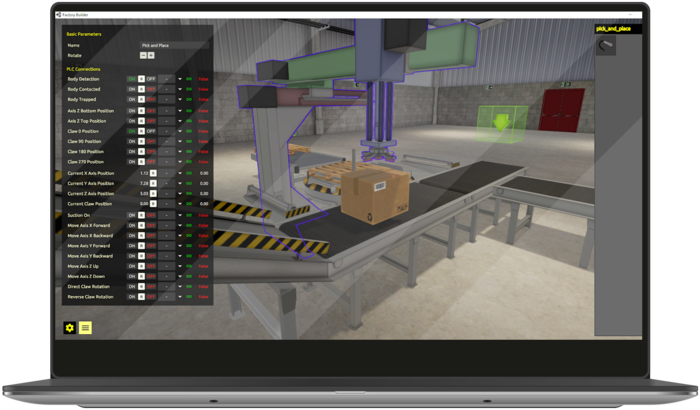

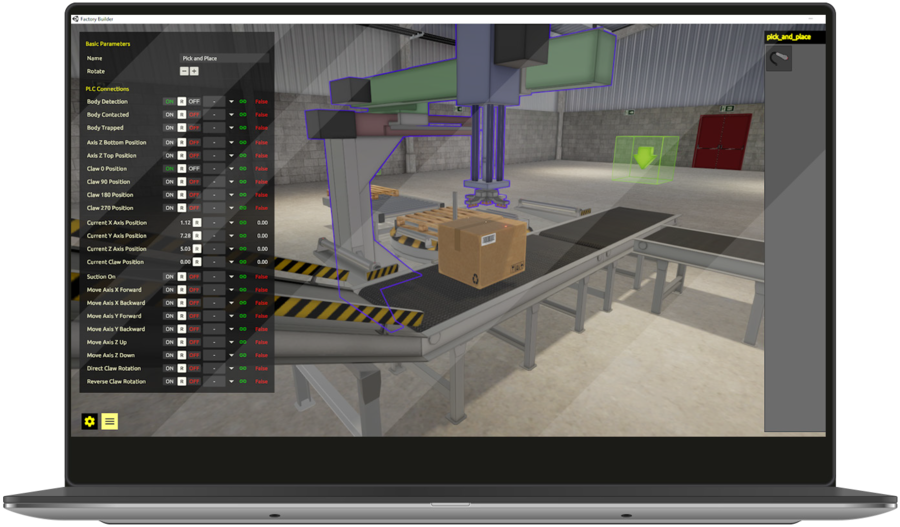

- IT’S A 3D SIMULATOR
- YOU CAN BUILD YOUR FACTORY
- YOU CAN CONTROL IT WITH A PLC OR SOFTPLC
- YOU CAN SAVE YOUR FACTORY AND SHARE IT WITH STUDENTS, PROFESSORS ETC
- YOU CAN SIMULATE FAULTS ON SENSORS AND ACTUATORS
With the industrial 3D environments and the built-in projects it´s possible to develop solutions that evolve basic ladder logic, analogue handling, math operations, comparisons, state machines, SFC, function blocks and a lot more.
- BASIC LADDER LOGIC
- ANALOGUE HANDLING
- SCALING
- FUNCTION BLOCKS
- SEQUENTIAL FUNCTION CHART
