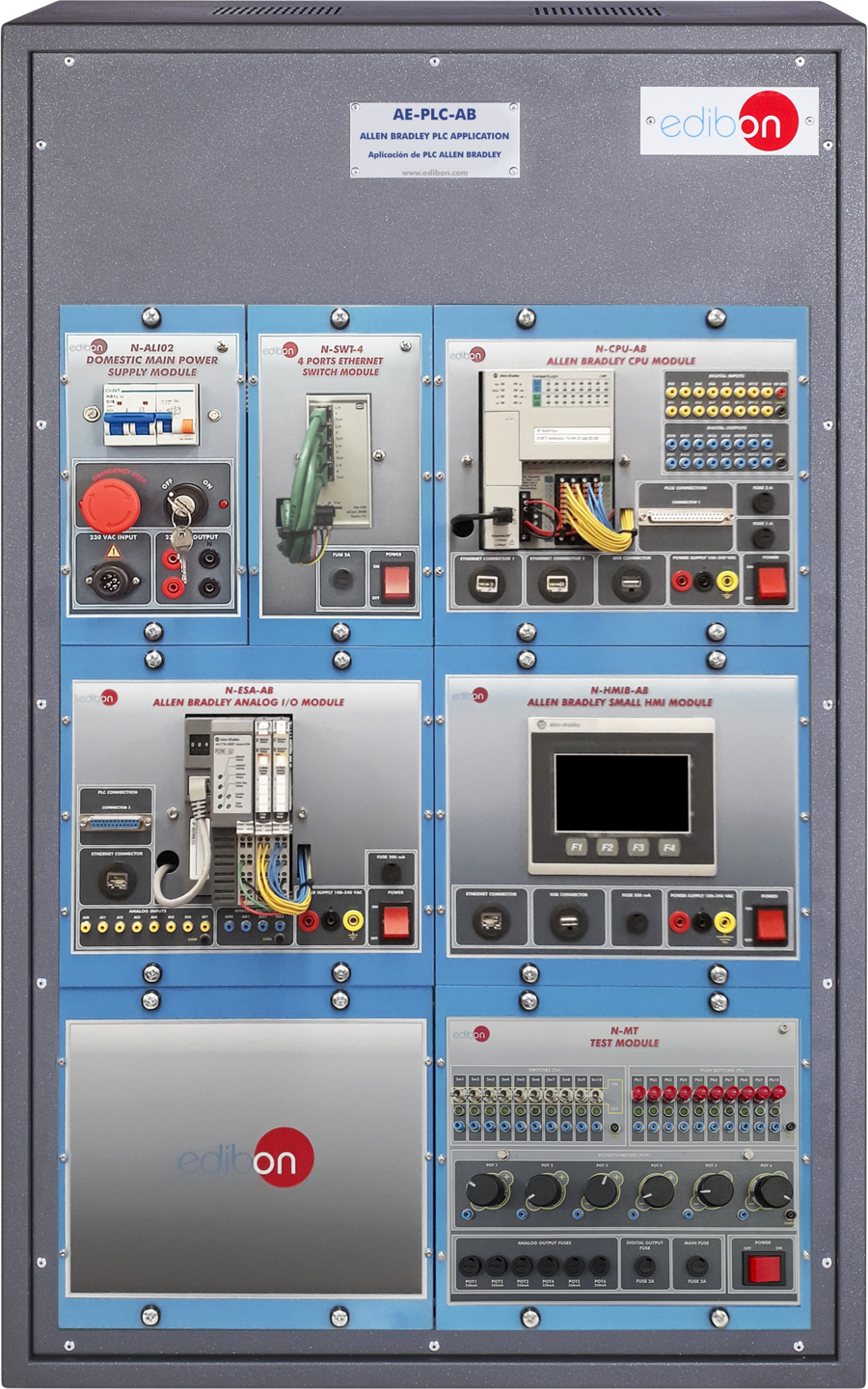

ALLEN BRADLEY PLC Application (AE-PLC-AB)
PL-617984
The ALLEN BRADLEY PLC Application (AE-PLC-AB) is a training unit developed by EDIBON, based on one of the latest Allen Bradley PLC controllers. This system enables users to learn and practice PLC logic programming, multiple PLC programming languages, and PLC-to-PC communication.
The AE-PLC-AB comes with a complete set of practical exercises designed so that students can understand how to operate and program PLC systems, even without prior knowledge or experience. It can be used independently to study programmable logic controllers, or in combination with other EDIBON compatible units to simulate real industrial PLC applications.
This is a modular PLC training system that integrates the key components of a complete PLC setup. The ALLEN BRADLEY PLC Base Unit (AE-PLC-AB-UB) always includes the power supply, the PLC CPU module, and the programming software. Additionally, a range of optional extension kits is available to expand the system with extra programmable controller functions such as test modules, analog input/output signals, HMI devices, or PLC internet connection. These extensions allow users to practice HMI programming, test analog I/O signals, and even learn how to develop and manage a PLC web server application.
- AE-PLC-AB-UB. Unit:
N-ALI02. Domestic Main Power Supply Module
- Supply voltage (single-phase).
- ON / OFF removable key.
- Output voltage connections:
- Two single-phase.
- Single-phase supply hose connecting plug.
- Differential magnetothermal 2 poles.
- Emergency stop push-button.
N-CPU-AB. ALLEN BRADLEY CPU Module
- Supply voltage (single-phase).
- Overcurrent protection with fuse.
- PLC device Allen Bradley CompactLogix 5370 L1 controller:
- High speed and high performance control.
- Controller tasks.
- Program per task.
- Available user memory.
- SD card inbox memory.
- Two Ethernet connectors.
- USB connection for firmware updates.
- Sixteen digital inputs.
- Sixteen relay type digital outputs.
- Connector for the digital input and output signals.
- Connector for the Ethernet switch module.
N-SWT-4. 4 Ports Ethernet Switch Module
- Supply voltage (single-phase).
- Compact switch module: Four Ethernet ports.
- Protection fuse (at supply voltage height).
Required elements of the “AE-PLC-AB-UB” base unit (Not included):
AB-PLC-K1. ALLEN BRADLEY PLC Kit 1.
N-MT. Test Module.
- Supply voltage (single-phase).
- Twenty digital signal generators:
- Ten toggle switches.
- Ten push-buttons.
- Each digital signal generator is linked to a green LED.
- Output voltage levels of 0 VDC and 24 VDC.
- Six analog signal generators:
- Six potentiometers.
- Output voltage range from -10 V to +10 V
- Protection fuses (at supply voltage height).
Additional recommended elements of the “AE-PLC-AB-UB” base unit (Not included):
AB-PLC-K2. ALLEN BRADLEY PLC Kit 2.
N-ESA-AB. ALLEN BRADLEY Analog I/O Module
- Supply voltage (single-phase).
- Expansion unit for analog inputs:
- Input voltage range from 0 V to +10 V.
- Four analog inputs.
- Resolution: 16 bits.
- Input conversion sigma-delta.
- Expansion unit for analog outputs:
- Output voltage range from 0 V to +10 V.
- Four analog outputs.
- Resolution: 16 bits.
- Accuracy: 0.1% full scale.
- Connector for the analog input and output signals.
- Connector for the Ethernet switch module.
AB-PLC-K3. ALLEN BRADLEY PLC Kit 3.
N-HMIB-AB. ALLEN BRADLEY Small HMI Module.
- Supply voltage (single-phase).
- HMI device:
- Touch screen.
- TFT screen of 65536 colors.
- 800 MHz CPU processor.
- Screen size: 95 mm (width) x 53.9 mm (height) (4 inches).
- Screen resolution: 480 x 272 pixels.
- Backlight: white LED.
- SD memory card compatible.
- Connector for the Ethernet switch module.
AB-PLC-K4. ALLEN BRADLEY PLC Kit 4.
N-HMIA-AB. ALLEN BRADLEY Large HMI Module.
- Supply voltage (single-phase): 230 VAC.
- HMI device:
- Touch screen.
- TFT screen of 65536 colors.
- 800 MHz CPU processor with 256 MB memory.
- Screen size: 153.6 mm (width) x 86.6 mm (height).
- Screen resolution: 800 x 480 pixels.
- Backlight: white LED.
- SD memory card compatible.
- Connector for the Ethernet switch module
AB-PLC-K5. ALLEN BRADLEY PLC Kit 5.
N-MOD. Modem Communication Module.
- Supply voltage (single-phase): 230 VAC.
- Router-switch Ethernet network.
- Wifi system to allow a wireless connection of devices (smartphone, tablet or PC).
- Internet router with RJ-11 socket to connect the phone line.
- Conjunction of practical exercises to perform a web server application.
- Cables and Accessories, for normal operation.
- Manuals: This unit is supplied with the following manuals: Required services, Assembly and Installation, Starting-up, Safety, Maintenance and Practices manuals.
EXERCISES AND PRACTICAL POSSIBILITIES TO BE DONE WITH THE MAIN ITEMS
- Using variables.
- Using digital inputs I.
- Using digital inputs II.
- Testing digital inputs.
- Using digital outputs.
- Testing digital outputs.
- Using analog signals I (AB-PLC-K1 and AB-PLC-K2).
- Using analog signals II (AB-PLC-K1 and AB-PLC-K2).
- Square wave generator.
- HMI simple program (AB-PLC-K3 or AB-PLC-K4).
- Using digital outputs with HMI device I (AB-PLC-K3 or ABPLC-K4).
- Using digital outputs with HMI device II (AB-PLC-K3 or ABPLC-K4).
- Reading data from a register with the HMI device (AB-PLC-K3 or AB-PLC-K4).
- Writing data to a register with the HMI device (AB-PLC-K3 or AB-PLC-K4).
- Switching screens of the HMI device (AB-PLC-K3 or ABPLC-K4).
- Internet connection of the PLC unit (AB-PLC-K5).
- Control digital inputs with a web server application (ABPLC-K5).
- Control digital outputs with a web server application (ABPLC-K5).
- Control analog inputs with a web server application (ABPLC-K5).
- Control analog outputs with a web server application (ABPLC-K5).
