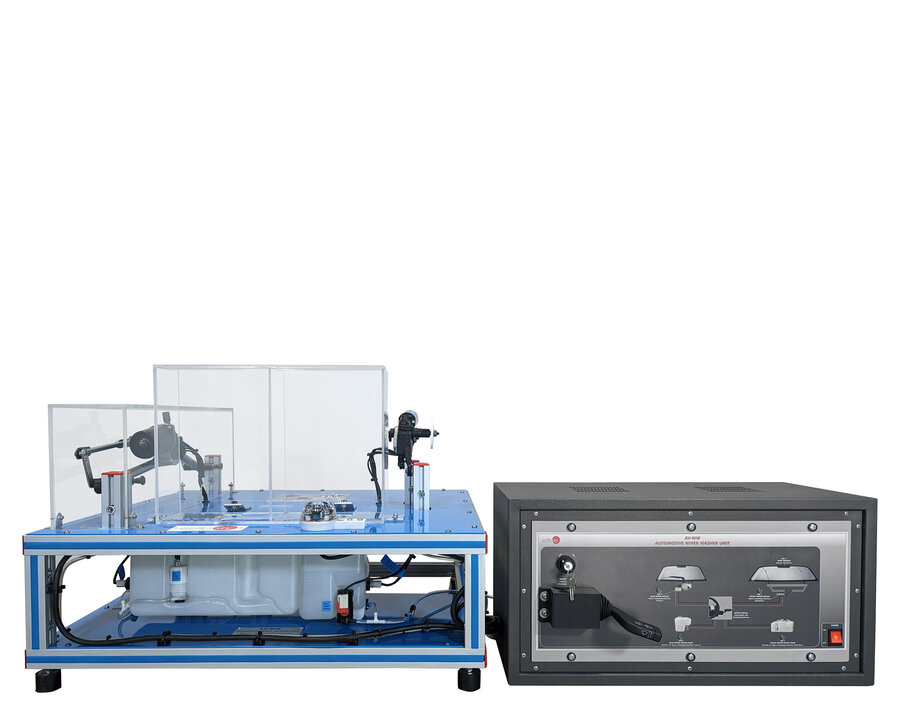

Automotive Wiper Washer Unit (AV-WW)
PL-331543
The Automotive Wiper Washer Unit, “AV-WW”, offers a practical solution for learning about the key components of modern automotive wiper washer systems.
The “AV-WW” includes essential components such as the windshield wiper motor mechanism, rear wiper motor mechanism, washer liquid circuit, and wiper washer control switch.
This unit features a variety of practical exercises designed to help students understand the operation and functionality of wiper washer system components used in today’s vehicles.
- "AV-WW”. Unit:
- Power supply components:
- Power supply: Operating voltage: 12 VDC.
- Car ignition key.
- Wiper washer tank components:
- Front wiper washer tank:
- 3 l of capacity.
- Wiper washer tank level switch.
- Rear wiper washer tank:
- 1.5 l of capacity.
- Wiper washer tank level switch.
- Control components:
- Electronic control equipment.
- Rain sensor.
- Wiper washer control switch.
- Lights indicators:
- Power on indicator for every motor.
- Wipers washer tanks level indicator.
- Actuator components:
- Front wiper washer washing water pump.
- Rear wiper washer washing water pump.
- Front wiper washer motor.
- Front wiper washer nozzles.
- Front wiper washer motor transmission and linkage.
- Rear wiper washer motor.
- Rear wiper washer nozzles.
- Rear wiper washer motor transmission and linkage.
- Cables and Accessories, for normal operation.
- Manuals: This unit is supplied with the following manuals: Required Services, Assembly and Installation, Starting-up, Safety, Maintenance and Practices manuals.
EXERCISES AND PRACTICAL POSSIBILITIES TO BE DONE WITH THE MAIN ITEMS
- - Operating modes and positions of the wiper washer control switch.
- Front wiper washer motor transmission and linkage operation.
- Rear wiper washer motor transmission and linkage operation.
- Rear wiper washer fluid circuit of the rear windshield washer system.
- Automatic activation of the wipers with rain sensor.
- Several other exercises can be done and designed by the user.
