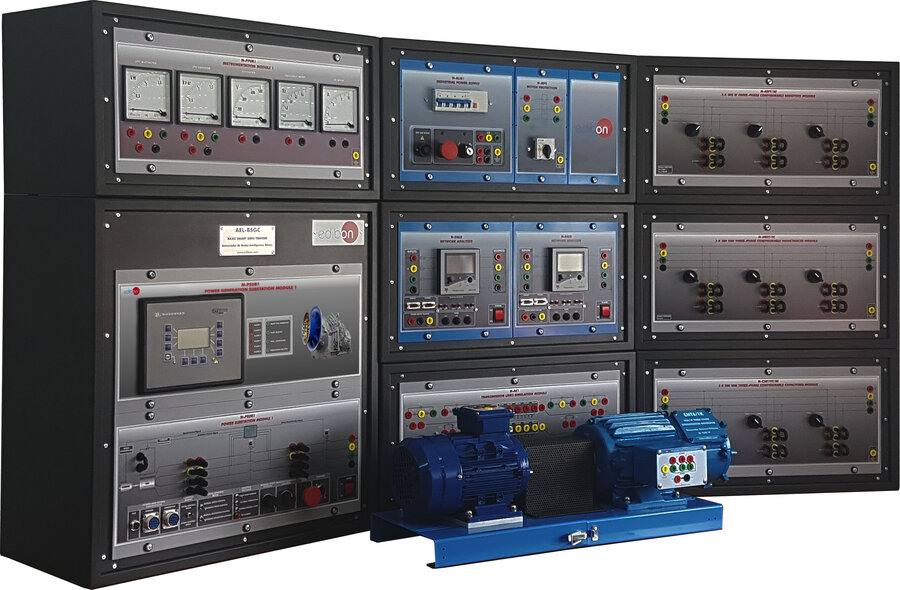

Computer Controlled Smart Grids Application (AEL-BSGC)
PL-195409
The Computer Controlled Smart Grids Application, “AEL-BSGC”, has been designed to study smart grids in the fields of generation, transmission, distribution, and consumption. It enables students and researchers to analyze the complete energy flow from production to consumption, identifying problems and solutions throughout the system. The unit includes a 1 kVA synchronous generator-motor group, where the generator is coupled to an induction motor controlled by a variable frequency drive, allowing simulation of real power generation conditions. Both speed and excitation current can be manually or automatically controlled via an advanced AVR, enabling detailed studies of synchronization, voltage regulation, and stability.
The system also includes a transmission line module designed with variable parameters (resistance, inductance, and capacitance), allowing users to simulate different line lengths and capacitive effects, and to evaluate their impact on energy transport. Two bidirectional smart meter simulators are included to monitor energy losses, voltages, powers, and currents across the transmission line. To simulate real consumption scenarios, the unit includes resistive, inductive, and capacitive loads to provoke instability and analyze how the smart grid restores balance automatically.
Finally, the unit is supplied with a SCADA Control and Data Acquisition System that replicates a real substation. It enables real-time control of speed, voltage, synchronization with the grid, and protection system behaviors such as overspeed, voltage drops, reverse power, and generator overloads. It also allows monitoring and data logging of electrical parameters for deeper analysis of the generation, transmission, and consumption processes.
- AEL-BSGC. Application:
N-ALI01. Industrial Main Power Supply Module.
- Supply voltage: 400 VAC, 3PH + N.
- ON / OFF removable key.
- Output voltage connections:
- Three-phase + Neutral: 400 VAC.
- Single-phase: 230 VAC.
- Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
- Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
- Emergency stop push-button.
N-PPIM1. Instrumentation Module 1.
- Three-phase wattmeter.
- Three-phase varmeter.
- Voltmeter.
- Frequency meter.
- DC meter.
N-PSUB1. Power Generation Substation Module 1.
- Supply voltage: 400 VAC, 3PH + N.
- ON / OFF switch.
- Power and signals connection:
- Three-phase turbine supply hose with IP44 3PN+E 32 A 400 V connecting plug.
- Three-phase generator supply hose with IP44 3PN+E 32 A 400 V connecting plug.
- Three switches to choose between the different modes:
- Local and remote control mode.
- Manual and automatic speed control.
- Manual and automatic excitation control.
- Three control switches to:
- Start and stop the turbine.
- Give permission to synchronize the generator with the grid.
- Give permission to close 52NET circuit breaker.
- Two potentiometers to regulate:
- Turbine speed.
- Generator excitation.
- Emergency stop button.
- Two circuit breakers for synchronization and stand-alone operations.
- Different terminals to measure.
- Ethernet connection: RJ45 communication port for SCADA remote control.
- Automatic speed and voltage controller (easygen):
- Enables to connect to electric generators in parallel-island with distribution of active and reactive load and start/stop in function of the load demand.
- Enables to connect a generator in parallel with the grid.
- Enables different switches control modes, such as opening, closing and synchronization.
- Analogical outputs to control voltage and frequency regulators.
- Three-phase measurement of the grid and the generator voltage.
- Three-phase measurement of the generator intensity and power.
- Single-phase measurement of the grid intensity.
- Protection system:
- Generator:
- Maximum/minimum voltage (59/27), maximum/minimum frequency (81O/U), voltage asymmetry, detection of dead busbars, overvoltage (32), load unbalance (46), negative sequence power/reduced power (32R/F), overcurrent by defined curve (50/51), inverse time overcurrent (IEC255), measured ground fault (50N/51N), phase rotation, switches faults.
- Network:
- Maximum/minimum voltage (59/27), maximum/minimum frequency (81O/U), vector jump, phase rotation.
- Six alarms:
- Alarm 1: Reverse power.
- Alarm 2: Overcurrent.
- Alarm 3: Over/under voltage.
- Alarm 4: Inverse time overcurrent.
- Alarm 5: Over/under frequency.
- Alarm 6: Shutdown alarms.
- Four operation signals:
- Ready for operation.
- Start request.
- Synchronization conditions.
- Permission for synchronization.
N-AE1. Transmission Lines Simulation Module.
- Return line of 10 Ohm.
- The resistive part: two resistance values of 15 Ohm and 33 Ohm with the next possible connections:
- Only one:
- 15 Ohm.
- 33 Ohm.
- Series: 48 Ohm.
- Parallel: 10.31 Ohm.
N-EALD. Electrical Network Analyzer Module with Oscilloscope and Data Acquisition
- The network analyzer module allows fulfilling measurements, displaying and analyzing all the parameters of the AC electrical networks. It has an LCD screen and push-buttons for the navigation through the different menus. It includes a specific software for monitoring current and voltage curves, harmonics display, tariffs programming, alarms programming and electrical parameters storage.
- Features:
- Multifunctional three-phase power meter:
- Three-phase and single-phase voltage. Up to 690 VAC L-L.
- Line and neutral nominal current: 10 A.
- Active, reactive and apparent power.
- Suitable frequencies: 25 Hz, 50 Hz, 60 Hz and 400 Hz.
- Display of the V-I vector diagram.
- Supply voltage: 85 – 265 VAC.
- Energy quality control:
- Current and voltage individual harmonics measurement. Up to the 40th harmonic.
- Voltage and THD current, TDD current and K-Factor.
- Maximums and minimums display.
- Waveforms display, 128 samples/sec.
- Events and data storage:
- Harmonics analyzer:
- Voltage and THD current, TDD current and K-Factor, up to the 40th harmonic.
- Current and voltage harmonic spectrum and angles.
- Tariff programming:
- Class 0.5S IEC 62053 – 22, active and reactive power in four quadrants.
- Measurement of the total and per phase three-phase active, reactive and apparent powers.
- Usage time, four energy/demand records of total tariffs.
- Eight tariffs, four seasons and four types of days.
- Automatic daily report of energy consumption maximums and minimums.
- Communications: RS – 485 communication port.
N-MPS. Motor Protection Module.
- ON / OFF switch.
- Limit thermal current: From 1.6 A to 2.5 A.
- Input power terminals: Power input connections: L1, L2, L3.
- Output power terminals: Power output connections: L1, L2, L3.
EMT6/1K. Independent Excitation 3PH Synchronous Motor-Generator, 1 kW.
- Nominal power: 1000 VA.
- Power factor: 0.8.
- Nominal output voltage: 3 x 400 VAC.
- Frequency: 50 / 60 Hz.
- Speed: 3000 rpm.
- Nominal output current: 0.8 A.
- Nominal excitation current: 5 A.
- Shaft height: 71 mm.
EMT7/1K. 3PH Squirrel-Cage Motor, 1 kW.
- Nominal power: 1100 W.
- Nominal voltage: 3 x 230 / 400 VAC Δ/Y.
- Frequency: 50 / 60 Hz.
- Number of poles: 2.
- Speed: 2730 rpm.
- Nominal current: 2.52 / 1.45 A.
- Shaft height: 71 mm.
Elements required (at least one) (Not included):
TPEL/1800W. Single-phase AC/DC Electronic Load.
- The TPEL/1800W electrical load stands out for its versatility in operating in both AC and DC. With a wide power range and an adjustable frequency from 45 Hz to 450 Hz, this electronic source offers exceptional capabilities.
- With its advanced measurement capabilities, 7-inch LCD display, and features such as the built-in oscilloscope, the TPEL/1800W is the ideal solution for laboratory testing of most of EDIBON’s unit such as UPS, inverters, AC power supplies, electrical generators and AC electronic components. In addition, its connectivity via LAN and USB interfaces ensures reliable and fast control, adding an additional level of efficiency to its capabilities.
- Technical Features:
- Frequency Range: 45 Hz~450 Hz.
- Power Range: 0~1.8 kVA.
- Voltage Range: 50-420 Vrms, 15-260 Vrms.
- Parallel Connection/Three Phase Control.
- 7 Inch LCD Display: Provides a clear and accessible interface.
- Oscilloscope Function: Allows display of voltage and current waveforms.
- High Speed AD Sampling: Captures real-time waveforms.
- Measurement Modes: Includes Vrms, Vpk, Vdc, Irms, Ipk, Idc, W, VA, VAR, CF, PF and FREQ.
- Harmonic Measurement.
- AC Electronic Load: DC/CR/CP modes.
- DC Electronic Load: DC/CR/CP/CV modes.
- External Analog Control: 0~10 V analog input, with voltage and current monitoring functions.
- Protection Functions: OTP, OCP, OVP, UVP and OPP.
- Communication Interfaces: LAN and USB, plus external interface for USB flash disk.
RCL-KIT-1. RLC Load with Manual Control Kit.
N-REFT/3C. 3 x 300 W Three-phase Configurable Resistors Module.
- Configurable star and delta connections.
- Three banks with three three-phase resistors.
- Nominal voltage: 400 VAC.
- Nominal power: 3 x (3 x 300) W.
N-INDT/3C. 3 x 300 Var Three-phase Configurable Inductances Module.
- Configurable star and delta connection.
- Inductance: 3 x (3 x 5) H.
- Nominal voltage: 400 VAC.
- Nominal power: 3 x (3 x 100) Var.
- Supply voltage: 230 VAC.
- Common point of normally close/open contacts.
N-CAR19T/3C. 3x300 Var Three-phase Configurable Capacitors Module.
- Configurable star and delta connections.
- Three banks with three three-phase capacitors of 2 μF.
- Nominal voltage: 400 VAC.
- Nominal power: 3 x (3 x 300) Var.
Required elements (Not included):
AEL-PC. Touch Screen and Computer.
- Touch screen:
- Energy efficiency class: A.
- Screen diagonal: 68.6 cm (27 inch (s)).
- Power consumption (operating): 26 watts.
- Annual energy consumption: 38 kWh.
- Power consumption (standby / off) 0.49 watts.
- Screen resolution: 1920 x 1080 pixels.
- Computer:
- Processor number: Intel Core i7-6600U Processor (4M Cache, up to 3.40 GHz).
- Cache: 4 MB Intel Smart Cache.
- Clock speed: 2.6 GHz.
- # Of cores/# of threads: 2/4.
- Max. TDP/Power: 15 W.
- Memory types: DDR4-2133, LPDDDR3-1866, DDR3L-1600.
- Graphics: Intel HD graphics 530.
- Slot for PCI Express.
The complete unit includes as well:
- Advanced Real-Time SCADA.
- Open Control + Multicontrol + Real-Time Control.
- Specialized EDIBON Control Software based on LabVIEW.
- National Instruments Data Acquisition board.
- Calibration exercises, which are included, teach the user how to calibrate a sensor and the importance of checking the accuracy of the sensors before taking measurements.
- Projector and/or electronic whiteboard compatibility allows the unit to be explained and demonstrated to an entire class at one time.
- Capable of doing applied research, real industrial simulation, training courses, etc.
- Remote operation and control by the user and remote control for EDIBON technical support, are always included.
- Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic and Software).
- Designed and manufactured under several quality standards.
- Optional ICAI software to create, edit and carry out practical exercises, tests, exams, calculations, etc. Apart from monitoring user’s knowledge and progress reached.
- This unit has been designed for future expansion and integration. A common expansion is the EDIBON Scada-Net (ESN) System which enables multiple students to simultaneously operate many units in a network.
- AEL-BSGC/CCSOF. Computer Control + Data Acquisition + Data Management Software.
- Cables and Accessories, for normal operation.
- Manuals: This unit is supplied with 7 manuals: Required services, Assembly and Installation, Control software, Starting-up, Safety, Maintenance and Practices manuals.
EXERCISES AND PRACTICAL POSSIBILITIES TO BE DONE WITH THE MAIN ITEMS
- Basic concepts of smart isolated grids.
- Manual control of voltage and frequency of the generator in a smart stand-alone grid.
- Automatic control of voltage and frequency of the generator in a smart stand-alone grid.
- Study of energy requirements and energy generation in a smart stand-alone grid.
- Smart Metering of the generated and transported energy.
- Study of synchronous generator response when a resistive load variation occurs.
- Study of synchronous generator response when an inductive load variation occurs.
- Study of synchronous generator response when a capacitive load variation occurs.
- Synchronization operations with the synchronous generator and the grid.
- Study of energy losses in transmission lines.
- Representation of power generation waves through the data acquisition system.
- Comparison of energy losses according to the line length.
- Visualization and comparison of the reactive load curves with and without power factor compensation.
- Display of measured values of the synchronous generator.
- Display of measured values upstream and downstream of the transmission line for different line lengths and energy losses comparison.
- Plotting of measured values vs time.
- Data processing, analyzing and exporting of generation, lines and load electrical parameters.
