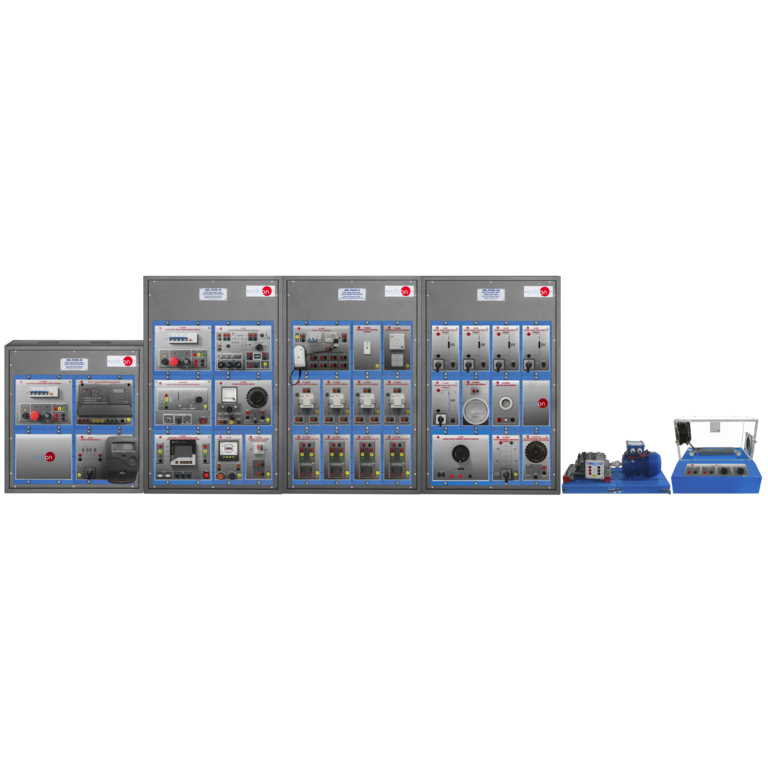

Final User Smart Grid System (AEL-FUSG)
PL-678944
The AEL-FUSG Trainer consists of three main trainers and a set of static and dynamic loads.
- AEL-FUSG-M. Final User Smart Grid - Smart Meter Trainer.
- AEL-FUSG-E. Final User Smart Grid - Smart Energy Trainer.
- AEL-FUSG-N. Final User Smart Grid - Net Metering Trainer.
- AEL-FUSG-LO. Smart Grid Loads.
The Final User Smart Grid - Smart Meter Trainer, "AEL-FUSG-M," developed by EDIBON, provides a practical introduction to the operation of modern utilities within Electrical Grids through an actual Smart Grid System. This trainer allows users to engage with a real Smart Meter, gaining insight into how utilities function in today's smart grid environments.
The AEL-FUSG-M offers a realistic simulation of Smart Grid operations, aimed at deepening user understanding of the roles and mechanisms utilities employ within smart grids. This hands-on experience is designed to facilitate comprehension of current energy distribution and management systems.
The Final User Smart Grid - Smart Energy Trainer, "AEL-FUSG-E," by EDIBON, is a comprehensive trainer simulating the real functions of Home Energy Management Systems. The AEL-FUSG-E Trainer allows users to gain hands-on experience in understanding the workings of smart devices within a smart home or industrial setup, focusing on managing and controlling essential loads.
With this trainer, users can monitor, program consumption schedules, and visualize load profiles using smart devices, all connected via ZigBee wireless communication. This design enables an intuitive learning experience in managing energy-efficient environments, emphasizing the applications of smart grids in modern energy systems.
The "AEL-FUSG-M" trainer by EDIBON enables users to simulate energy sales or consumption of generated power, supporting scenarios such as electricity sales to the grid, net metering, and measurement of power flows in and out of Renewable Energy simulators. Through this trainer, users experience realistic simulations related to net metering, self-consumption, and electricity selling.
For these purposes, the trainer includes a synchronous generator simulating a wind turbine. This simulated turbine’s output is controlled by a voltage regulator, representing generation voltage, and a prime motor that adjusts the turbine's speed to replicate wind velocity. Users control the generation frequency and active power output through a frequency controller.
To facilitate synchronization between the generator and the grid, a synchronoscope is provided, allowing users to study real-world operations, such as net metering, self-consumption, isolated grid mode, and parallel operation mode. Additionally, the trainer includes a network analyzer to monitor key parameters—energy demand by loads, energy supplied by the grid, power from the generator, and energy injected into the grid. All measurements and adjustments are managed in real time via the main module, the N-PFD (Power Flow Distribution Module).
- AEL-FUSG-M. Final User Smart Grid - Smart Meter Trainer.
- N-ALI01. Industrial Power Supply.
- N-CTT. Data Concentrator Module.
- N-SM. Smart Meter Module.
- AEL-FUSG-E. Final User Smart Grid - Smart Energy Trainer.
- N-HPM. Home Power Module.
- N-WLSM. Wireless Light Sensor Module.
- N-WSM. Wireless Switches Module.
- N-IOWM. Wireless Outputs Module.
- N-CON02. 3-Pole Contactor.
- Control and programming software.
- AEL-FUSG-N. Final User Smart Grid - Net Metering Trainer.
- N-ALI01. Industrial Power Supply.
- N-PFD. Power Flow Distribution Module.
- N-EALDG. Network Analyzer Unit with Computer Data Acquisition + Oscilloscope Display.
- N-VREG. Voltage Regulator Module.
- N-ASY. Synchronoscope Module.
- N-REL46. Thermal Electric Motor Protection Module.
- N-VVCA4K. 4 KW Motor Controller Module.
- GMG4K. 4 KW Generator-Group.
- AEL-FUSG-LO. Smart Grid Loads.
- Cables and Accessories, for normal operation.
- Manuals: This unit is supplied with 8 manuals. Required services, Assembly and Installation, Interface and Control software, Starting-up, Safety, Maintenance, Calibration and Practices manuals.
EXERCISES AND PRACTICAL POSSIBILITIES TO BE DONE WITH THE MAIN ITEMS
AEL-FUSG-M. Final User Smart Grid – Smart Meter Trainer:
- Communication process with the data concentrator.
- Remote control of the smart meter relay.
- Real time monitoring of the energy consumed by the loads.
- Power factor comparison with different load combinations using the data concentrator web server.
- Comparison of the energy consumption from the utility point of view (with the platform integrated in the data concentrator) and from the final user point of view (using the smart meter display).
- Power factor correction using capacitor banks. The student can configure different loads and analyze the quality of energy in real time.
- nstantaneous measurement of the current, voltage, active power and power factor.
AEL-FUSG-E. Final User Smart Grid – Smart Energy Trainer:
- Studying the increase in energy efficiency by using capacitor banks to compensate the reactive power of loads.
- Real time monitoring of local consumptions with induction, resistor or capacitive loads.
- Simulation of different consumptions and scheduling of the Home Energy Management System devices by the final customer.
- Study of the optimal load demand and programming the smart devices according to different programming schemes.
- Controlling and programming the loads maximum accumulated consumption.
- Programming the panel´s inputs and outputs.
- Illumination control.
- Temperature control system.
- Programming the moment of the activating of washing machine.
- Remote scheduling of smart devices (Smart relays, thermostat, different sensors, etc.).
- Developing switching schemes for appliances connected to the smart relays or thermostat with the management platform.
Practical exercises of AEL-FUSG-E Trainer with AEL-FUSG-M Trainer:
- Measurement of energy consumption at home or by an industrial consumer and comparison of this measurement with the utility´s register (smart meter).
- Simulation of different consuming periods and scheduling of the Home Energy Management System devices.
- Telemetering of the energy consumed by the loads using the data concentrator platform.
AEL-FUSG-N. Final User Smart Grid – Net Metering Trainer.
- Synchronization operations of the generator.
- Real time monitoring of local consumptions with induction, resistor or capacitive loads.
- Simulation of renewable energy generation through Generator-Motor Group.
- Measurement of the energy generated by the Generator-Motor Group.
- Net Metering. Measuring the energy consumed and the energy injected to the grid and, finally, measuring the positive or negative energy balance.
- Measuring of the energy consumption by the loads without generator.
- Measuring the energy consumption by the loads with the generator and the grid controlling the power flows from the generator.
- Net-Metering operations: selling energy to the grid.
