DI10
Industrial Maintenance

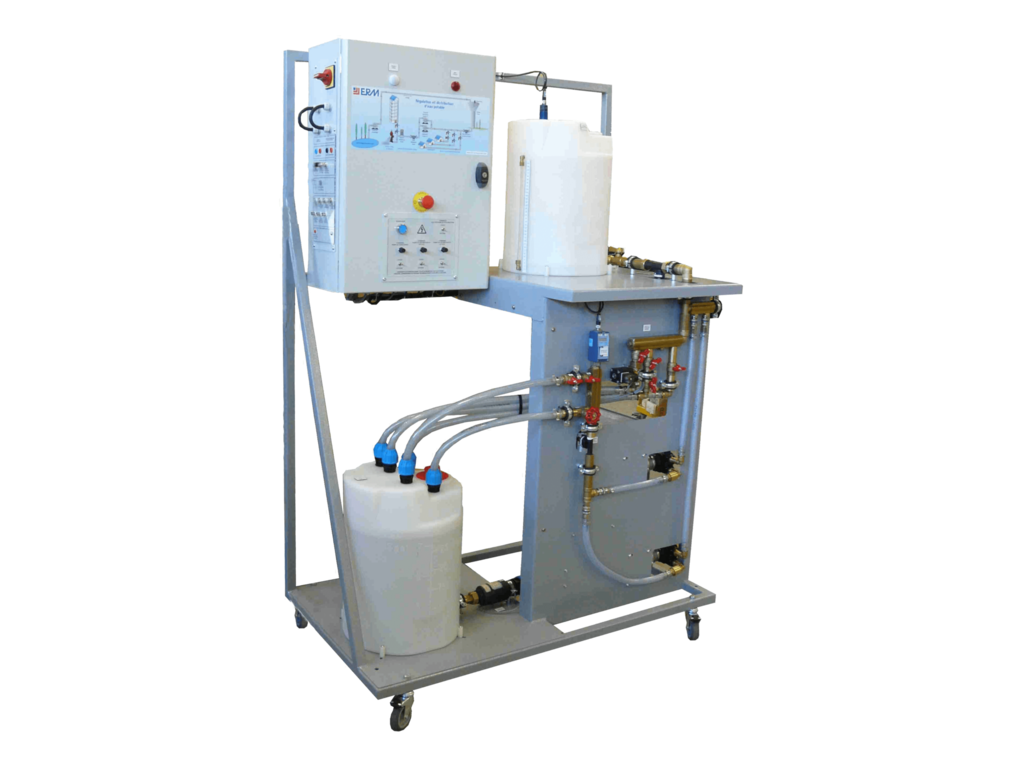

Test bench for level, flow and pressure control in drinking water systems and tanks, perfect for teaching students relevant topics in a hands-on manner.



Features:

  • Process measurements (Water level in the tank by ultrasounds)
  • Tanks (Water tank simulating a natural water reservoir, Storage tank simulating a water tower)
  • Variable-flow pumps (Circulator pump with Brushless motor, Compressor)
  • Valves (Quarter-turn manual valves, Solenoid valve for flow disturbance)
  • Control unit (Labview Interface, Variable speed drive)



Training activities:

  • Functional analysis: drinking water storage and distribution systems
  • Measurement principles (physical laws, sensors, transmitters..)
  • Variable-flow pumps
  • Identification of a stable open-loop and closed-loop system
  • Unstable OL and CL systems
  • Simple water level control, responding to a set point change, responding to disturbances
  • Integrator level control
  • Pressure and flow control, split-range control
  • Energy saving in drinking water systems management



Product advantages:

  • Ideal for studying process instrumentation, water level regulation, flow control and pressure regulation
  • Simple and complex regulation systems
  • System based on an actual application (Drinking water distribution with water tower)



Reference numbers:

  • DI10 Drinking water control and distribution training system
  • DI11: Complex water control and forced feed (flow/pressure) of drinking water (Optional)
  • DI15 USB datalogger with analog and on/off inputs and outputs
  • AQ11: Differential voltage probe for USB data logger
  • AQ13: Current clamp (AC and DC) for USB data logger



Technical Specifications:

  • Level (ultrasonic), pressure and flow (vortex) control
  • Tanks (water tank simulating a natural water reservoir, storage tank simulating a water tower)
  • Variable flow pumps
  • Valves (¼-turn manual valves, solenoid valve for flow disturbance)
  • Control unit (LabVIEW interface)
  • Control on stable / instable systems, open- / closed-loop, simple control, split-range

Level (ultrasonic), pressure and flow (vortex) control
Tanks (water tank simulating a natural water reservoir, storage tank simulating a water tower)
Variable flow pumps
Valves (¼-turn manual valves, solenoid valve for flow disturbance)
Control unit (LabVIEW interface)
Control on stable / instable systems, open- / closed-loop, simple control, split-range

Voltage availability
220-240V
Production lead time
70 days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
No
