PL-210552
Reviews
Not reviewed yet
Producer
ERM
Content languages
English , French
Certification labels
CE
Warranty
24
Producer product code
PP30
Industrial Maintenance

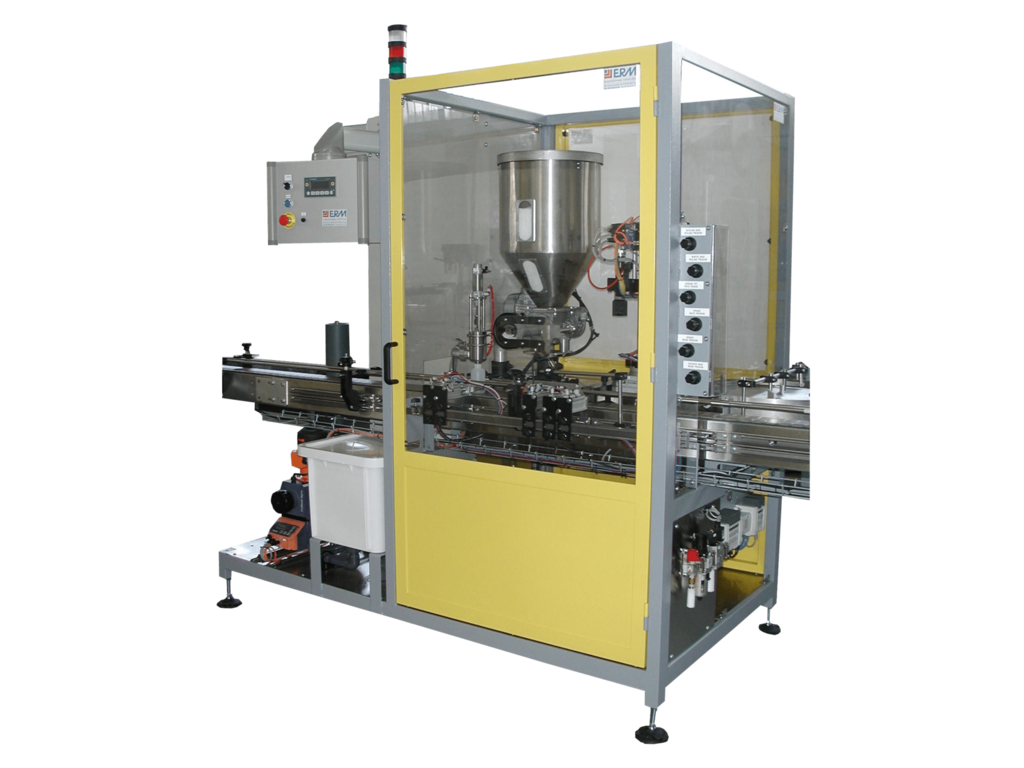

Multiformat packaging machine: Filling and capping for liquids / pellets in bottles / jars - for educational training purposes.



Features:

  • PLC and HMI (color display touch screen operator panel)
  • Conveying (slat band chain)
  • Liquid packaging (diaphragm pump) and pellet packaging (worm gear dispenser)
  • Gripping (gripping/screwing head)
  • Industrial Communication (Ethernet, ASi) and supervision
  • Electrical energy (low-voltage switchgear, speed drive, motor)
  • Pneumatics (venturivalve, air treatment system, ASidistributors, pneumatic motor, cylinders…)
  • Sensors (Reed switch, inductive, photoelectric, capacitive, optical fiber)



Training activities:

  • Functional analysis, studying the technologies used and constructive solutions (3D-modeling on Solidworks)
  • System operationand format change
  • System performance analysis
  • Assembly, disassembly and adjustments of the operating part
  • Designing and updating a maintenance operations file
  • Partial or total programming of the operating cycle
  • Preventive and corrective maintenance(electrical and mechanical troubleshooting)



Key points:

  • Heavy duty system(mechanically-welded steel base…)
  • Centralized pneumatic adjustments
  • Study of the dosing of liquid, paste, semi-pasty and granulate productson asingle system



References:

  • PP30-PP38: Polyprod
  • UC13 : Supervision
  • PP34 : ASi programming case
  • PP35 : Wiring kit for Asi detection and alarm
  • PP33 : Maintenance parts for the rotary table and the granulate filler
  • MN11 : Polyprod programmable 3D simulator
  • AE10 : PLC Schneider M340 with Asi bus and touch screen operator panel





Technical Specifications:

  • Schneider M340 PLC & HMI Siemens KTP700
  • ASi communication towards sensors and valves
  • Volumetric dosing (diaphragm pump) for liquids
  • Worm gear dispenser for pellets
  • Gripping head (pneumatics)
  • Screwing head
  • Reed switch, inductive, photoelectric, capacitive and optical fiber sensors
  • Supervision
  • Digital twin (Virtual Universe Pro)

Schneider M340 PLC & HMI Siemens KTP700
ASi communication towards sensors and valves
Volumetric dosing (diaphragm pump) for liquids
Worm gear dispenser for pellets
Gripping head (pneumatics)
Screwing head
Reed switch, inductive, photoelectric, capacitive and optical fiber sensors
Supervision
Digital twin (Virtual Universe Pro)





Voltage availability
220-240V
Production lead time
80 days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
No
