PL-698289
Reviews
Not reviewed yet
Producer
ERM
Content languages
English , French
Certification labels
CE
Warranty
24
Producer product code
OM50
Industrial Maintenance

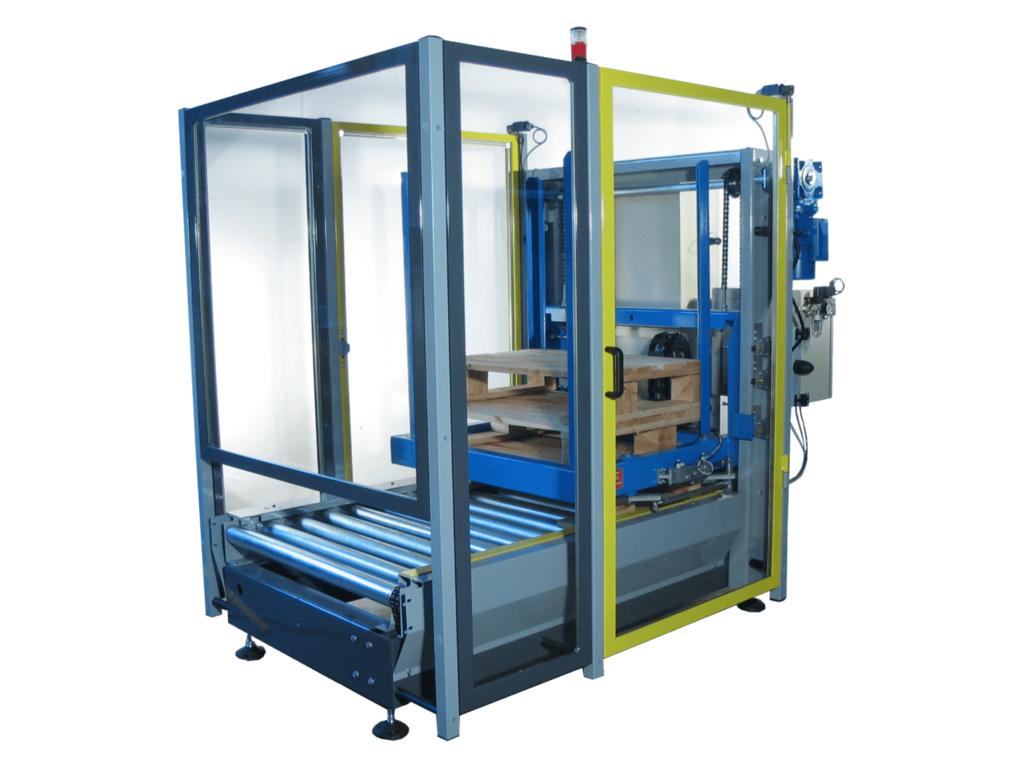

Stacking and unstacking of pallets



Features:

  • PLC and HMI (switches or operator panel)
  • Displacement (vertical axis, roller conveyor)
  • Gripping (cleat)
  • Industrial Communication (Ethernet) and supervision
  • Electrical energy (low-voltage switchgear, motor)
  • Pneumatics(filter and regulator, distributor, cylinders)
  • On/off hydraulics(power pack, distributors, cylinders)
  • Sensors (reed switch, linear position sensor)



Training activities:

  • Functional analysis, studying the technologies used and constructive solutions (3D-modeling on Solidworks)
  • Adjustments and automatic or manual system control
  • Assembly, disassembly and changing the vertical axis technology(3 kits)
  • Connecting actuators and sensors
  • Developing and updating a maintenance operations file
  • Programming and studying Grafcet/SFC
  • Preventive and corrective maintenance(electrical and mechanical failure diagnostics)
  • Improvements(e.g.: Integrating components)
  • System performance analysis, static or dynamic tests



Key points:

  • Heavy duty system also used by industries
  • 3 different technologies covered on a single system (Electrical, Pneumatics, Hydraulics)



References:

  • OM50 + AC51 : Mechanical unit and test panel
  • AC60 :Standard control cabinet (Schneider version)
  • AS60 :Standard control cabinet (Siemens version)
  • KE50 : Electrical kit -KP50: Pneumatic kit
  • KH50 : Hydraulic kit
  • UC13 : Supervision



Technical Specifications:

  • PLC (Siemens or Schneider) & HMI
  • Electric, hydraulic or pneumatic vertical axis (3 different technologies on a single system)
  • Roller conveyor
  • Pneumatic cleats for the pallets gripping
  • Sensors (reed switch, linear position)
  • Supervision
  • Digital twin (Virtual Universe Pro)

PLC (Siemens or Schneider) & HMI
Electric, hydraulic or pneumatic vertical axis (3 different technologies on a single system)
Roller conveyor
Pneumatic cleats for the pallets gripping
Sensors (reed switch, linear position)
Supervision
Digital twin (Virtual Universe Pro)





Voltage availability
220-240V
Production lead time
80 days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
No
