PLC Training Kit - Basic (PH - Basic)
PL-537844

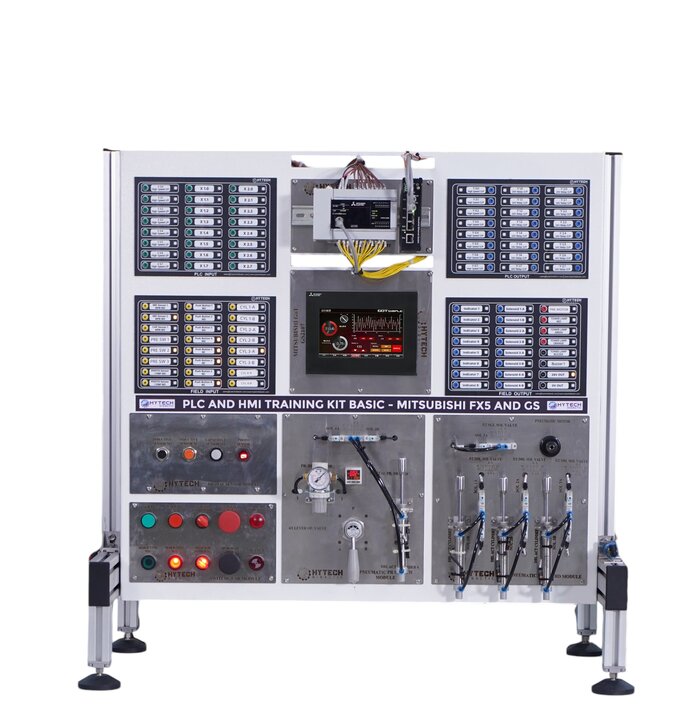

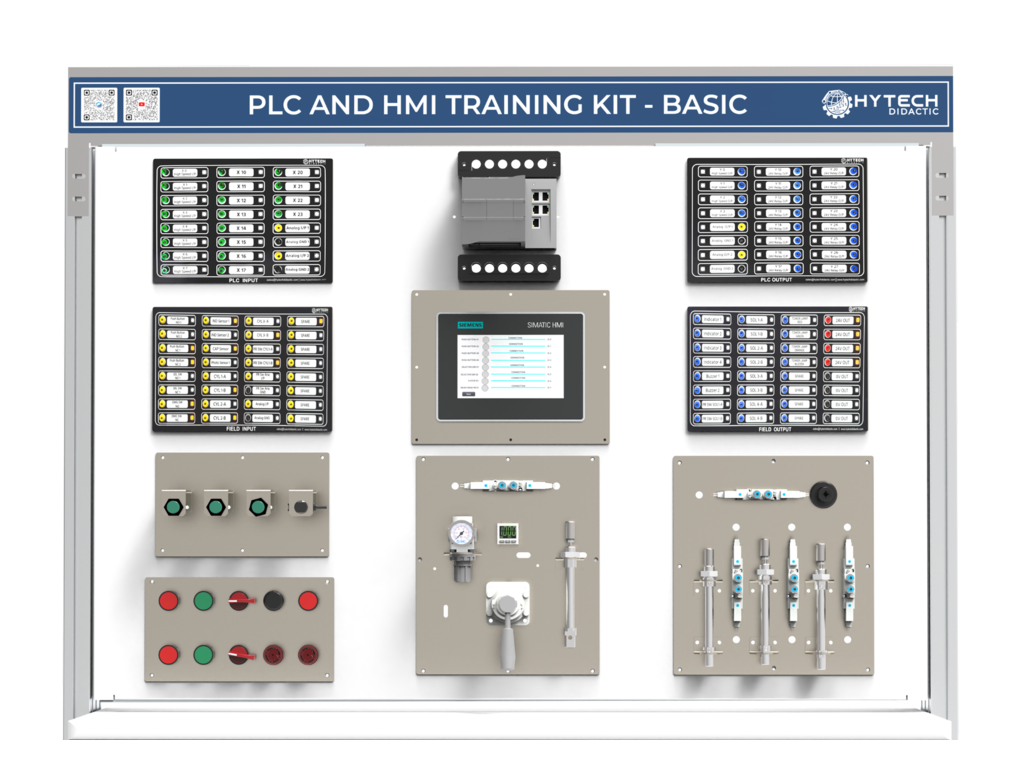

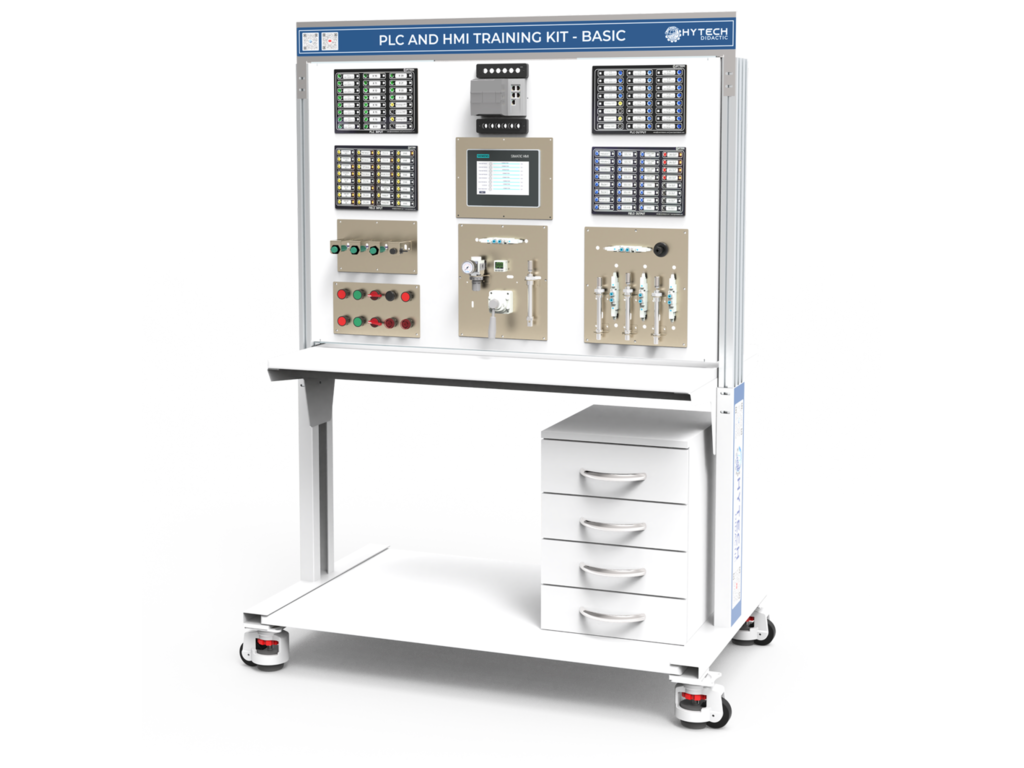

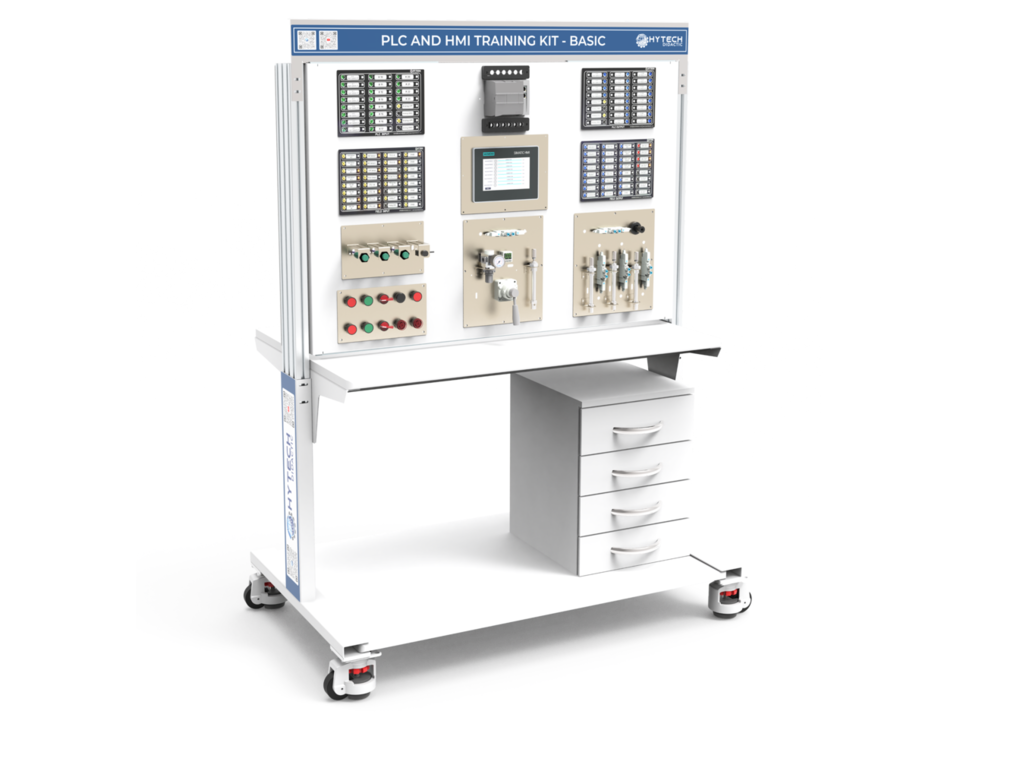

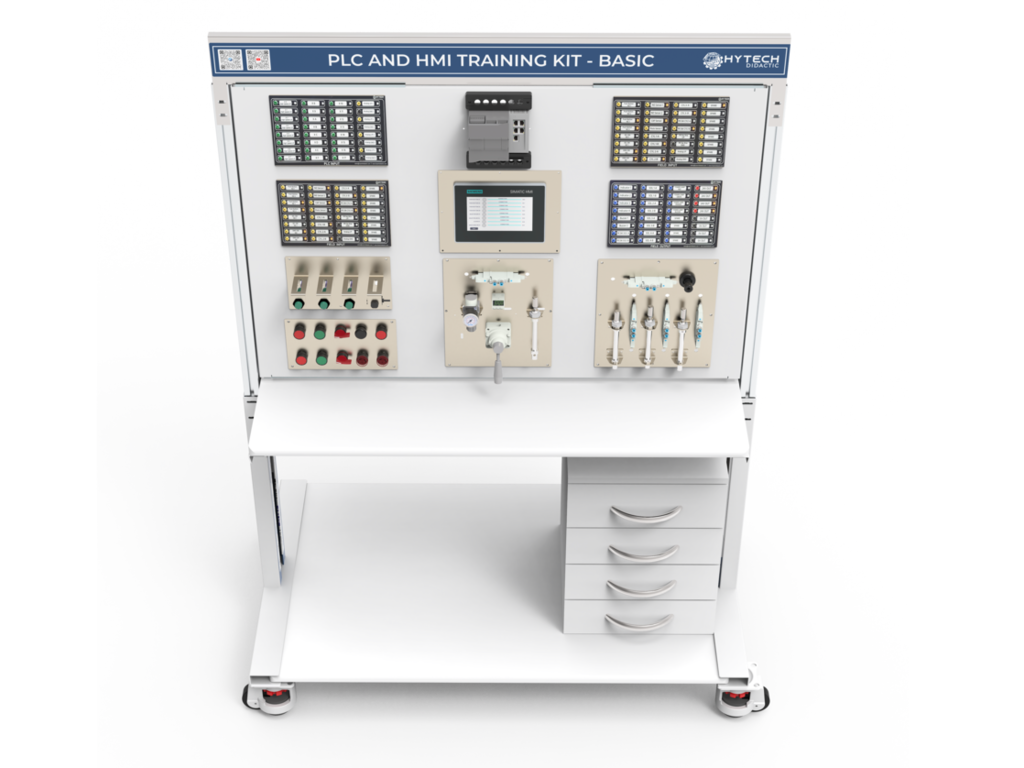

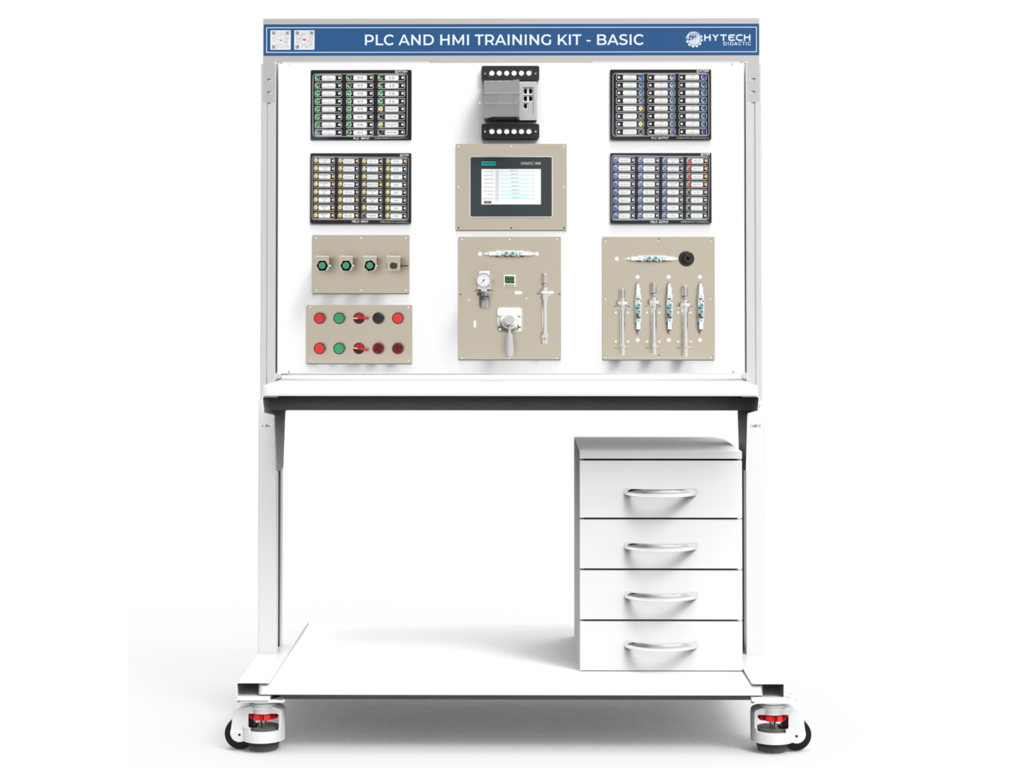

PLC and HMI Training Kit – Basic Model is a tabletop training kit with entry level PLCs such as Siemens S7 1200 or Mitsubishi FX 5 or Allen Bradley Micrologix. The basic training kit is provided with PLC – HMI, Input and Output modules as well as few fixed dynamic automation modules. Al portable dynamic automation modules as well as static automation modules can be integrated with this Basic Training Kit. Training kit is designed to provide hands on experience on the basic or entry level PLC and HMI. Students who are new to PLC and HMI training courses are first exposed to this basic training kit before they move further to Advance PLC and Mechatronics courses. Total Dimensions of the Training Kit: Width: 1100mm Depth: 700mm Height: 910mm Approximate Weight: 44 KG In some special cases, Basic training kit is provided with a floor mounted structure. In that case, dimensions of the training kit are as follows: Width: 1200mm Depth: 800mm Height: 1610mm This structure is provided with castor wheels as well as MDF based horizontal work surface. List of PLC and HMI related modules: 1. PLC (Siemens S7 1200 / Mitsubishi FX / Allen Bradley MicroLogix) 2. HMI – Basic 7 Inch (Siemens / Mitsubishi / Allen Bradley) 3. 5 Port Unmanaged Switch (Siemens / Mitsubishi / Allen Bradley) List of Dynamic Automation Modules that are fixed on the training kit: 1. Switchgear Module 2. Digital Sensor Module 3. Pneumatic Pressure Switch Module (Analog) 4. Pneumatic Solenoid Module Above mentioned modules are fixed on the Basic training kit whereas the following mentioned portable dynamic modules can be integrated with the training kit: 1. Portable Automation Module: DC Motor and Encoder 2. Portable Automation Module: AC Motor Speed Control through VFD and PLC using HMI 3. Portable Automation Module: Temperature Control Module (Analog Control) 4. Portable Automation Module: Servo Motor Module 5. Portable Automation Module: Load Cell with Digital Display Module (Analog Control) 6. Portable Automation Module: Conveyor Control Module
Hytech PLC and HMI Training Kits (Mitsubishi) Sr No Description Qty Make 1 Tabletop PLC and HMI Training Kit Structure (PH Basic) 1.1 Tabletop PLC Training Kit Structure (PH Advance) 1 NA Dimensions / Footprint: 1100 x 700 x 910 (Height)mm Rigid mounting arrangement 2 Mitsubishi FX5 and GS2107 2.1 FX5U-32MT/ESS - PLC with 16DI/16DO 1 Mitsubishi 2.2 FX5-8AD - Analog Input 8 CH 1 Mitsubishi 2.3 FX5-40SSC-S - Position Card 4 Axes 1 Mitsubishi 2.4 GS2107-WTBD - Mitsubishi HMI 7" 1 Mitsubishi 2.5 Power supply and control panel for PLC 1 Reputed Make 2.6 PLC Input module with input override switches (24 inputs) 1 HYTECH 2.7 Field input module (24 inputs) 1 HYTECH 2.8 PLC output module (24 outputs) 1 HYTECH 2.9 Field output module (24 outputs) 1 HYTECH 2.10 2mm Patch cord connector set 1 set NA 3 Switch Module (Unmanaged) 3.1 5 Port Unmanaged Switch 1 Reputed Make 3.2 Profinet cable for PLC to Switch communication 1 Siemens 3.3 Profinet cable for HMI to Switch communication 1 Siemens 4 Sensor Module (Digital) 4.1 Capacitive Sensor (PNP, NO Type) 1 BALLUFF / Omron 4.2 Photo Sensor (PNP, NO Type) 1 BALLUFF / Omron 4.3 Proximity Sensor (PNP, NO Type) 1 BALLUFF / Omron 4.4 Proximity Sensor (PNP, NC Type) 1 BALLUFF / Omron 5 Switchgear Module 5.1 Push Button (NO Type) 1 Schneider / Siemens 5.2 Push Button (NC Type) 1 Schneider / Siemens 5.3 Selector Switch (NO Type) 1 Schneider / Siemens 5.4 Selector Switch (NC Type) 1 Schneider / Siemens 5.5 Emergency Switch (Mushroom Head) 1 Schneider / Siemens 5.6 Mushroom Head Push Button (For Both Hand Operation) 1 Schneider / Siemens 5.7 Indicators (Red and Green) 1 Reputed Make 5.8 Buzzers 1 Reputed Make 6 Automation Module: Pneumatic Operation with Solenoid valves and Cylinders 6.1 Double Acting Solenoid Valve 3 SMC / Festo 6.2 Single Acting Solenoid Valve 1 SMC / Festo 6.3 Double Acting Pneumatic Cylinder (Stroke: 30mm) 3 SMC / Festo 6.4 Pneumatic Motor 1 Reputed Make 6.5 Pneumatic Junction box (5 Port) 1 SMC / Festo 6.6 Pneumatic Pushpull connectors for pneumatic components 1 set Reputed Make 7 Automation Module: Pneumatic Pressure Switch Application (Analog Control) 7.1 Pneumatic Pressure Switch with digital display and analog output 1 SMC / Festo 7.2 5/3 Way hand lever operated pneumatic valve 1 SMC / Festo 7.3 5/2 way double acting solenoid valve 1 SMC / Festo 7.4 Double acting cylinder with reed switches 1 SMC / Festo
