PL-508978
Reviews
Not reviewed yet
Producer
Content languages
English
Certification labels
Warranty
12
Producer product code
AA205.000.03
Mechatronics

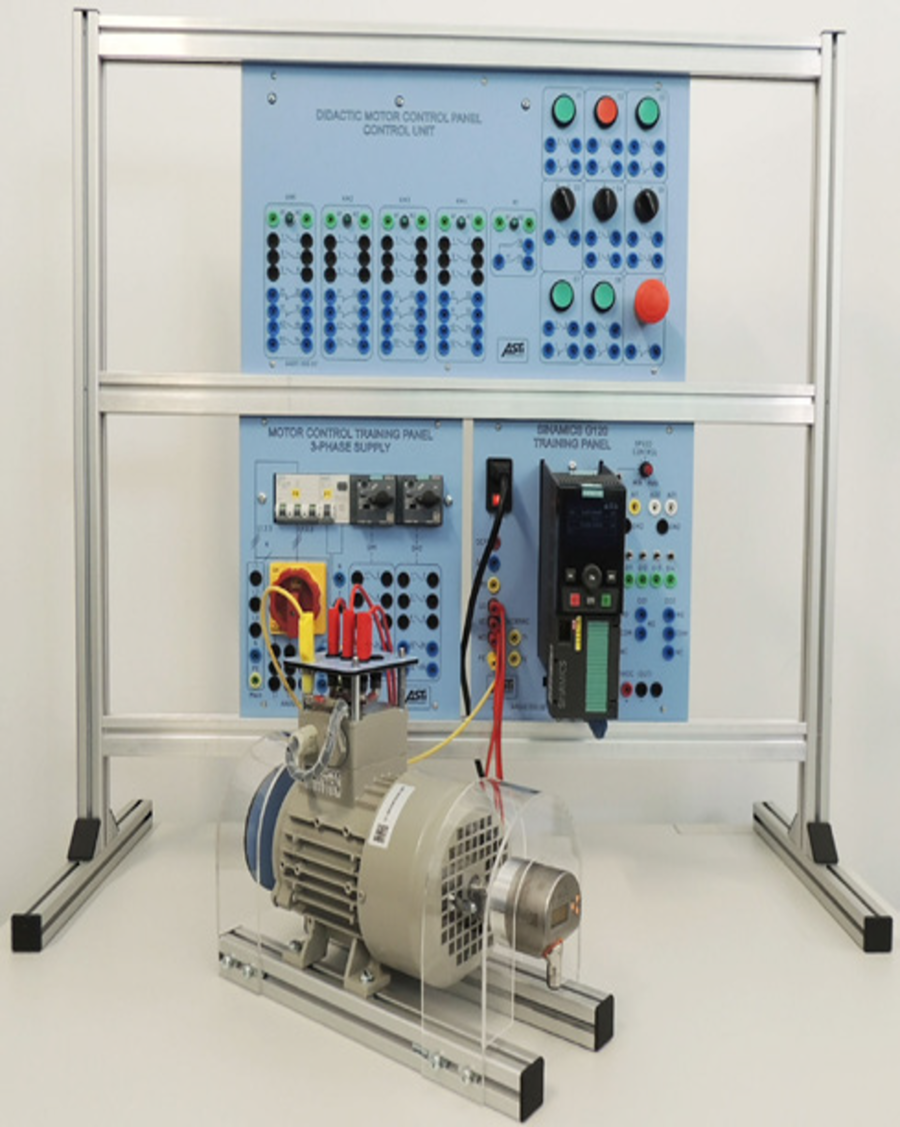

TRAINING SYSTEM for SIEMENS AC Motor & IFM ENCODER & Drive (G120) includes:

AA017.100.09 - ASYNC. MOTOR 0.37 KW SIEMENS w/ IFM encoder; SIEMENS AC MOTOR 0.37kW SIMOTICS GP Motor type: Low-voltage motor, IEC Squirrel-cage rotor,self-ventilated, IP55, temperature class 155(F); aluminum housing High Efficiency IE2,  4-pole *size 71M * 0.37 kW(50 Hz)  3 AC 50 Hz 400 VD/690 VY  IM B 3, without motor protection.

IFM INCREMENTAL ENCODER PERFORMANCE (ROP522)

AA042.000.02 - SINAMICS G120 -1AC 230 V - TRAINING PANEL SINAMICS G120 CONSISTING OF CU250S-2 PN, PM240- 2 FSA WITHOUT FILTER, 1/3 200-240V 4,2A ; 0,75KW LO 1/3 200-240V ; 3,2A ; 0,55KW , Intelligent Operator Panel It includes sockets for connection to the driven motor, for DI/AI signals, potentiometer for adjusting the frequency SP.

AA010.000.02 - Motor Control Training Panel 3-PHASE Supply:

  • SIEMENS emergency STOP witch 3-pole, SIEMENS circuit breaker (400V 6KA, 3-POLE, C, 10A)
  • SIEMENS FI/LS-protector type AC, SIEMENS circuit-breakers for mototr protection
  • SIEMENS auxiliary switches 1NO + 1NC, sockets for eletrical connections

AA011.000.02 - Motor Control Training CONTROL UNIT:

  • SIEMENS contactors (3 KW/400 V AC, 1 NO, AC 230 V, 50/60 HZ)
  • SIEMENS auxiliary switch blocks2NO+2NC;  - SIEMENS emergency STOP mushr.pushbutton
  • SIEMENS pushbuttons with flat button with holder (green/red)
  • SIEMENS actuator/indicator component contact blocks 1NO+1NC; SIEMENS selector switches with holder black
  • SIEMENS actuator/indicator component contact blocks 1NO
  • SIEMENS selector switches with holder black, sockets for electrical connections

AA200.000.03 -Table-Top Stand for Training Panels

STAND (W x H x D : 910 x 800 x 370) mm

SIZE (W x H x D): 910 x 800 x 370  mm

NET WEIGHT: 18.5 Kg

THE PACKAGE ALSO INCLUDES: Power cable, 3Phase Power cable, Ethernet cable, User manual

RECOMMENDED ACCESSORIES: Safety connection cables 4 mm

STAND (W x H x D : 910 x 800 x 370) mm

SIZE (W x H x D): 910 x 800 x 370  mm

NET WEIGHT: 18.5 Kg

THE PACKAGE ALSO INCLUDES: Power cable, 3Phase Power cable, Ethernet cable, User manual

RECOMMENDED ACCESSORIES: Safety connection cables 4 mm

Voltage availability
220-240V
Production lead time
days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
No
