Ball Selection Workstation (AE-PLC-SLB)
PL-266000

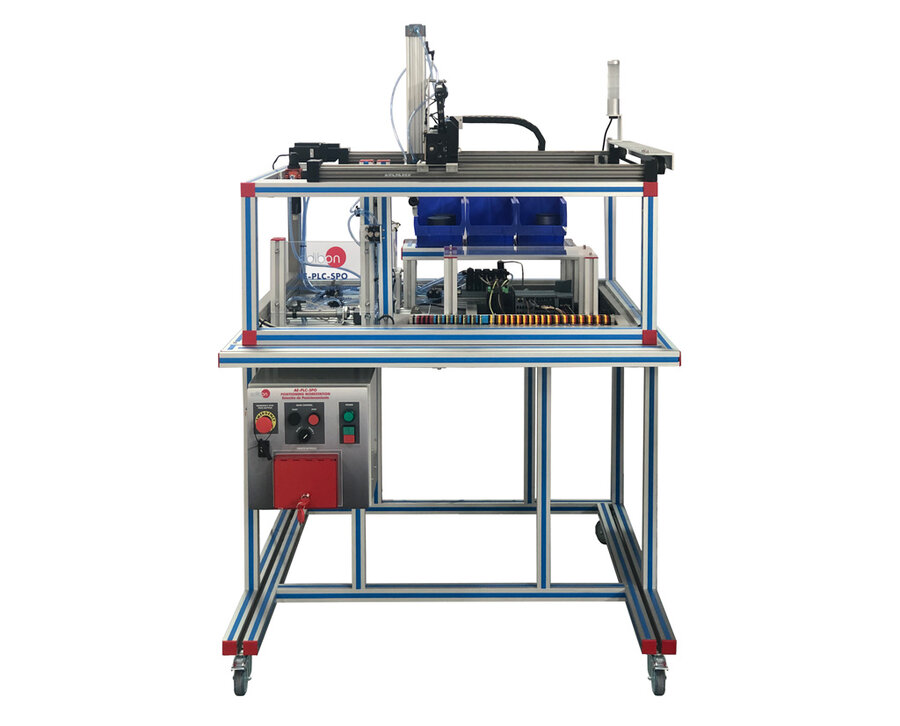

The “AE-PLC-SLB” is a modular ball selection system commanded by a PLC, designed to classify balls according to color and material. Balls are detected as they arrive at the collection point, and based on the data gathered by various sensors, pneumatic actuators guide each ball to its corresponding container. The system integrates real industrial components, such as reed sensors, presence and inductive sensors, and a rotary table with 8 positions, offering a realistic and educational environment.
The main elements of the system include a PLC with CPU and expansion modules, a control panel with start/stop buttons, emergency and reset buttons, and light indicators, as well as a complete pneumatic circuit with solenoid valves, pressure regulators, filters, and actuators to ensure precise and reliable operation. The “AE-PLC-SLB” is structured to enhance learning by clearly separating sections like air treatment, parts feeding, verification, and sorting, each equipped with adjustable valves and pilot-operated check valves for speed and position control.
A signaling tower with green, yellow, and red LED lights indicates the system status in real time. The solenoid valve block contains 12 valves: two 3/2 monostable, six 5/2 monostable, and four 5/2 bistable solenoid valves. Additionally, the electrical terminal block includes clearly labeled and color-coded terminals for easy identification and manual testing of each signal.
Finally, the “AE-PLC-SLB” can operate independently or in conjunction with other stations to form a complete Flexible Manufacturing System (FMS), making it a powerful tool for automation and industrial control training.
- AE-PLC-SLB. Unit:
- Table with four wheels with brakes mounted with aluminum profiles.
- Programming software PLC:
- Programming software developed according to the norm IEC 61131-3.
- Compatible with Windows operating systems.
- 5 programming languages:
- Ladder diagram (LD).
- Structured text (ST).
- Instructions list (IL).
- Sequential function chart (SFC).
- Function block diagram (FBD).
- Programming, service and remote diagnostics.
- Minimun program size.
- Powerful debugging and monitoring tools.
- Support for user-created functions and function blocks.
- Save Project files in plc.
- Quick start tutorial example included.
- Electrical panel:
- Differential magneto-thermal switch.
- Power supply of 24 VDC.
- Control panel:
- Mushroom head emergency stop push button switch.
- Start and Stop pushbuttons.
- Switch for manual or automatic operation.
- Light indicator.
- Led stack light.
- Fault Injection Key Box Module:
- Red key box module with 20 switches inside.
- 2 DB37 connectors.
- Each fault is generated via toggle switches.
- Pneumatic circuit:
- Air treatment unit:
- Filter-regulator with water trap.
- Manometer with double scale indicator.
- 8 flow control valves.
- Rotary pneumatic actuator.
- Pneumatic solenoid valves 5/2 monostable.
- 3 double acting pneumatic actuators.
- 3 pneumatic solenoid valves 5/2 bistable.
- Individually identified tubes and push in fittings.
- Sensors:
- Color sensor.
- 6 reed effect limit switches.
- 2 capacitive sensors.
- Inductive sensor.
- Cables and Accessories, for normal operation.
- Manuals: This unit is supplied with 7 manuals: Required services, Assembly and Installation, Control software, Starting-up, Safety, Maintenance and Practices manuals.
EXERCISES AND PRACTICAL POSSIBILITIES TO BE DONE WITH THE MAIN ITEMS
- Introduction to the flexible manufacturing system: Identification of unit components.
- Introduction to pneumatics and electro-pneumatics: Identification of components.
- Configuration of a pneumatic application.
- Operation of pneumatic system: Introduction to pneumatic actuators.
- Study of sensor detection.
- Manual control and study of inductive and color sensors.
- Industrial application of a ball sorting system.
- Modification of elevator process parameters and process time optimization.
- Fault inserted analysis and diagnosis.
