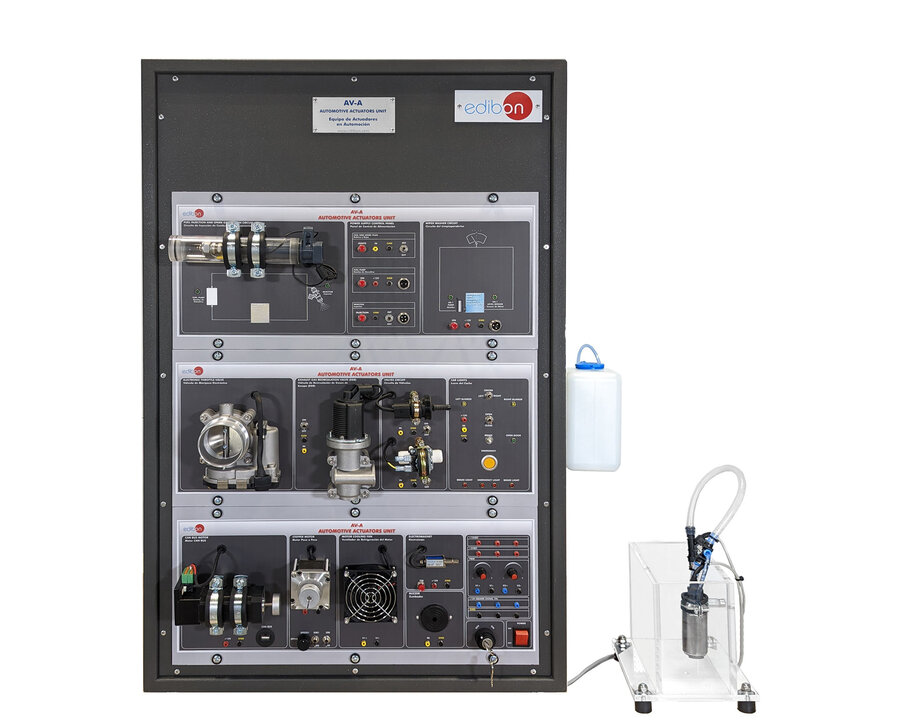

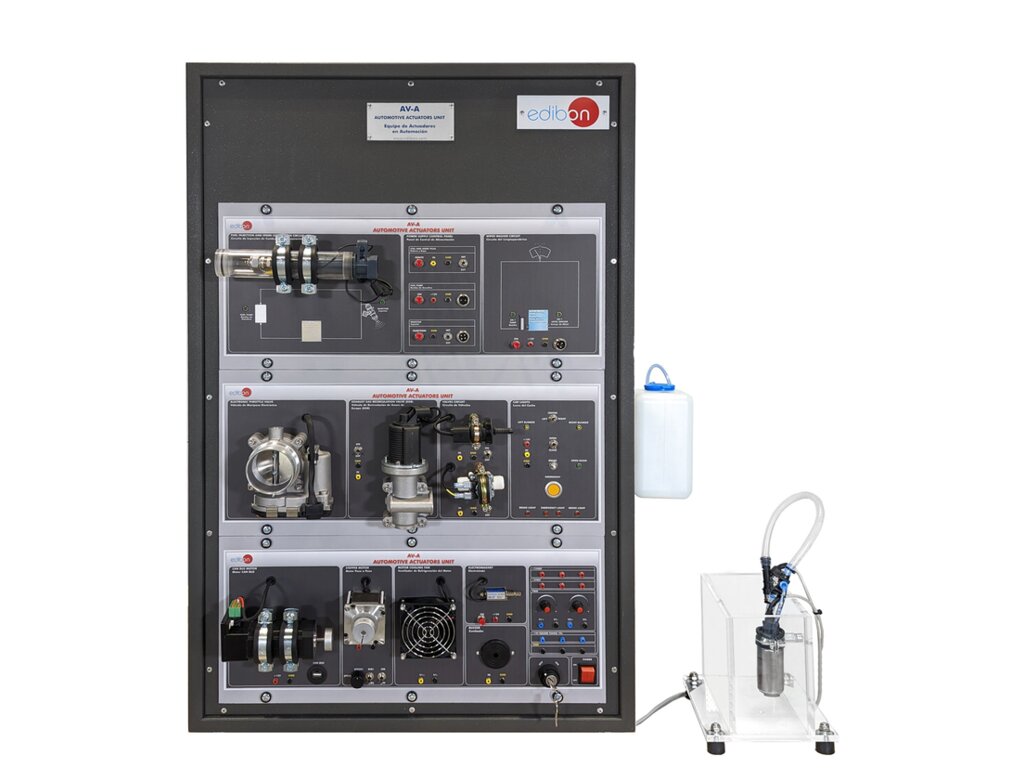

Automotive Actuators Unit (AV-A)
PL-578835
The Automotive Actuators Unit, “AV-A”, is a hands-on training solution designed to teach the operation and functionality of automotive actuators commonly found in modern vehicles.
The “AV-A” unit includes real-world automotive components and actuators that allow students to carry out practical exercises aimed at understanding the principles of automotive actuator technology and control systems.
This unit covers essential actuator applications, including engine ignition systems, DC electrical systems, motor-driven components, solenoids, and electromagnetic devices used in today’s cars.
Each actuator circuit in the unit is electrically isolated to allow students to study each function independently. All actuator circuits include clearly marked 2 mm lab socket connectors for easy and safe signal access during experiments.
The “AV-A” unit can function independently, but it also offers the possibility of integration with the “AV-ECD” Automotive Electronic Control Device Unit, enabling control via an actual automotive ECU.
The system supports a wide range of signal types, including analog, digital, PWM (Pulse Width Modulation), and CAN bus communication, providing students with real-world experience in automotive signal processing and actuator control.
- AV-A. Unit:
- Engine management system:
- Ignition coil.
- Spark plug.
- Fuel injection solenoid.
- Exhaust gas recirculation (EGR) valve.
- Electronic throttle valve.
- Canister-purge solenoid valve.
- Fuel pump.
- Motorized systems:
- DC motor:
- Potentiometer to measure the DC motor position.
- Motor rotation control switch.
- Knob to adjust the DC motor position.
- Knob to adjust the DC motor speed.
- CAN bus control circuit.
- Stepper motor:
- Motor supply: 5 VDC.
- Motor power: 10 W.
- Three configurable speeds.
- Motor control in both directions.
- Cooling fan:
- Motor supply: 12 VDC.
- Speed cooling: PWM (pulse width modulation).
- Wiper washer pump: Motor supply: 12 VDC.
- Car lighting system:
- Car emergency pushbutton and car emergency lights.
- Direction switch and direction indicator lights.
- Brake push-button and brake lights.
- Open-door push-button and open-door indicator light.
- Car horn system: Buzzer.
- 12 VDC solenoid valve: ON / OFF control.
- PWM control (pulse width modulation).
- 12 VDC electromagnet: ON / OFF control.
- DC power supply: Circuit with an electric car key-switch to supply 12 VDC to the circuit
- Cables and Accessories, for normal operation.
- Manuals: This unit is supplied with the following manuals: Required Services, Assembly and Installation, Starting-up, Safety, Maintenance and Practices manuals.
EXERCISES AND PRACTICAL POSSIBILITIES TO BE DONE WITH THE MAIN ITEMS
- Actuators involved in the engine ignition systems.
- Function of the exhaust gas recirculation (EGR) valve.
- Understanding the function of the throttle valve or electronic throttle valve.
- Function of the canister purge solenoid valve.
- Function of the fuel pump and injector.
- Motorized systems in the automotive field.
- Cooling fan speed control with PWM signal.
- Wiper washer pump flow control.
- Operation of the car horn.
- Function of the electromagnet.
- Car lighting system control.
- Several other exercises can be done and designed by the user.
