Automotive Fundamental Electronic Circuits Unit (AV-EC)
PL-707105

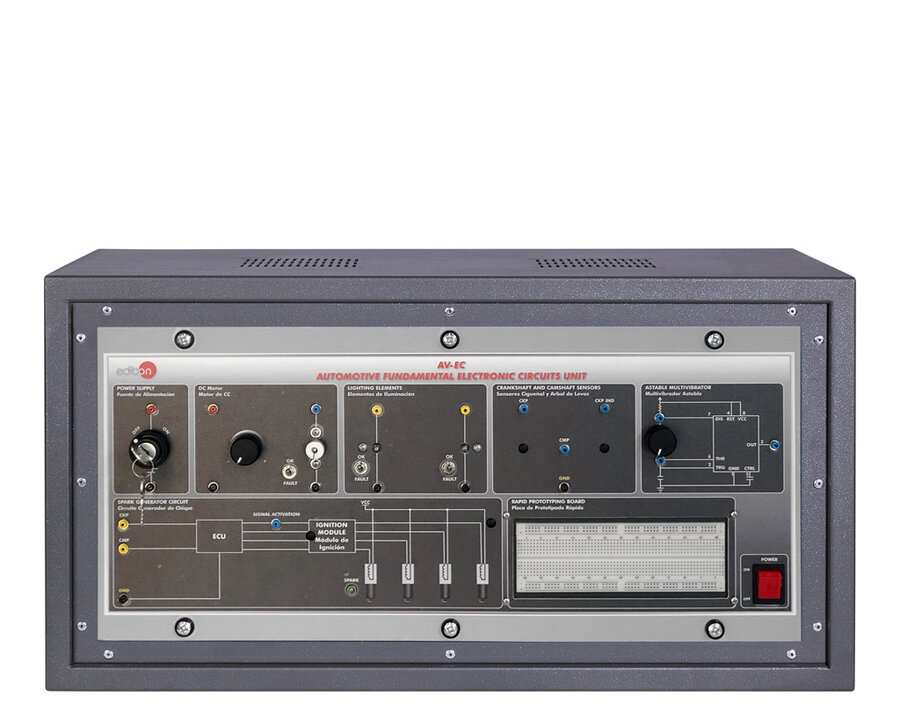

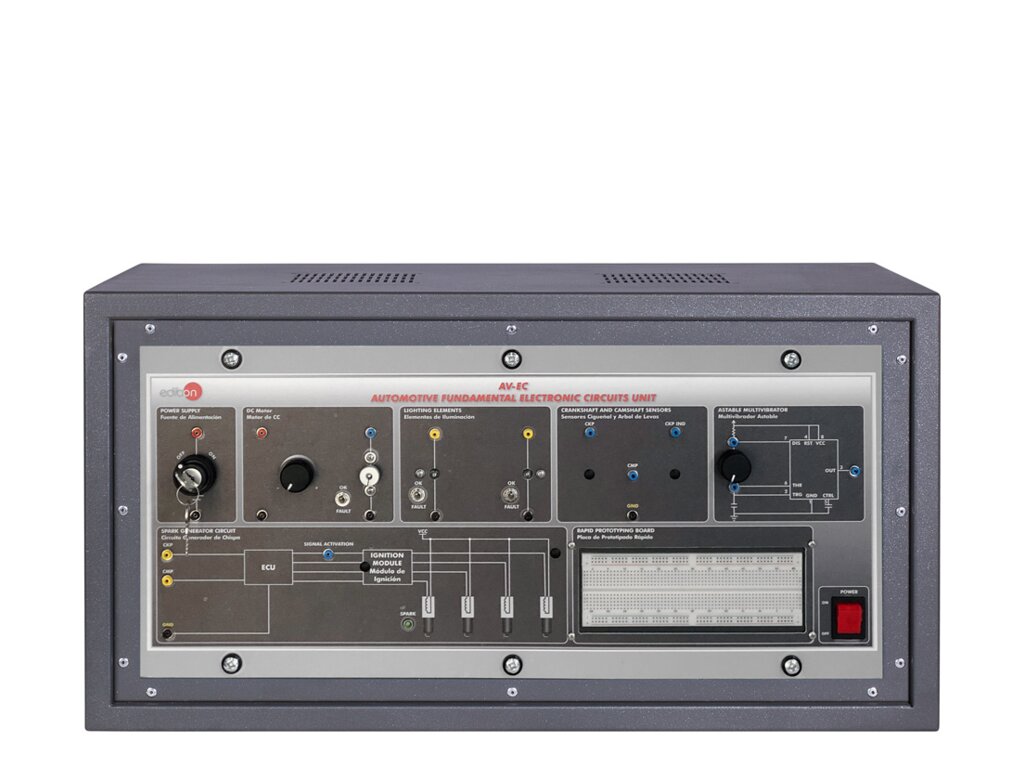

The Automotive Fundamental Electronic Circuits Unit, “AV-EC”, offers a practical introduction to automotive electronics through a selection of common circuits used in modern vehicles.
The circuits in the “AV-EC” unit focus on key automotive functions, such as DC motor power supply and speed control, lamp light intensity regulation, automotive DC power supply, pulse generator circuits, spark generator circuits with contact breakers, transistorized spark generators using Hall effect sensors, and semi-controlled and fully electronic spark generation systems. Each circuit in the unit is isolated to facilitate understanding of individual functions. Test points for each circuit are accessible via standard 2 mm lab sockets for easy measurements and diagnostics.
The “AV-EC” unit also includes built-in faults that can be introduced to various components, enabling students to identify and analyze typical electronic failures found in automotive systems.
This unit comes with a comprehensive set of practical exercises designed to help students grasp the operation of fundamental electronic circuits used in the automotive industry.
- AV-EC. Unit:
- DC motor circuits:
- DC motor power supply.
- DC motor speed control.
- Lamp circuits:
- Lamp resistance.
- Light intensity variation.
- DC power supply: Circuit with a car key-switch to supply 12 VDC to the circuit.
- Electronic ignition circuits:
- Adjustable astable multivibrator circuit with 555IC.
- Camshaft and crankshaft sensor emulator using electrical signals.
- Spark generator system controlled electronically and Hall sensor.
- Protoboard plate:
- Protoboard plate for experimental circuit mounting without soldering.
- Components to mount an adjustable astable multivibrator circuit with 555IC
- Cables and Accessories, for normal operation.
- Manuals: This unit is supplied with the following manuals: Required Services, Assembly and Installation, Starting-up, Safety, Maintenance and Practices manuals.
EXERCISES AND PRACTICAL POSSIBILITIES TO BE DONE WITH THE MAIN ITEMS
DC motor circuits:
- Switching the DC motor power supply.
- Adjusting the DC voltage to control the motor speed.
- Analysis of a DC motor power supply fault.
Lamp circuits:
- Lamp resistance.
- Light intensity variation.
DC power supply:
- Circuit with a car key-switch to supply 12 VDC to the circuit.
Electronic ignition circuits:
- Study of the function of the 555 integrated circuit (timer).
- Analysis of a 555 timer fault.
- Spark generator system controlled electronically and Hall sensor.
- Analysis of a faulty spark generator system controlled electronically and hall sensor.
- Spark generator system totally electronically controlled.
- Several other exercises can be done and designed by the user.
