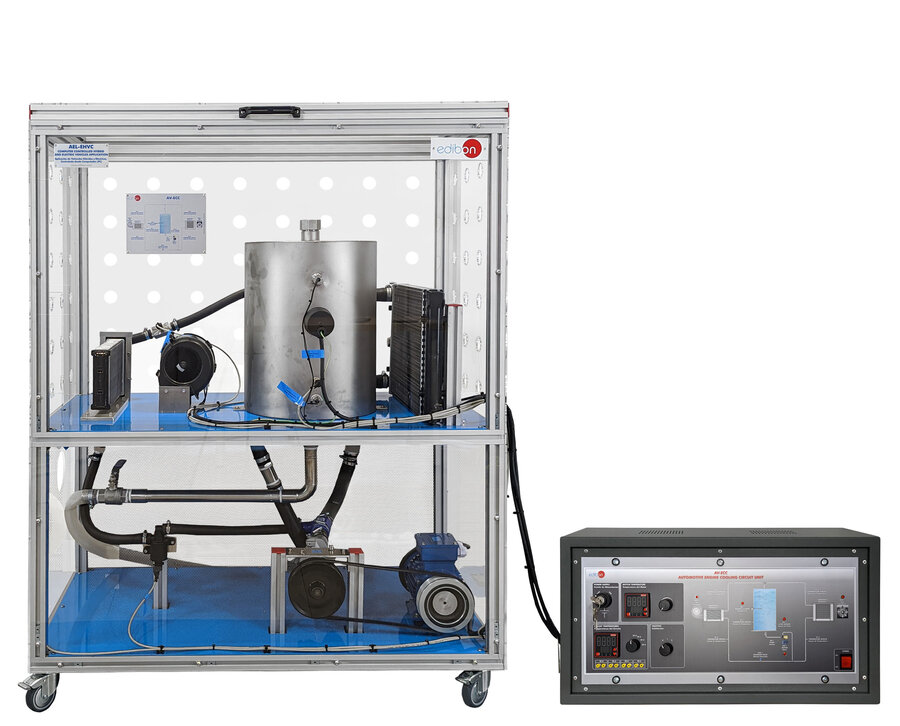

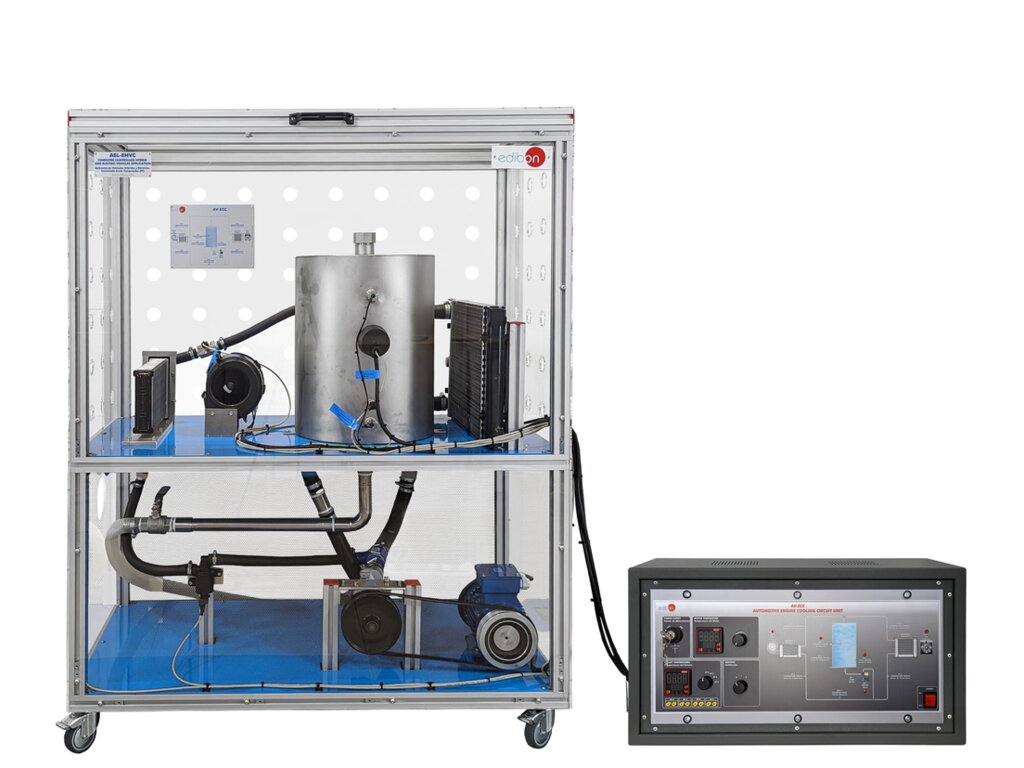

Automotive Engine Cooling Circuit Unit (AV-ECC)
PL-796313
The Automotive Engine Cooling Circuit Unit, “AV-ECC”, offers a practical introduction to the electronic systems used in modern automotive engine cooling.
The components included in the “AV-ECC” unit focus on key functions such as heat exchanger operation, coolant circuit management, temperature sensors, and the electronic control unit.
This unit comes with a variety of practical exercises designed to help students understand the operation and interaction of components within automotive engine cooling systems.
- AV-EC. Unit:
- Power supply components:
- Power supply: Operating voltage: 12 VDC.
- Car ignition switch.
- Control components:
- Electronic control unit.
- Control switch.
- Tank level switch.
- Power on indicator for the actuators.
- Temperature sensors:
- One temperature sensor in each circuit stage.
- Temperature meter for the engine and the different circuit stages.
- Coolant circuits:
- Circuit to cool the engine.
- Circuit to heat the passenger cabin.
- Actuator components:
- Simulated engine.
- Engine cooling fan.
- Passenger cabin fan.
- Engine coolant pump.
- Solenoid valve to activate the circuit to heat the passenger cabin
- Cables and Accessories, for normal operation.
- Manuals: This unit is supplied with the following manuals: Required Services, Assembly and Installation, Starting-up, Safety, Maintenance and Practices manuals.
EXERCISES AND PRACTICAL POSSIBILITIES TO BE DONE WITH THE MAIN ITEMS
- Function of the components of the main coolant circuit.
- Function of the components of the auxiliary circuit to heat the passenger cabin.
- Automatic activation of the engine cooling fan.
- Coolant temperature sensor signal from the engine.
- Several other exercises can be done and designed by the user.
