Automotive Sensors Unit (AV-S)
PL-121364

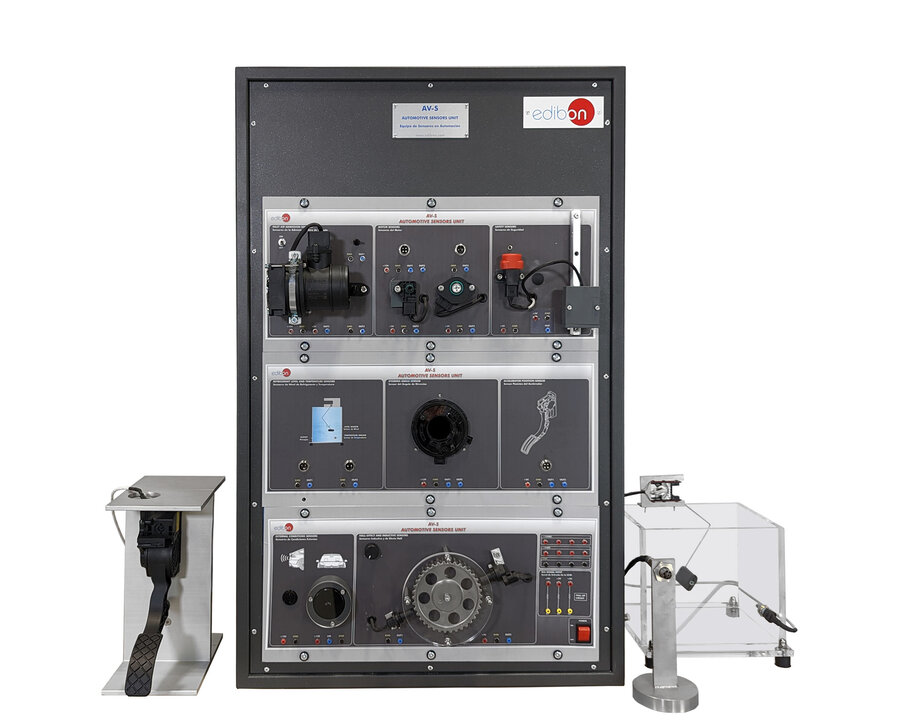

The Automotive Sensors Unit, “AV-S”, offers a practical solution to help students become familiar with sensors used in modern automotive systems.
The “AV-S” unit includes real sensors and components commonly found in today’s vehicles. It comes with a variety of practical exercises designed to teach students how automotive sensors operate in real applications.
Sensors included focus on critical engine management measurements such as mass air flow sensors, Lambda sensors, temperature sensors, oil pressure sensors, and accelerator pedal position sensors. Additionally, sensors for vehicle stability, parking assistance, lighting, and safety systems are also included.
All sensor circuits in the unit are isolated to enable independent study, with all connector points accessible through 2 mm standard lab sockets for easy testing.
The “AV-S” unit can operate independently or integrate with the Automotive Electronic Control Device Unit, “AV-ECD”, to provide real sensor data to an ECU.
Sensor communications use digital, analog, and PWM signals, along with CAN bus and LIN bus network protocols, reflecting real automotive communication standards.
- AV-ELC”. Unit:
- Power supply and signal conditioning circuits.
- Motor sensors:
- Oxygen or Lambda sensor.
- Manifold absolute pressure sensor.
- Knock sensor.
- Throttle-valve position sensor.
- Inlet air admission sensors:
- Outdoor temperature sensor.
- Inlet air temperature sensor.
- Air flow sensor.
- Safety sensors:
- Inertia switch.
- Yaw-rate and transverse acceleration sensor.
- External conditions sensors:
- Rain and light intensity sensor.
- Ultrasonic proximity sensor.
- Hall-efect and inductive sensors:
- Camshaft toothed disc:
- 12 VDC motor.
- Adjustable speed by pulse width modulation PWM.
- Inductive sensor (also called phase sensor).
- Hall effect sensor.
- Refrigerant level and temperature sensors:
- Methacrylate tank with 2.5 l capacity.
- Refrigerant level switch.
- Refrigerant temperature sensor.
- Accelerator pedal position sensor.
- Steering angle sensor.
- Cables and Accessories, for normal operation.
- Manuals: This unit is supplied with the following manuals: Required Services, Assembly and Installation, Starting-up, Safety, Maintenance and Practices manuals.
EXERCISES AND PRACTICAL POSSIBILITIES TO BE DONE WITH THE MAIN ITEMS
- Use of the crankshaft sensor to measure the phase of the crank.
- Use of the Hall effect camshaft sensor to measure the rpm of the engine.
- Accelerator pedal position sensor signal.
- Function of the refrigerant level switch.
- Manifold absolute pressure sensor signal.
- Function of the inertia switch in the safety system.
- Understanding the Lambda sensor reading.
- Calibration of an accelerator pedal position sensor signal.
- Understanding the knock sensor reading.
- Mass air flow sensor signal.
- Calibration of a throttle-valve potentiometer.
- Differences between the inlet air temperature sensor, refrigerant temperature sensor and outdoor temperature sensor.
- Function of the light intensity sensor signal.
- Understanding of the ultrasonic proximity sensor.
- Function of the transverse acceleration sensor signal in the electronic stability program, ESP.
- Understanding the steering angle sensor reading.
- Several other exercises can be done and designed by the user.
