Autonomous Mobile Robot (AMR) Training Cell (HA-AMR-106)
PL-314247
Overview

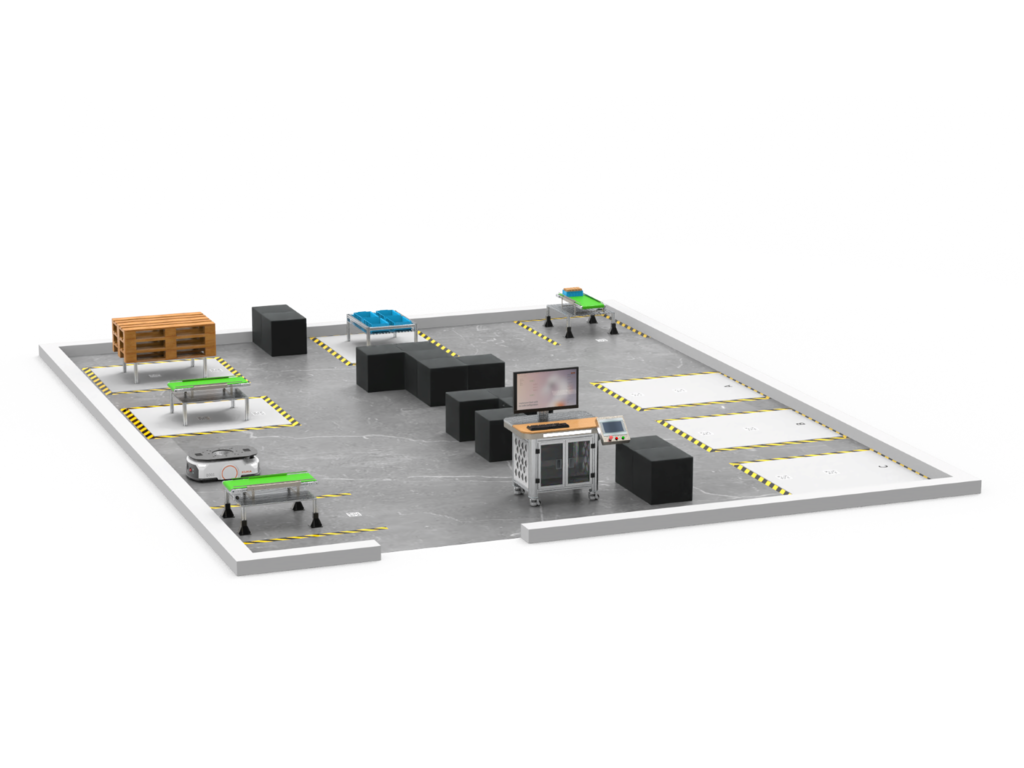

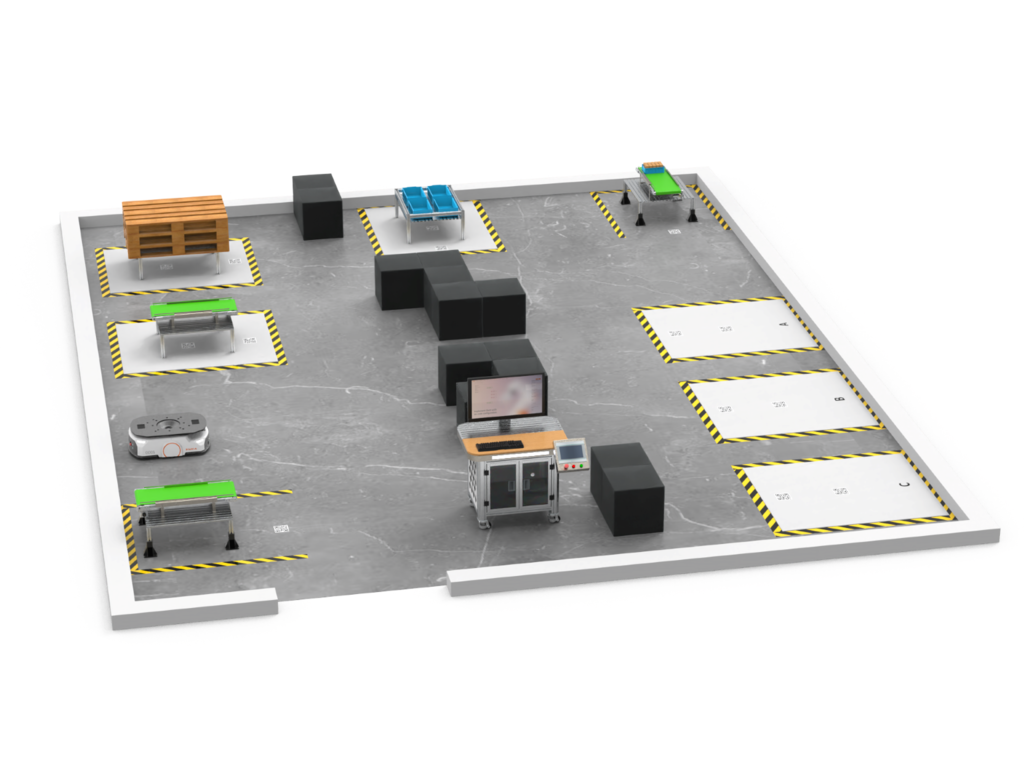

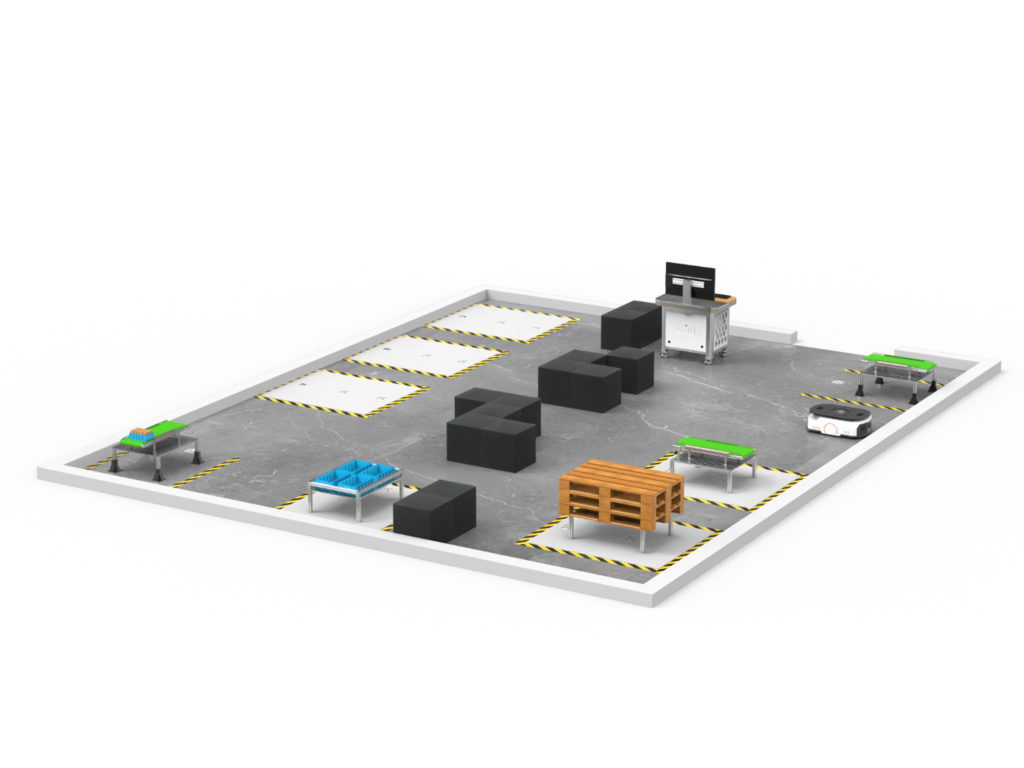

The Autonomous Mobile Robot (AMR) Training Cell by Hytech Automation is an advanced Industry 4.0 training platform designed to demonstrate intelligent intralogistics, autonomous material handling, and smart factory automation. The system replicates real-world manufacturing workflows by integrating an industrial Autonomous Mobile Robot (AMR), centralized control, PLC-HMI automation, industrial communication, and smart navigation technologies into a single modular learning platform.
Built around an industrial AMR platform such as the KUKA KMP 400i, the training cell enables learners to understand autonomous transportation, dynamic routing, fleet management, and flexible manufacturing without fixed tracks. The system combines SLAM-based navigation, QR-code positioning, obstacle detection, and intelligent path planning to demonstrate safe and efficient industrial material movement.
The training cell integrates a Central Control Unit (CCU), industrial PLC, HMI, feeder and consumer conveyors, movable conveyor modules, pallet and bin storage systems, and industrial communication protocols including PROFINET and Modbus TCP. This allows users to develop complete automation applications while gaining practical exposure to centralized supervisory control and Industry 4.0 concepts.
The modular architecture supports multiple material transfer methods including direct AMR transport, pickable conveyor modules, conveyor synchronization, and flexible production layouts. Learners gain hands-on experience in autonomous logistics, industrial networking, fleet coordination, PLC programming, HMI development, diagnostics, and real-time monitoring.
The training cell is ideally suited for engineering colleges, universities, technical institutes, vocational training centers, industrial training organizations, and research laboratories focused on robotics, industrial automation, smart manufacturing, warehouse automation, and autonomous logistics.
Key Features
- Industrial Autonomous Mobile Robot platform (KUKA KMP 400i or equivalent)
- Hybrid navigation using SLAM and QR-code positioning
- Real-time obstacle detection and collision avoidance
- Dynamic path planning and autonomous rerouting
- Central Control Unit with Fleet Management
- Industrial PLC and HMI integration
- Feeder, Consumer and Movable Conveyor modules
- Pallet and Bin storage systems
- PROFINET and Modbus TCP industrial communication
- I/O Link Master for distributed field devices
- Real-time monitoring and diagnostics
- Industry 4.0 ready architecture with smart intralogistics
- Learning Management System (LMS) for structured training
Major Learning Outcomes
- Understand Autonomous Mobile Robot architecture and operation
- Develop PLC programs for AMR coordination and material handling
- Create HMI screens for monitoring and system control
- Learn Fleet Management and Central Control concepts
- Integrate conveyors with autonomous mobile robots
- Implement SLAM-based navigation and QR positioning
- Configure industrial communication using PROFINET and Modbus TCP
- Understand I/O Link based distributed automation systems
- Develop smart intralogistics and warehouse automation applications
- Gain practical exposure to Industry 4.0 and autonomous manufacturing systems
Technical Specifications
Autonomous Mobile Robot (AMR)
- Industrial AMR platform (KUKA KMP 400i or equivalent)
- Autonomous payload transportation
- Hybrid Navigation (SLAM + QR Code Positioning)
- LiDAR and Camera-based obstacle detection
- Dynamic path planning and collision avoidance
- Autonomous charging capability
Central Control Unit (CCU)
- Industrial Fleet Management Server
- PLC-based centralized control architecture
- Industrial HMI for monitoring and diagnostics
- Task scheduling and fleet coordination
- Industrial communication using Modbus TCP / S7
PLC & HMI
- PLC: Siemens S7-1200 or Mitsubishi FX5 Series
- Industrial HMI for visualization and control
- Real-time alarms, diagnostics and monitoring
- Manual and Automatic operating modes
Material Transfer System
- Feeder Conveyor
- Consumer Conveyor
- Movable Conveyor Module (Pickable Asset Concept)
- Pallet Storage Rack
- Bin Storage Rack
Navigation & Safety
- SLAM Mapping Technology
- QR-Code Precision Positioning
- Dynamic Obstacle Detection
- Collision Avoidance
- Industrial Safety Monitoring
Industrial Communication
- PROFINET Communication
- Modbus TCP Communication
- I/O Link Master Integration
- Distributed Remote I/O Architecture
Industry 4.0 Features
- Fleet Management System
- Centralized Supervisory Control
- Real-time Monitoring & Diagnostics
- Data Logging and Analytics
- Smart Intralogistics Applications
Learning Management System (LMS)
- Step-by-step guided learning modules
- AMR operation and programming courses
- PLC, HMI and Industrial Communication training
- Industry 4.0 and Smart Factory curriculum
- Trainer assessment and certification support
