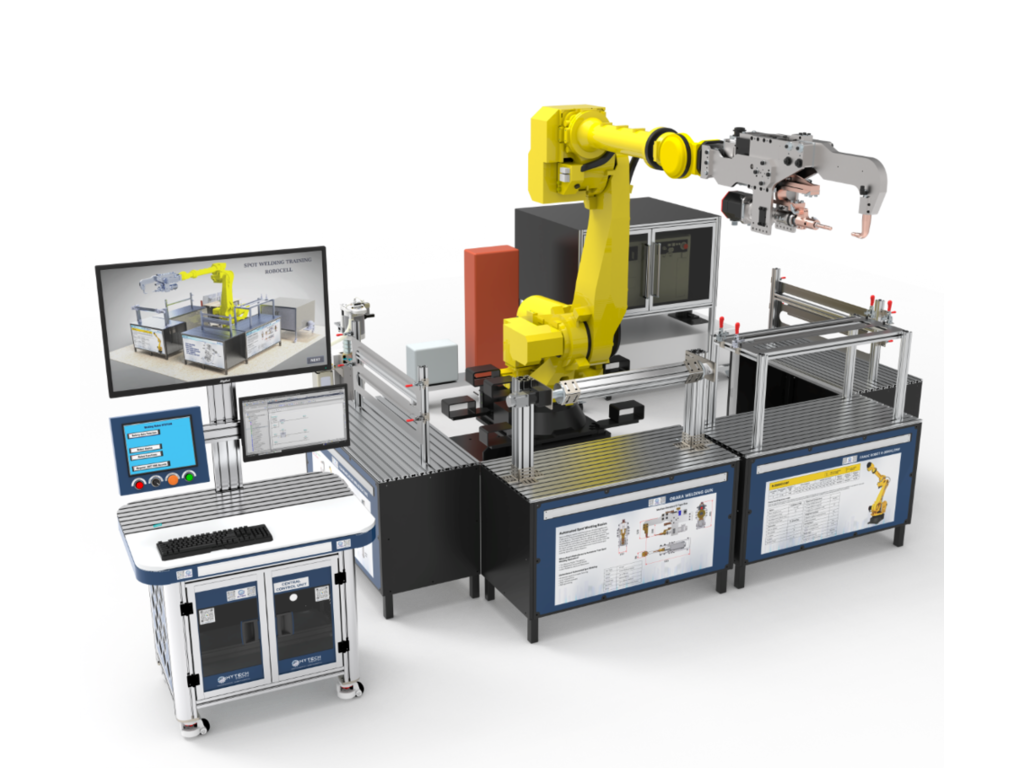

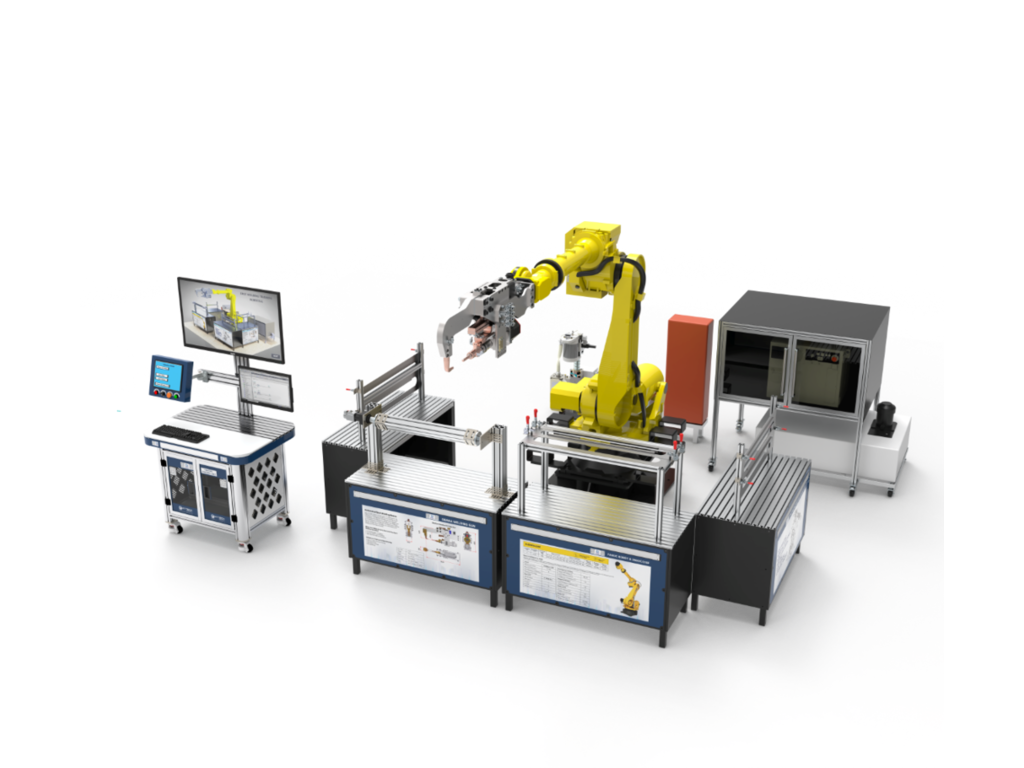

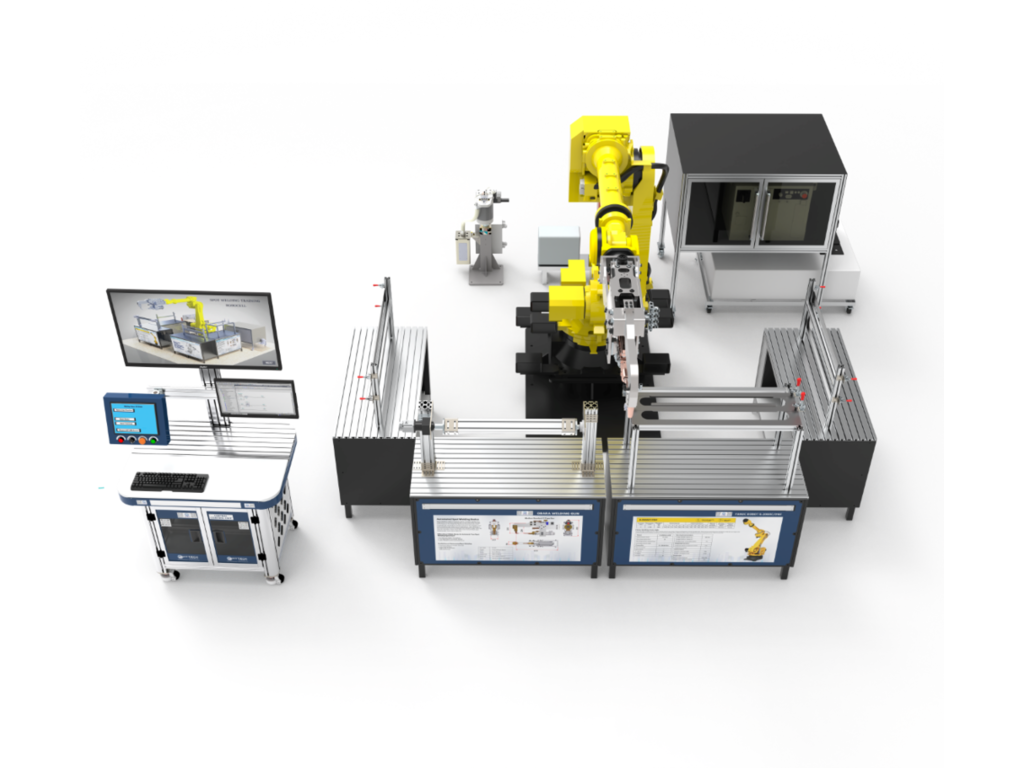

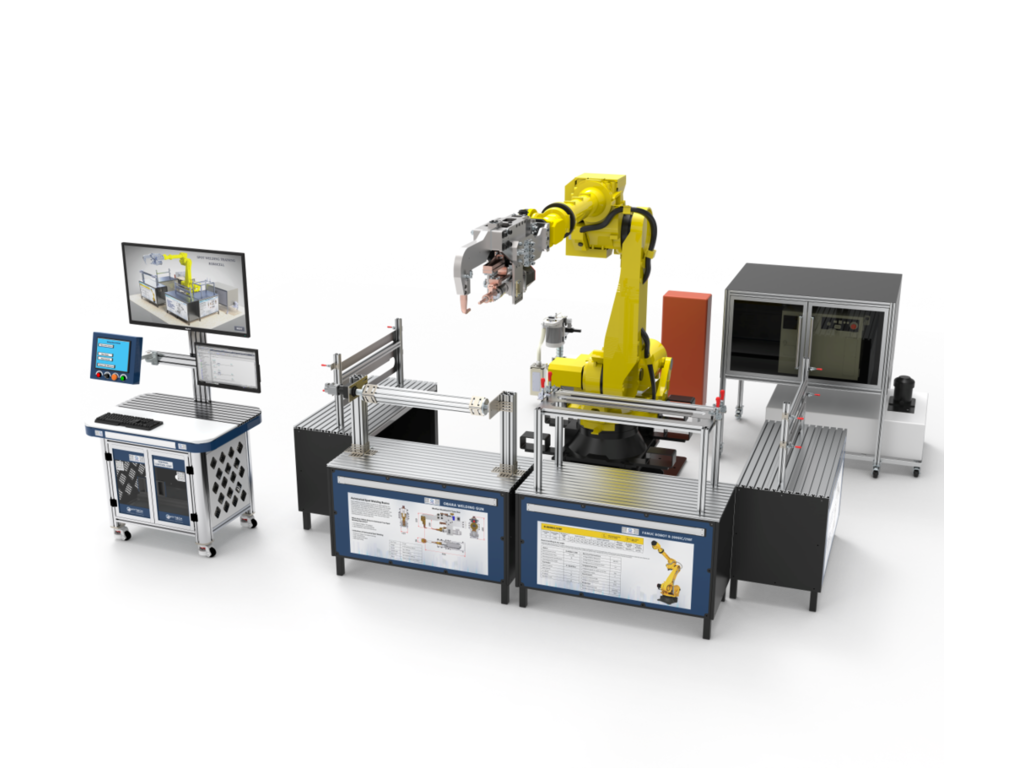

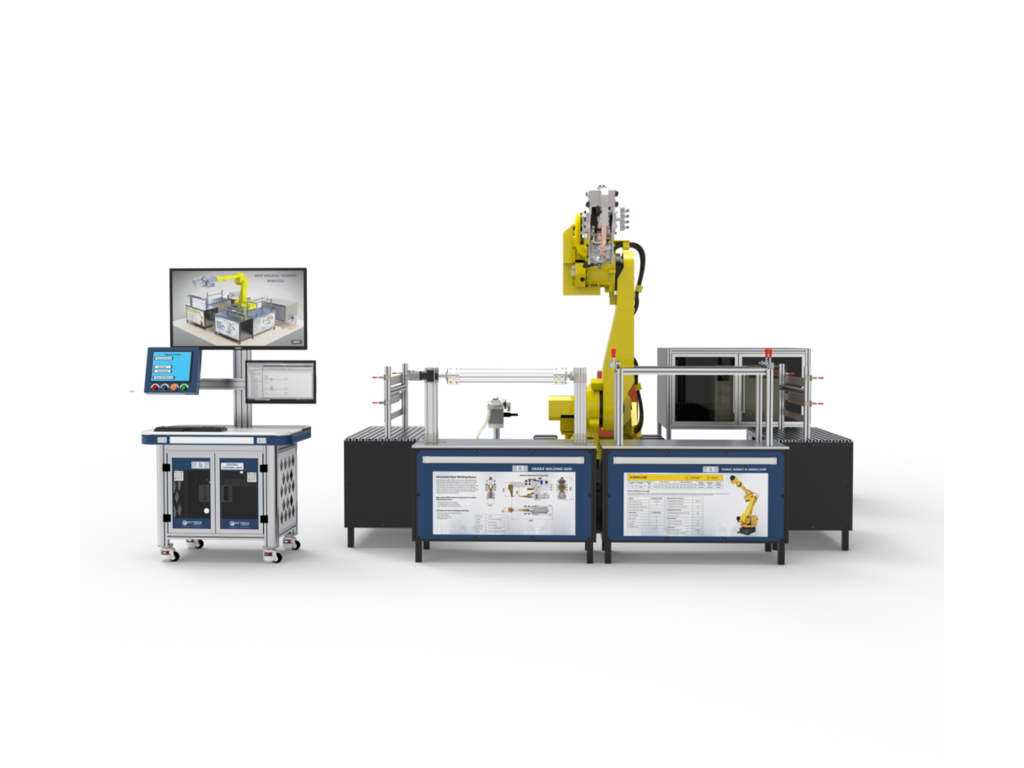

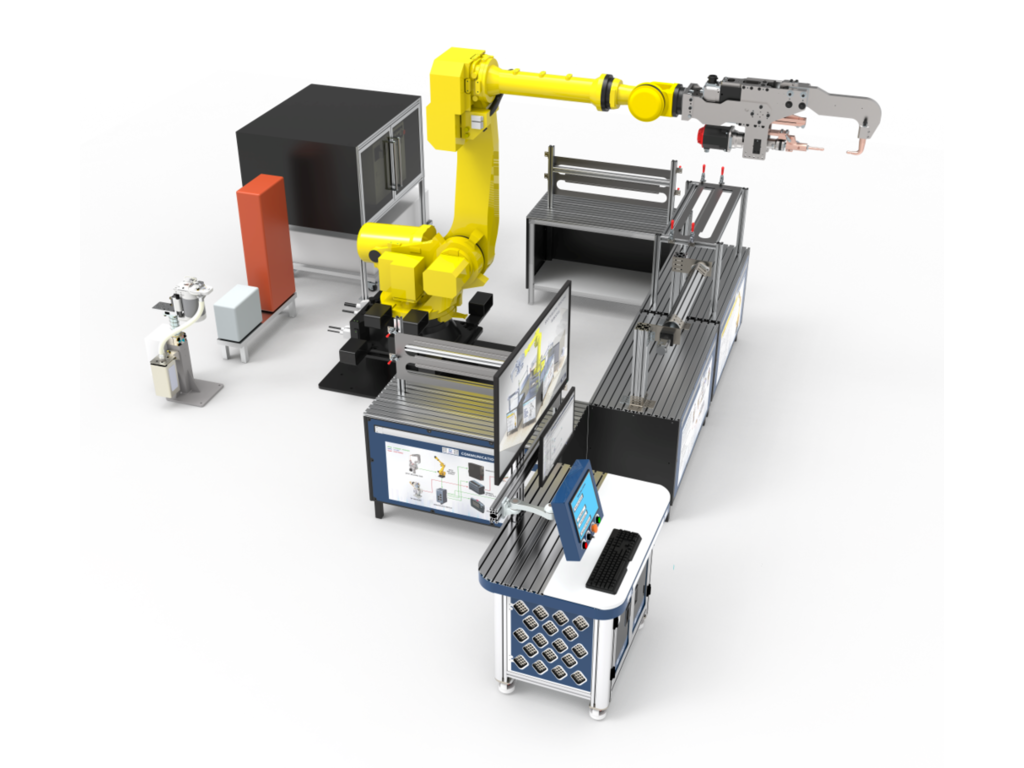

Spot Welding Robotic Training Cell (HA-RC-101)
PL-520590
Spot Welding Robot Training Cell with PLC, HMI & IIOT
The Spot Welding Robot Training Cell from Hytech Automation is an advanced industrial robotics training platform designed to provide hands-on experience in robotic spot welding, PLC-HMI integration, IIOT, Digital Twin technology, offline programming, and smart manufacturing applications.
The system replicates real industrial spot welding environments commonly used in automotive, white goods, heavy machinery, and sheet metal manufacturing industries. It enables learners to understand robotic welding operations, automation control, safety interlocks, welding quality, preventive maintenance, and Industry 4.0-based monitoring.
The training cell integrates a 6-axis industrial spot welding robot, spot welding gun, PLC, HMI, I/O-Link communication, smart light, modular welding tables, automatic tip cleaning station, water circulation system, and digital twin software into one complete industrial training setup.
The system includes four modular training tables made using industrial aluminium extrusions. These tables allow users to perform automated spot welding, horizontal welding, vertical welding, and practice-based welding applications while learning robot programming, job mounting, fixture design, and process sequencing.
Key Features & Benefits:
- 6-axis industrial spot welding robot
- Industrial MFDC spot welding gun
- PLC, HMI and IIOT integrated control system
- Digital Twin and offline programming support
- Four modular welding tables for multiple applications
- Servo-driven automated welding table
- Horizontal and vertical welding practice tables
- Automatic tip dresser for electrode maintenance
- Self-contained water circulation system
- I/O-Link master and smart light integration
- Real-time monitoring and diagnostics through HMI
- Industry 4.0-ready smart manufacturing training platform
Learning Outcomes:
- Understand industrial robotic spot welding systems
- Program and operate robotic welding cells using teach pendant and offline programming tools
- Develop PLC logic for welding sequences, safety interlocks, and automation control
- Design HMI screens for monitoring, diagnostics, and process control
- Understand I/O-Link communication and smart device integration
- Learn electrode tip cleaning, weld quality maintenance, and preventive maintenance concepts
- Work with automated, horizontal, vertical, and practice welding fixtures
- Understand Digital Twin simulation and virtual commissioning
- Gain exposure to IIOT, data logging, remote monitoring, and predictive maintenance
- Develop industry-ready skills for automotive and smart manufacturing applications
Integrated Training Applications:
- Automated Spot Welding
- Horizontal Spot Welding
- Vertical Spot Welding
- Robot Programming and Path Teaching
- PLC-HMI-Robot Integration
- Safety Interlock Programming
- Tip Cleaning and Maintenance
- Digital Twin and Offline Programming
- IIOT-Based Monitoring and Diagnostics
Ideal For:
- Robotics Training Laboratories
- Welding Automation Training Centers
- Engineering Colleges and Universities
- Vocational and Technical Training Institutes
- Automotive Manufacturing Training Labs
- Industry 4.0 Skill Development Centers
Spot Welding Robot Training Cell – Technical Specifications
Hytech Automation's Spot Welding Robot Training Cell is an Industry 4.0-ready robotic welding platform designed to provide practical training in robotic spot welding, PLC programming, HMI development, Digital Twin technology, Industrial IoT, offline programming, and automated manufacturing.
1. Training Cell Structure
- Heavy-duty aluminium extrusion framework
- Industrial modular workstation design
- Transparent safety enclosure with interlocked access doors
- Robot pedestal with integrated mounting arrangement
- Industrial electrical control panel
- Lockable castor wheels with anti-vibration mounts
2. Industrial Spot Welding Robot
- 6-Axis Industrial Spot Welding Robot
- Minimum Reach: 1400 mm
- Minimum Payload: 12 kg
- Industrial Teach Pendant
- Industrial MFDC Spot Welding Gun
- Robot Controller with Offline Programming Support
3. Central Control Unit
- PLC: Siemens S7-1200 / Mitsubishi FX5
- HMI: Siemens MTP700 / Mitsubishi GT Series
- Industrial Ethernet Communication
- I/O-Link Master
- Smart Tower Light
- Cycle Start, Reset and Emergency Stop Push Buttons
- Industrial Electrical Control Panel
4. Modular Welding Training Tables
- Table 1 – Automated Servo Indexing Spot Welding Station
- Table 2 – Horizontal Spot Welding Practice Station
- Table 3 – Vertical Spot Welding Practice Station
- Table 4 – General Spot Welding Practice Table
- Industrial Fixture Mounting Arrangement
- Quick Change Workpiece Fixtures
5. Welding Equipment
- Industrial MFDC Spot Welding Controller
- Spot Welding Transformer
- Spot Welding Gun
- Automatic Electrode Tip Dresser
- Electrode Maintenance System
- Industrial Welding Accessories
6. Cooling & Utility System
- Closed Loop Water Circulation System
- Industrial Cooling Unit
- Water Flow Monitoring
- Cooling Pump Assembly
- Industrial Utility Connections
7. Digital Twin & Offline Programming
- Complete Cell available in STP Format
- Siemens Tecnomatix Integration
- Visual Components Integration
- Offline Robot Programming
- Digital Twin Simulation
- Virtual Commissioning
8. Industrial IoT & Industry 4.0
- Optional Siemens Industrial Edge
- Industrial Ethernet Connectivity
- Real-Time Production Monitoring
- Machine Diagnostics
- Production Data Logging
- Remote Monitoring Support
9. Computer System
- Industrial Workstation or High-Performance Laptop
- Preconfigured Programming Software
- Wireless Keyboard and Mouse
- LED Monitor / TV for Digital Twin Visualization
10. Learning Management System (LMS)
- Structured Robotic Welding Curriculum
- Trainer & Student Learning Modules
- Experiment Manuals
- Assessment & Certification Support
- Industry-Oriented Training Content
Applications
- Robotic Spot Welding Training
- Industrial Robotics Laboratories
- Automotive Manufacturing Training
- PLC-HMI Integration
- Industry 4.0 & Digital Manufacturing
- Engineering Colleges & Universities
- Vocational and Technical Training Centers
