Computer Integrated Manufacturing (CIM) System with AMR & 7-Axis Robot (HA-CIM-108)
PL-618763
The Computer Integrated Manufacturing (CIM) System with AMR & 7-Axis Robot from Hytech Automation is a next-generation Industry 4.0 smart manufacturing platform designed to provide hands-on training in industrial automation, robotics, CNC machining, digital manufacturing, and intelligent production systems.
The system integrates CNC Turning, CNC Milling, Automated Storage & Retrieval System (ASRS), Vision Inspection, Automated Assembly, Laser Engraving, Autonomous Mobile Robot (AMR), Collaborative Robot (Cobot), Industrial Robot with 7th-axis gantry, PLC, HMI, SCADA, MES, Industrial Networking, and Digital Twin technologies into one fully connected manufacturing environment.

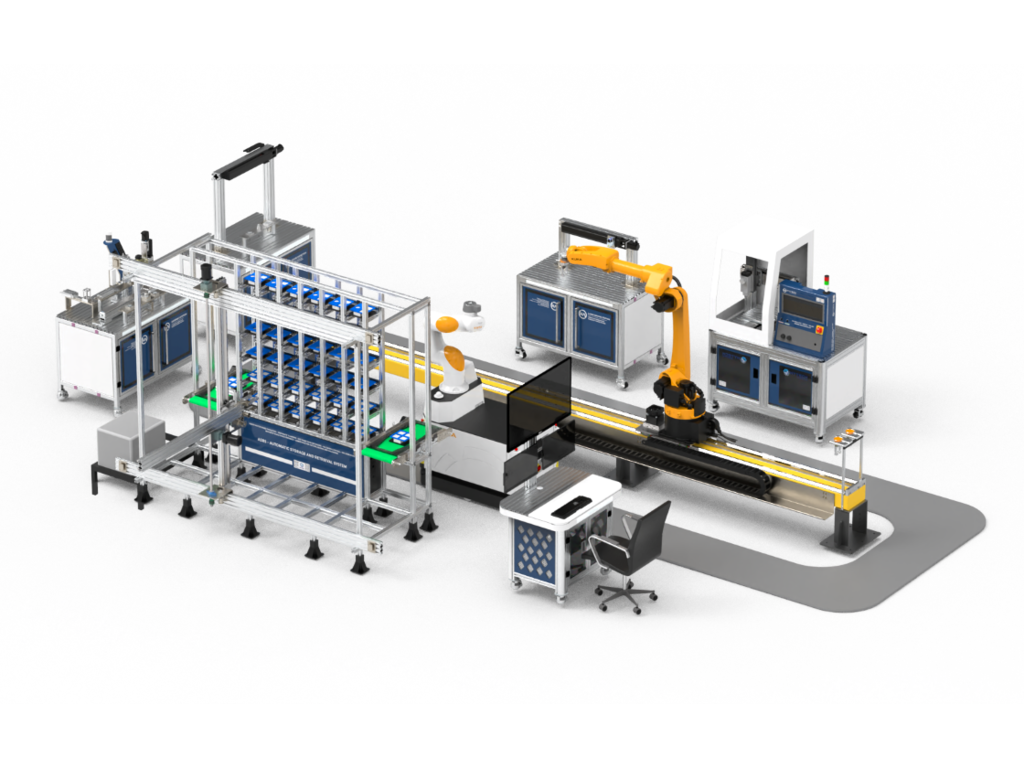

A high-performance 7-Axis Industrial Robot mounted on a 4-meter gantry automatically performs machine tending, material handling, loading, unloading, and inter-station transfer across the complete manufacturing line. The integrated Autonomous Mobile Robot (AMR) with collaborative robot demonstrates flexible intralogistics, autonomous transportation, and collaborative manufacturing operations commonly used in modern smart factories.
The Automated Storage & Retrieval System (ASRS) manages intelligent storage and retrieval of workpieces, while dedicated Assembly, Vision Inspection, and Laser Engraving stations enable learners to understand complete production workflows including inspection, machining, quality control, traceability, and automated assembly.
Each manufacturing station operates independently for focused training or as part of a fully integrated Computer Integrated Manufacturing workflow coordinated through the Central Control Unit (CCU). The system supports industrial communication using OPC UA and Profinet while integrating PLC, HMI, SCADA, MES, and Digital Twin software for real-time production monitoring, virtual commissioning, and manufacturing optimization.
Compatible with Siemens Mechatronics Concept Designer (MCD), Siemens Tecnomatix, Siemens Opcenter, and Dassault DELMIA Apriso, the platform enables virtual commissioning, robot simulation, production planning, and digital manufacturing validation before physical implementation.
Key Features
- Complete Computer Integrated Manufacturing (CIM) training platform
- CNC Milling Machine with Siemens 828D controller
- CNC Turning Machine integration
- 7-Axis Industrial Robot with 4-meter Gantry
- Automatic Schunk Robot Tool Changer
- Autonomous Mobile Robot (AMR) with Collaborative Robot
- Automated Storage & Retrieval System (ASRS)
- Vision Inspection Station with Cognex Vision System
- Automated Assembly Station
- Laser Engraving Station
- Central Control Unit with PLC, HMI, SCADA and MES
- Digital Twin and Virtual Commissioning
- OPC UA and Profinet Industrial Communication
- Industry 4.0 and IIoT Integration
Major Learning Outcomes
- Understand complete Computer Integrated Manufacturing architecture
- Program PLC, HMI, SCADA and MES applications
- Configure industrial robots, cobots and AMRs
- Develop machine tending and robotic material handling applications
- Implement automated storage and retrieval systems
- Integrate CNC machines with robotic automation
- Perform vision inspection and quality control
- Configure OPC UA and Profinet industrial communication
- Develop Digital Twin and Virtual Commissioning workflows
- Gain practical Industry 4.0 manufacturing experience
Product Technical Specifications
- Complete Computer Integrated Manufacturing (CIM) Smart Factory Training System
- CNC Milling Machine with Siemens 828D Controller
- CNC Turning Machine Integration
- Automated Storage & Retrieval System (ASRS)
- Automated Assembly Station
- Vision Inspection Station with Cognex Smart Vision System
- Laser Engraving Station with Multi-Axis Servo Motion
- 7-Axis Industrial Robot with 4-meter Gantry Axis
- Industrial Robot: KUKA / FANUC (Minimum Reach: 1600 mm, Payload: 7 kg)
- Automatic Schunk Robot Tool Changer with Multiple End Effectors
- Autonomous Mobile Robot (AMR) – KUKA KMR iisy Platform
- AMR Payload: Approximately 400 kg
- Collaborative Robot mounted on AMR (Minimum Reach: 500 mm, Payload: 5 kg)
- Allen Bradley ControlLogix 5580 / Siemens S7-1500 Central PLC
- Allen Bradley CompactLogix 5380 / Siemens S7-1200 Station Controllers
- Allen Bradley PanelView Plus 7 / Siemens Unified HMI
- FactoryTalk View SE / Siemens WinCC SCADA
- MES Platform: Siemens Opcenter or Dassault DELMIA Apriso
- Digital Twin: Siemens Mechatronics Concept Designer (MCD)
- Robot Simulation using Siemens Tecnomatix
- Industrial Communication: OPC UA & Profinet
- RFID Product Traceability
- Servo Motion Control System
- Industrial Safety Curtains and Safety Interlocks
- Industrial PC (Intel i7, 32 GB RAM)
- Supports Virtual Commissioning
- Supports IIoT Connectivity
- Supports Standalone and Fully Integrated Manufacturing Operation
