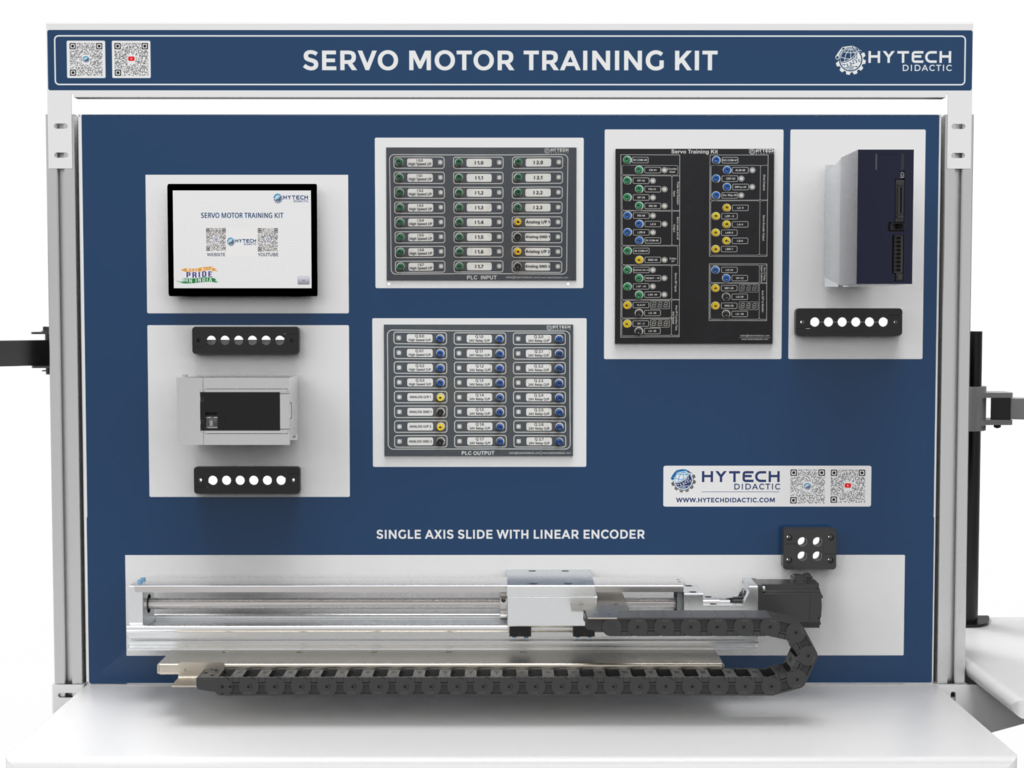

Servo Motor Training Kit (HA-SM-102)
PL-653178
Overview
The Servo Motor Training Kit is an advanced industrial motion control training platform designed to provide hands-on experience in servo technology, PLC-based motion control, HMI visualization, and Industry 4.0 automation. Built using industrial-grade components, the system enables learners to understand real-world servo applications through practical experimentation with position, speed, and torque control.
The training kit combines an AC servo motor, precision ball screw linear motion system, PLC, HMI, servo drive, and industrial I/O interfaces into a compact workstation. Learners gain practical knowledge of closed-loop motion control, encoder feedback, pulse and direction control, motion programming, and servo parameter configuration used in modern manufacturing industries.
The system supports both Siemens and Mitsubishi automation platforms and integrates seamlessly with PLC, HMI, SCADA, and IIoT technologies. Through Digital Connectivity using Industrial Edge, learners can monitor machine data, visualize process performance, and explore predictive maintenance concepts aligned with Industry 4.0.
Key Features
- Industrial AC Servo Motor with precision ball screw mechanism
- Linear motion system with encoder-based closed-loop feedback
- PLC-based motion control using Siemens or Mitsubishi platform
- Industrial HMI for monitoring, parameter setting, and diagnostics
- Servo Drive with position, speed, and torque control modes
- Patch-cord based PCB I/O interface for safe industrial wiring practice
- Industrial Edge enabled IIoT connectivity
- Real-time monitoring through PLC, HMI and SCADA integration
- Integrated safety diagnostics and overload protection
- Comprehensive Learning Management System (LMS) with guided training modules
Applications
- Industrial Motion Control Training
- Servo Drive Programming
- PLC Motion Applications
- Positioning & Speed Control
- Machine Automation
- Industrial IIoT & Smart Manufacturing
- Industrial Robotics
- Packaging & Conveyor Automation
Technical Specifications
Mechanical System
- Industrial Aluminium & Mild Steel Workstation
- Precision Ball Screw Linear Motion System
- Linear Slide with Minimum 250 mm Stroke
- Encoder Based Closed Loop Motion Control
- Castor Wheels with Brakes and Anti-Vibration Supports
Servo System
- Industrial AC Servo Motor
- Industrial Servo Drive
- Position, Speed & Torque Control
- High Accuracy Encoder Feedback
PLC & HMI
- Siemens S7-1200 or Mitsubishi FX5 PLC
- Industrial Touchscreen HMI (7" or above)
- PLC Motion Control Software (Perpetual License)
- PLC-HMI Integration for Motion Applications
Electrical System
- 24 VDC SMPS
- MCBs and Protection Devices
- Modular Control Panel
- Industrial PCB I/O Interface Modules
- Banana Socket Patch Cord Connections
Communication & IIoT
- PROFINET / Ethernet Communication
- Industrial Edge IIoT Connectivity
- SCADA Integration
- Dashboard & Real-Time Data Monitoring
Safety Features
- Emergency Stop
- Overload Protection
- Low Voltage Protection
- Grounding & Safety Diagnostics
Accessories
- Experiment Manual
- User Documentation
- Patch Cords & Wiring Accessories
- Learning Management System (LMS)
