VFD & Plotter Training Kit (HA-VP-103)
PL-194575
Overview

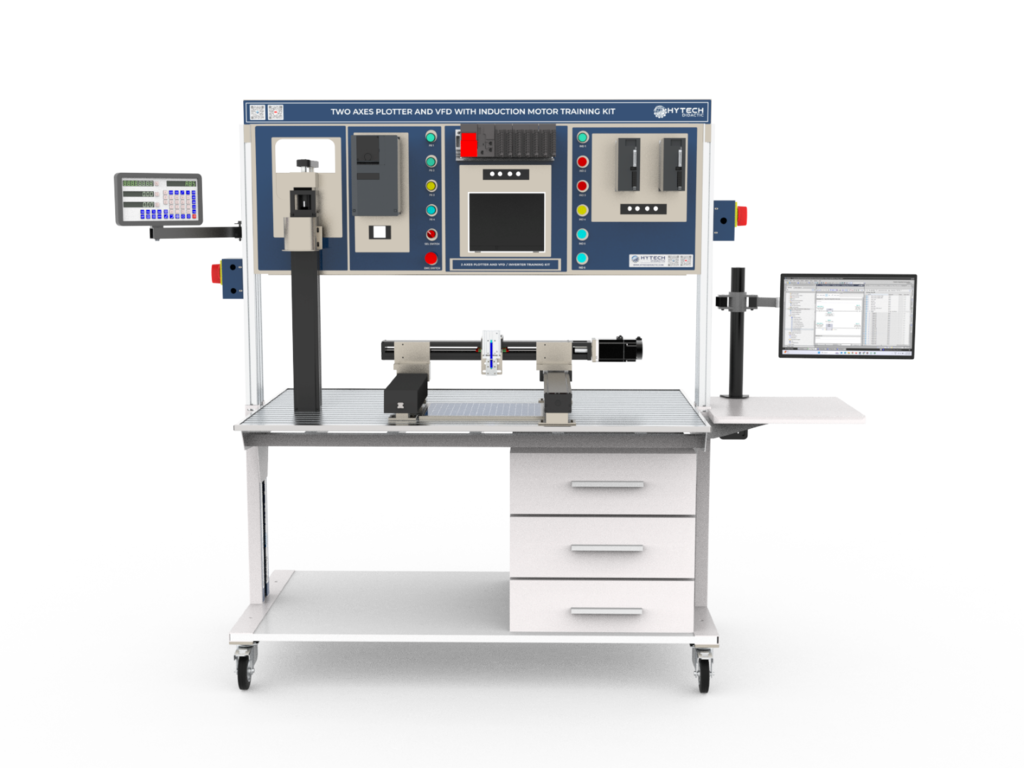

The VFD & Two Axes Plotter Training Kit from Hytech Automation is an advanced industrial motion control training platform designed to provide practical hands-on experience in PLC, HMI, AC Servo Motor, Variable Frequency Drive (VFD), and industrial automation technologies. The system combines a precision two-axis plotting mechanism with VFD-controlled induction motor applications, enabling learners to understand real-world motion control and industrial machine automation.
The training platform integrates industrial PLC, HMI, servo drives, VFD, pneumatic actuation, digital readout (DRO), Industrial Edge IIoT, and precision linear motion systems to demonstrate coordinated motion, interpolated positioning, motor speed control, and industrial process monitoring.
The precision X-Y plotter uses AC servo motors with encoder feedback for accurate positioning, while the pneumatically actuated Z-axis enables automated drawing operations. A separate VFD module provides hands-on training in induction motor speed control, acceleration, deceleration, and parameter configuration using PLC and HMI.
Key Features
- Industrial Two-Axes X-Y Plotter with precision linear guides
- Industrial AC Servo Motor based motion control
- Variable Frequency Drive (VFD) for induction motor applications
- Industrial PLC and HMI integration
- Pneumatically actuated Z-axis drawing mechanism
- Digital Readout (DRO) for position feedback
- Industrial Edge IIoT connectivity
- Real-time monitoring using PLC, HMI and Industrial Dashboard
- Weight loading arrangement for VFD performance analysis
- Industrial safety switches and protection devices
- Learning Management System (LMS) with guided training modules
Applications
- Servo Motion Control Training
- PLC & HMI Programming
- Variable Frequency Drive Applications
- Industrial Motion Automation
- Machine Position Control
- Industry 4.0 & IIoT Applications
- Industrial Mechatronics Training
Technical Specifications
Mechanical Structure
- Industrial aluminium extrusion workstation
- Overall Dimensions: 1730 × 1596 × 717 mm
- Precision X-Y linear guide mechanism
- Pneumatic Z-axis drawing mechanism
- Lockable castor wheels for mobility
Two Axes Plotter
- Dual AC Servo Motor driven X-Y axes
- High precision encoder feedback
- Interpolated linear and curved motion
- Industrial Digital Readout (DRO)
- PLC coordinated motion control
Variable Frequency Drive System
- Mitsubishi FR-D700 Variable Frequency Drive
- 3-Phase Induction Motor
- PLC controlled speed regulation
- Acceleration and deceleration control
- Forward/Reverse operation through HMI
PLC & HMI
- Mitsubishi MELSEC iQ-R PLC
- Mitsubishi GOT GS2110 HMI
- GX Works3 Programming Software
- GT Designer3 HMI Software
Industrial Communication
- CC-Link IE / SSCNET III/H Communication
- Industrial Ethernet
- Industrial Edge IIoT Integration
Electrical System
- Main Power ON/OFF Module
- VFD Power Control Module
- Push Buttons & Selector Switches
- Operation Indication Module
- Emergency Stop Circuit
Accessories
- Learning Management System (LMS)
- Training Manuals
- Experiment Documentation
- Industrial Workstation with 21" Monitor
