Phoenix Plasma
CNC

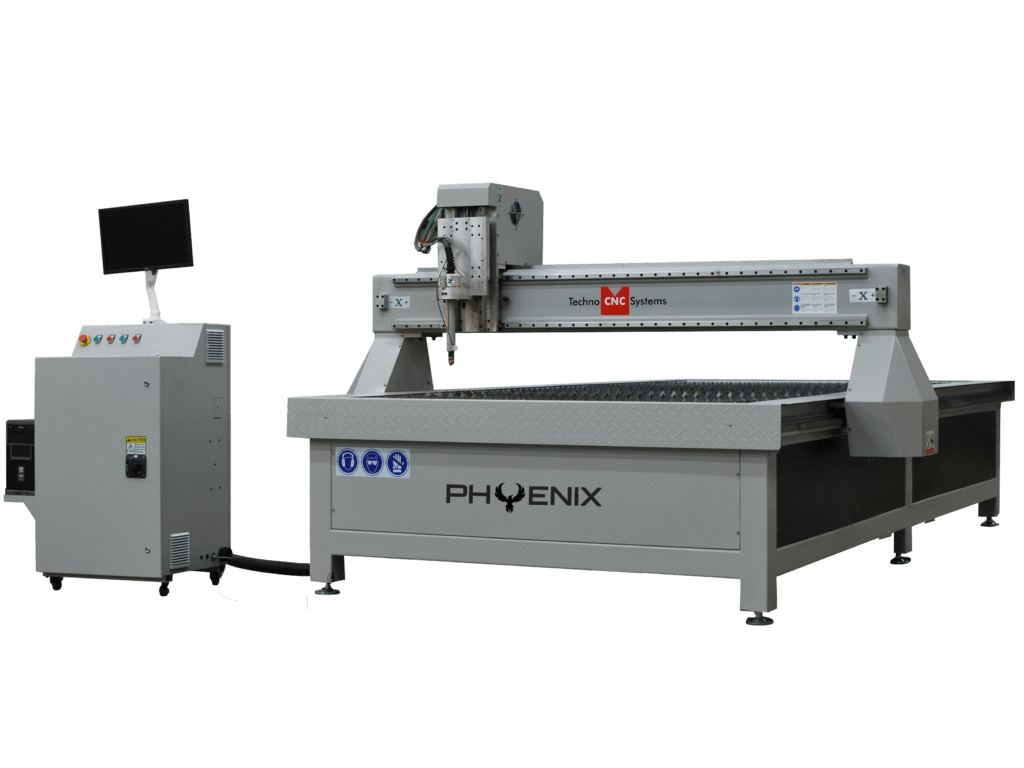

The Phoenix series CNC Plasma machine is all steel constructed, providing a rigid foundation to support heavy plate loads and delivering ultra-smooth plasma cutting results. The Phoenix Series CNC Plasma can be equipped with a variety of plasma torch power supplies, each one capable of cutting different material thicknesses. The gantry height is 7-1/2", which provides maximum flexibility to cut sheet goods and larger or taller welded assemblies, if desired.

The Phoenix Plasma provides the user a choice between a water table or down draft smoke evacuation. The machine includes stainless steel water trays that can be removed if the user chooses downdraft smoke evacuation. The machine drive motors are powerful NEMA 34 sized high speed stepper motors, directly coupled to a precision gearbox assembly and helical pinion for a direct drive advantage.

This provides optimum power, speed, and accuracy when cutting thin sheet metal or thicker plate stock. The plasma torch is cradled in an electronic, automatic, torch breakaway module, using a real time CNC torch height control system.

The Phoenix Plasma has a PC based industrial controller with a Windows 10 operating system and uses an Ethernet connection for high-speed communication and uninterrupted processing. The system interface is easy to learn, easy to use, and makes the machine operation simple for instructors and students. No other machine on the market includes all of these features and capabilities.



STEEL SLATS

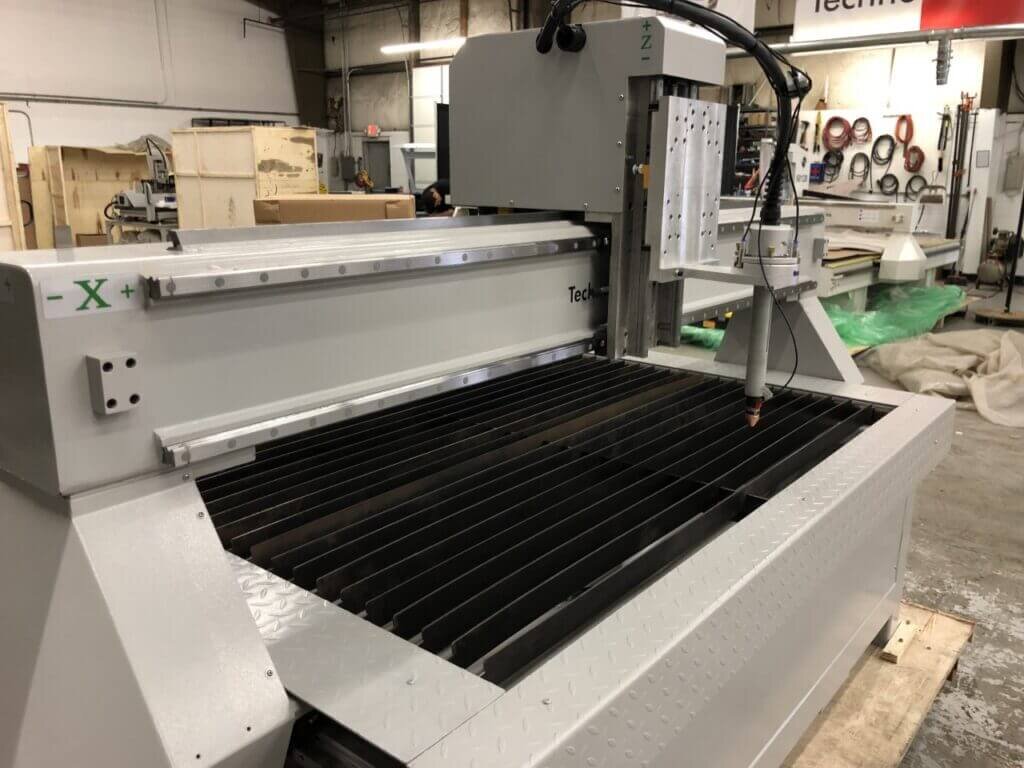

Techno’s steel slats provide the best part cut quality reducing slat slag or weld to part that can effect contact edge finish.

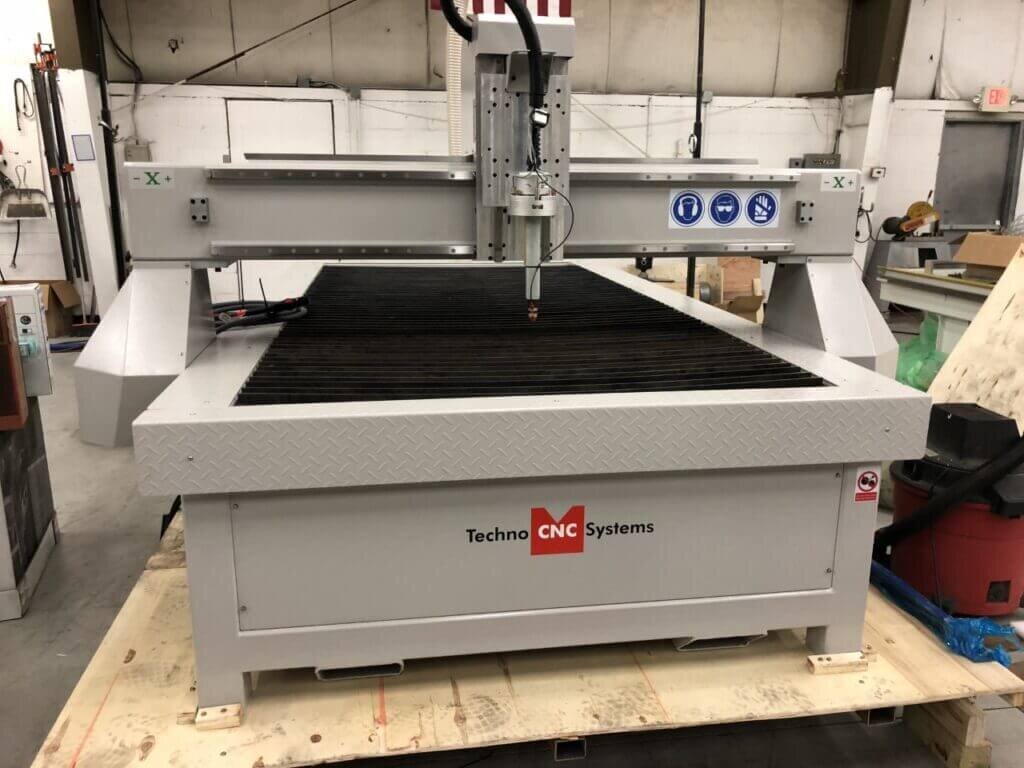

GANTRY

The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.



DOWN DRAFT EXHAUST SYSTEM

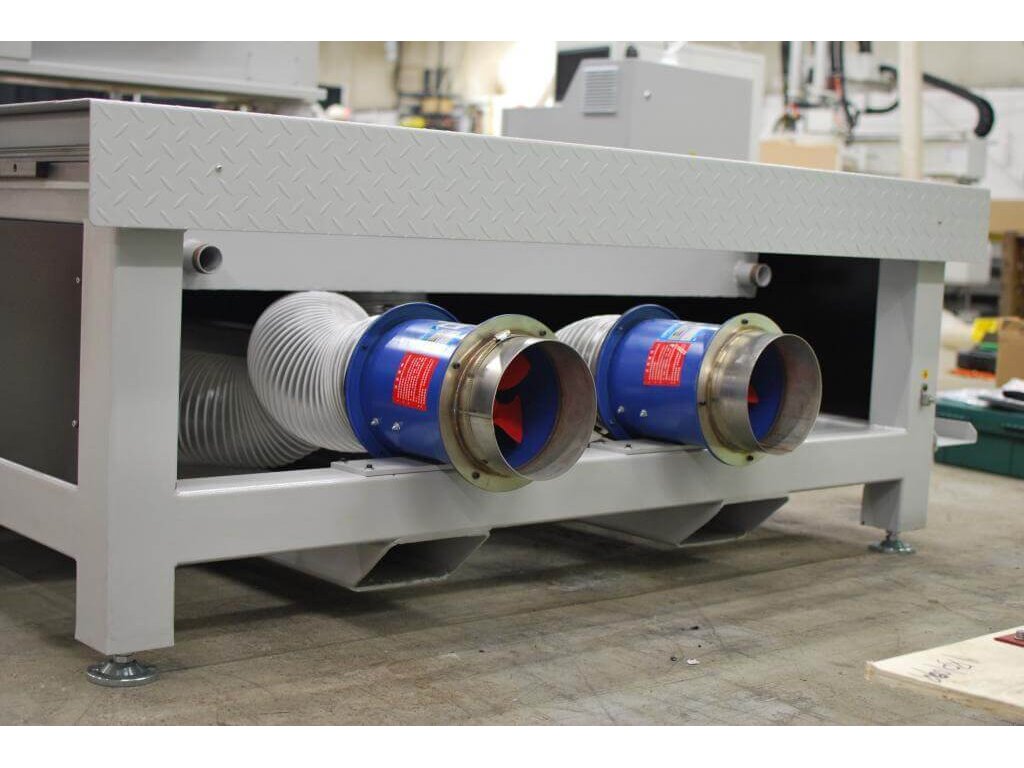

Techno provide dual fans for downdraft downdraft table. Each fan draws 250 CFM which assure a power smoke evacuation.



WATER TABLE TRAY

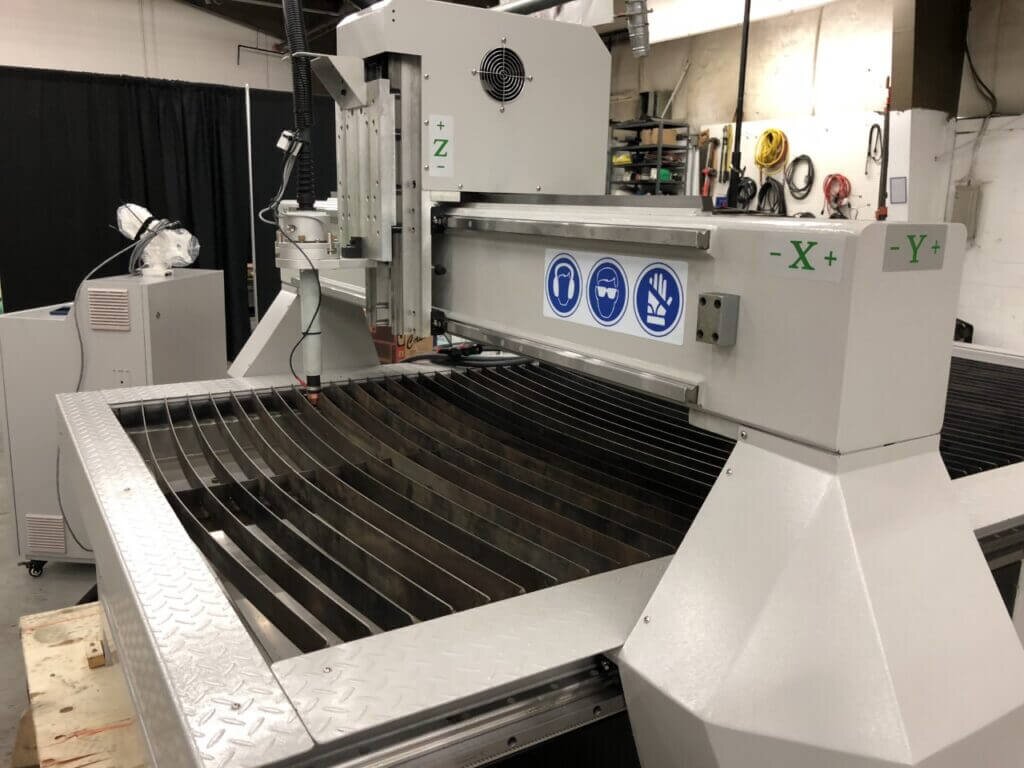

Techno provides the best of both worlds, giving the user the choice to use downdraft smoke evacuation or water table. Techno provides stainless steel trays, when filled with water will absorb about 90% of the smoke generated from the cutting.



ELECTRONIC TORCH BREAKAWAY

The Phoenix plasma torch is cradled in an electronic, automatic, torch breakaway module, using a real time CNC torch height control system.



CONTROLLER

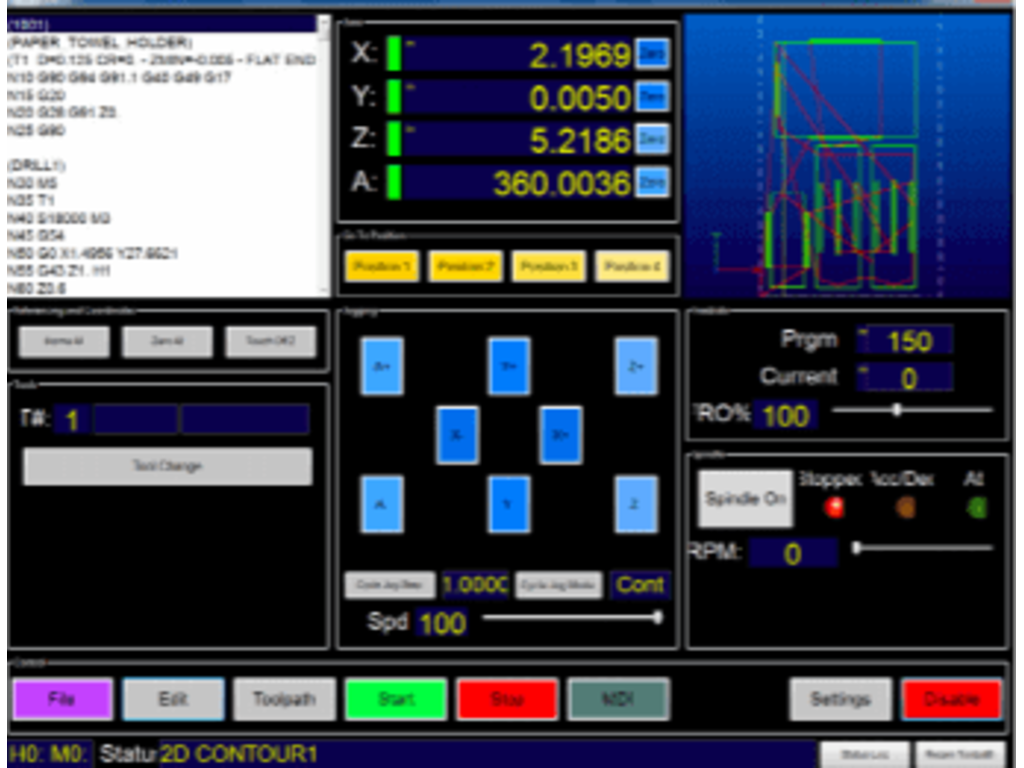

Our New Techno PC based industrial SSA 5000 controller is a  Windows 10 based operating system. System connection is Ethernet for high speed communication resulting in high speed uninterrupted processing.



GANTRY UPRIGHTS

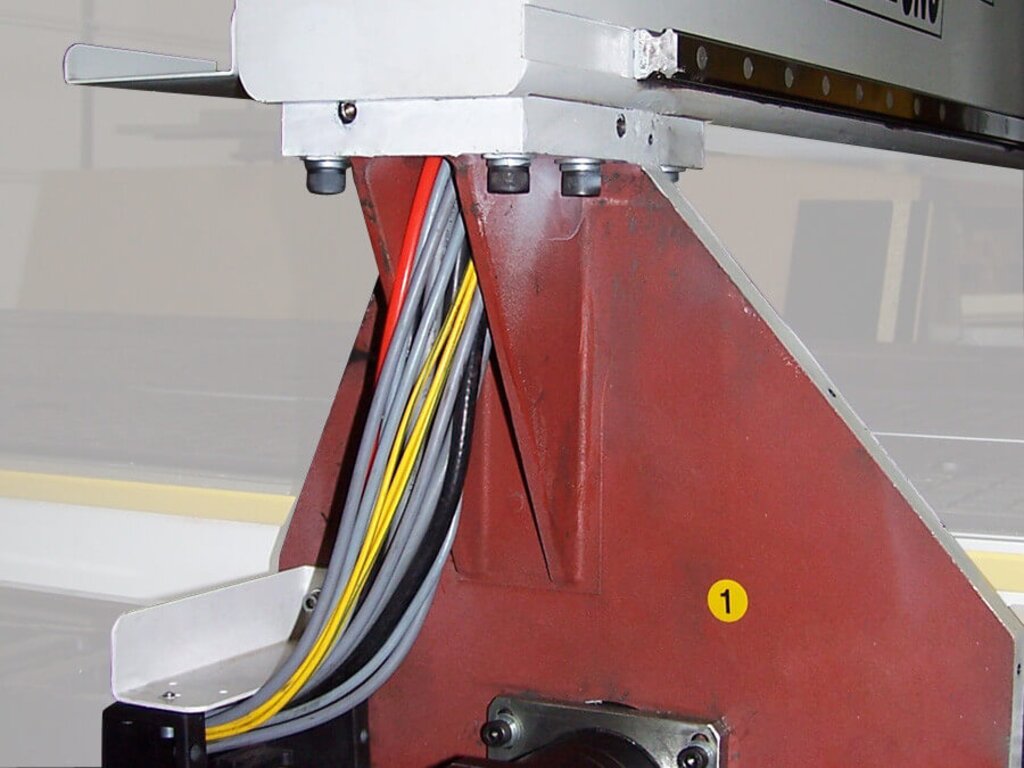

The gantry uprights are cast iron with heavy duty gussets formed into the casting. Each support is machined for housing the various drive assemblies including motors, bearings, belts, and wiring harnesses.



MOTORS

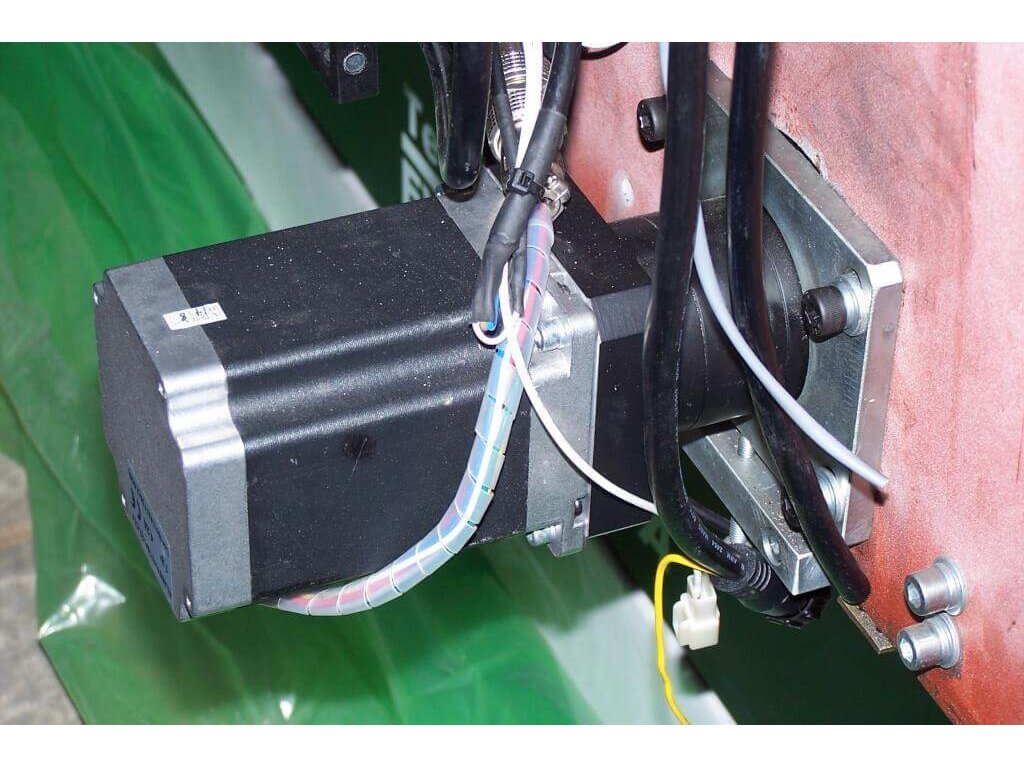

The Phoenix Plasma Cutter utilizes brushless micro-stepper motors. These motors require no regular maintenance, therefore reducing any maintenance downtime.



ELECTRONICS

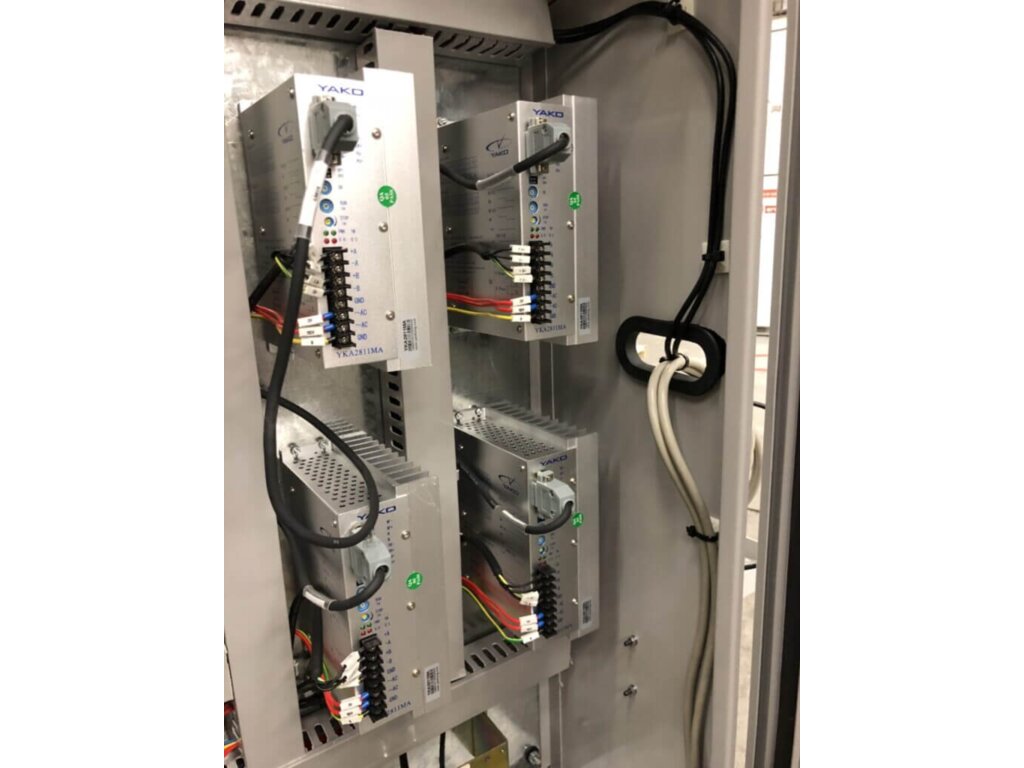

All the electrical components are housed and wired in a doubled-doored Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required the program.



TECHNICAL SUPPORT

Technical support, application engineering assistance, and remote diagnostics is FREE for the life of the machine via telephone, email, and remote logins





FEATURES:

  • Available in 4′ x 4′, 4′ x 8′ and 5′ x 10′ stock sizes
  • PC based WinCNC Controller
  • Brushless drive motors
  • Precision Helical Rack-n-Pinion on X and Y axes with ballscrew on the Z axes
  • Unique design, easy to learn and operate
  • Water table / Steel slats / Down drafts
  • All steel construction for rigid platform
  • Cuts up to 1.5” thick steel capacity
  • High-speed cutting up to 800 IPM
  • Magnetic Torch Break away
  • Multiple torch options available
