PL-104750
Reviews
Not reviewed yet
Producer
Content languages
English
Certification labels
CE
Warranty
12
Producer product code
Venus Plasma
CNC

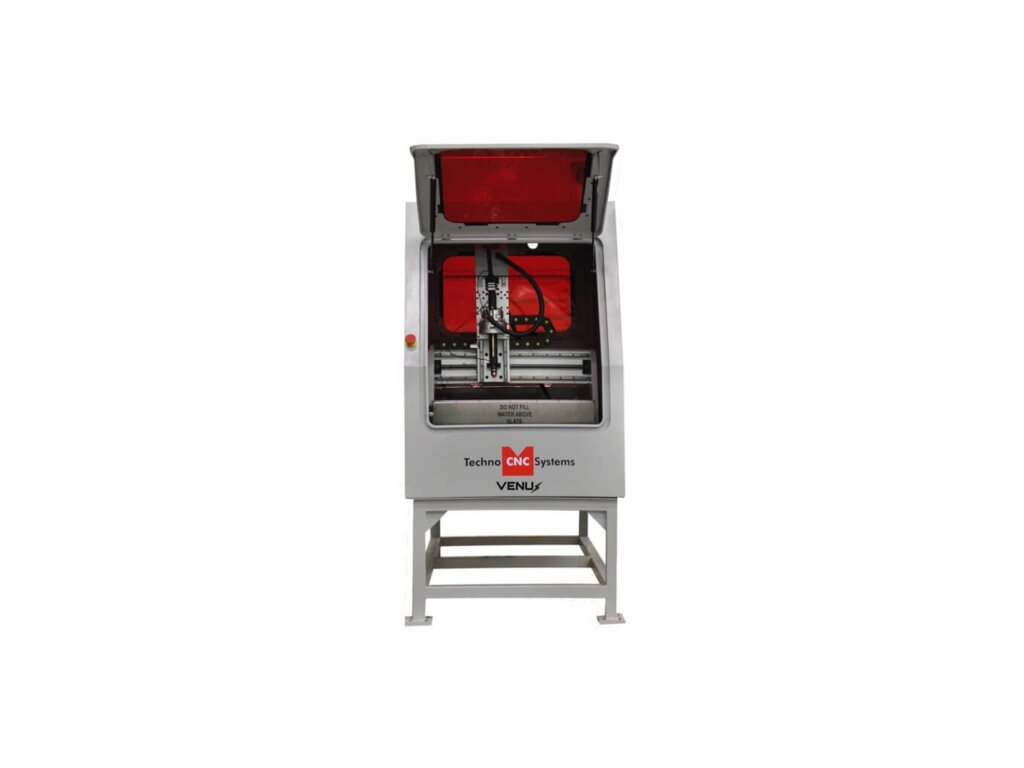

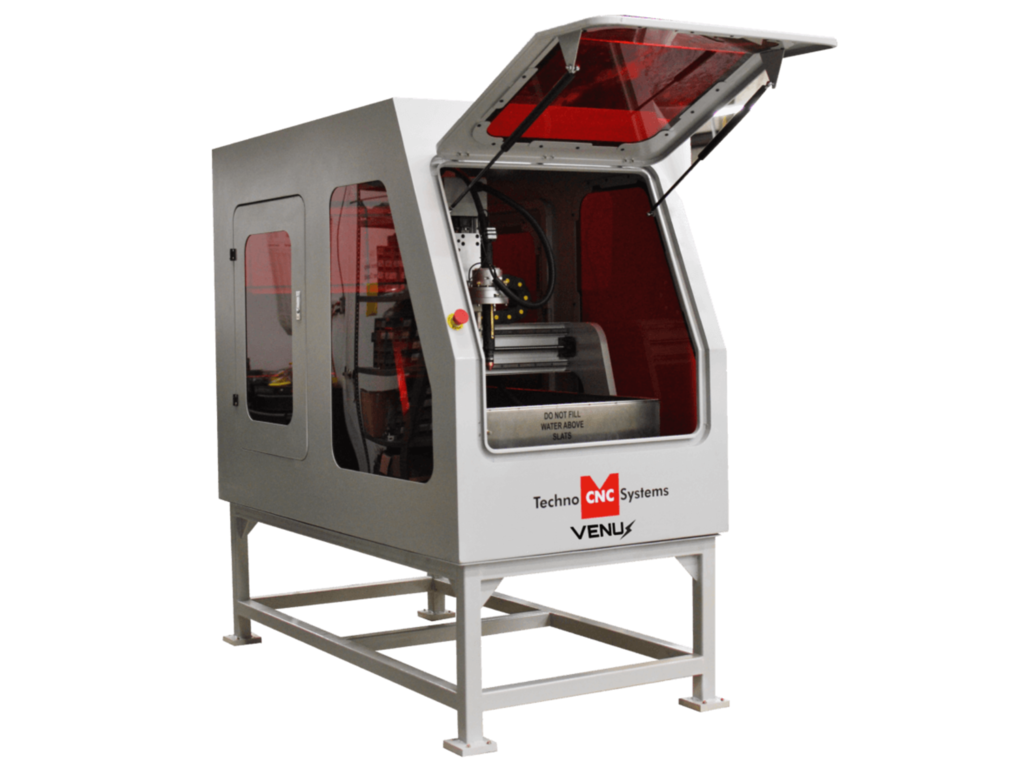

The Venus Series CNC Plasma is constructed using rigid materials delivering ultra-smooth plasma cutting results. The Venus Series CNC Plasma can be equipped with a variety of plasma torch power supplies, each one capable of cutting different material thicknesses. The gantry height is 7-1/2", which provides maximum flexibility to cut sheet goods and larger or taller welded assemblies, if desired. The Venus Plasma includes a stainless steel water table, which absorbs about 90% of the smoke created when cutting, and comes with a steel base and safety enclosure. The safety enclosure includes a top smoke evacuation port so it can be plumbed into an existing ventilation system, if so desired. The machine drive motors are powerful NEMA 34 sized high speed stepper motors, directly coupled to precision ball screws on all three axes. This provides optimum power, speed, and accuracy when cutting thin sheet metal or thicker plate stock.

The plasma torch is cradled in an electronic, automatic, torch breakaway module, using a real time CNC torch height control system.  The Venus Plasma has a PC based industrial controller with a Windows 10 operating system and uses an Ethernet connection for high-speed communication and uninterrupted processing. The system interface is easy to learn, easy to use, and makes the machine operation simple for instructors and students. No other machine on the market includes all of these features and capabilities.

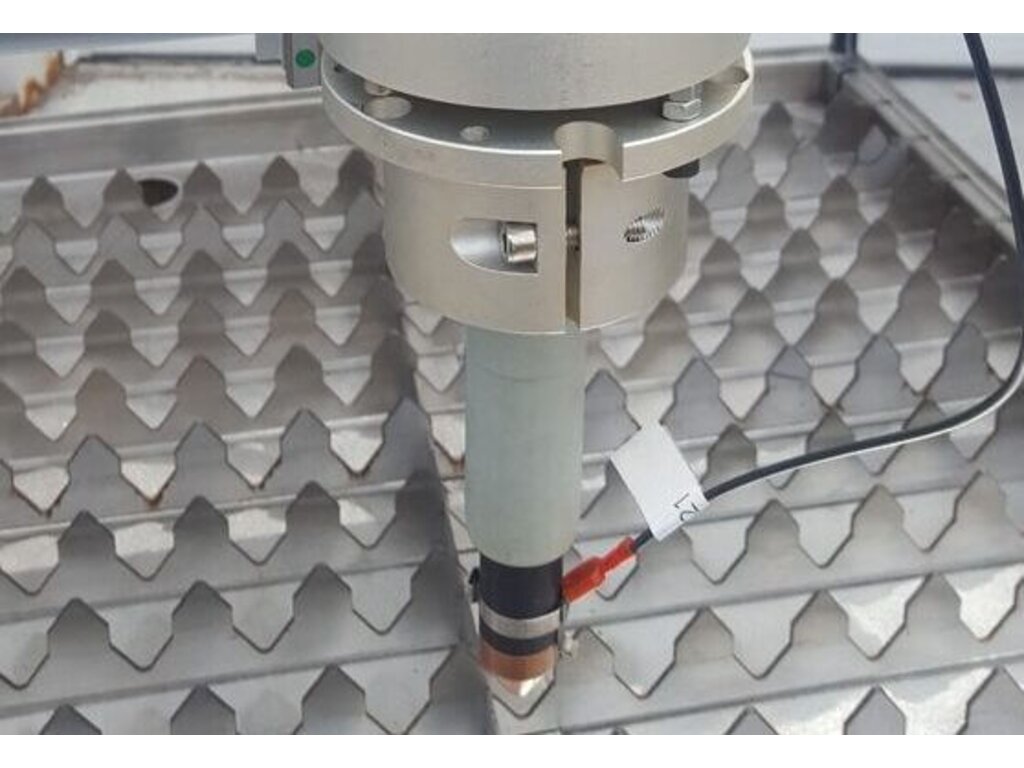

Plasma Torch

The Venus plasma torch is cradled in an electronic, automatic, torch breakaway module, using a real time CNC torch height control system

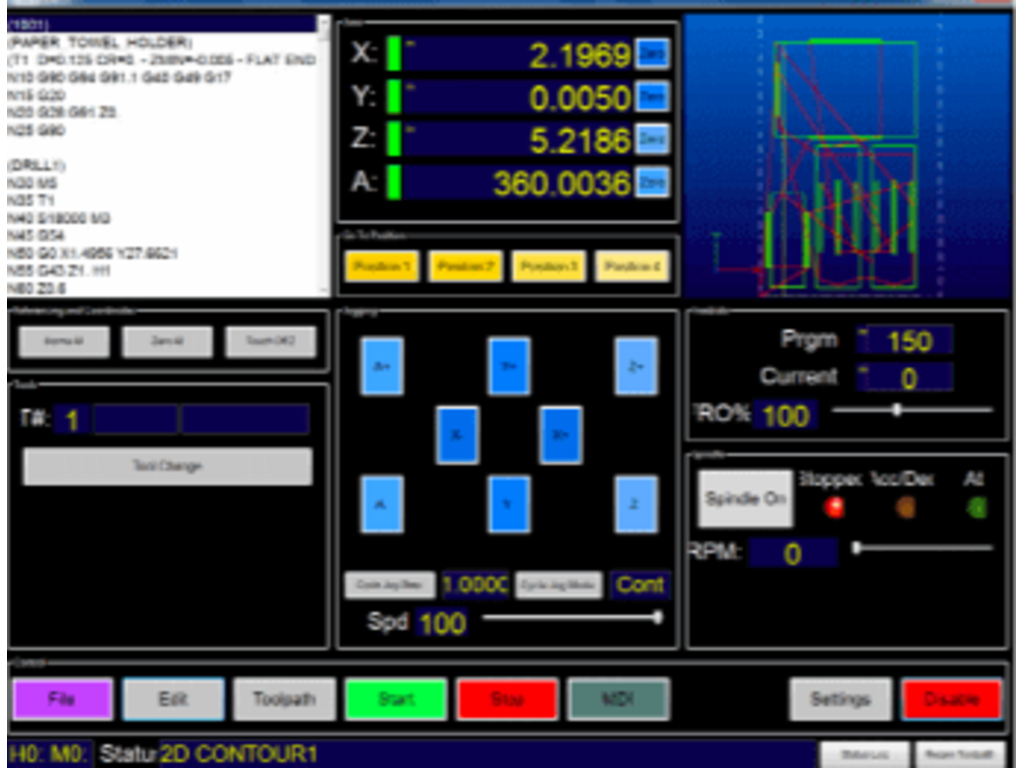

Controller

The core of the Venus Tabletop CNC Plasma machine is the SSA controller. Our New Techno PC based industrial SSA 5000 controller is a Windows 10 based operating system. System connection is Ethernet for high speed communication resulting in high speed uninterrupted processing.

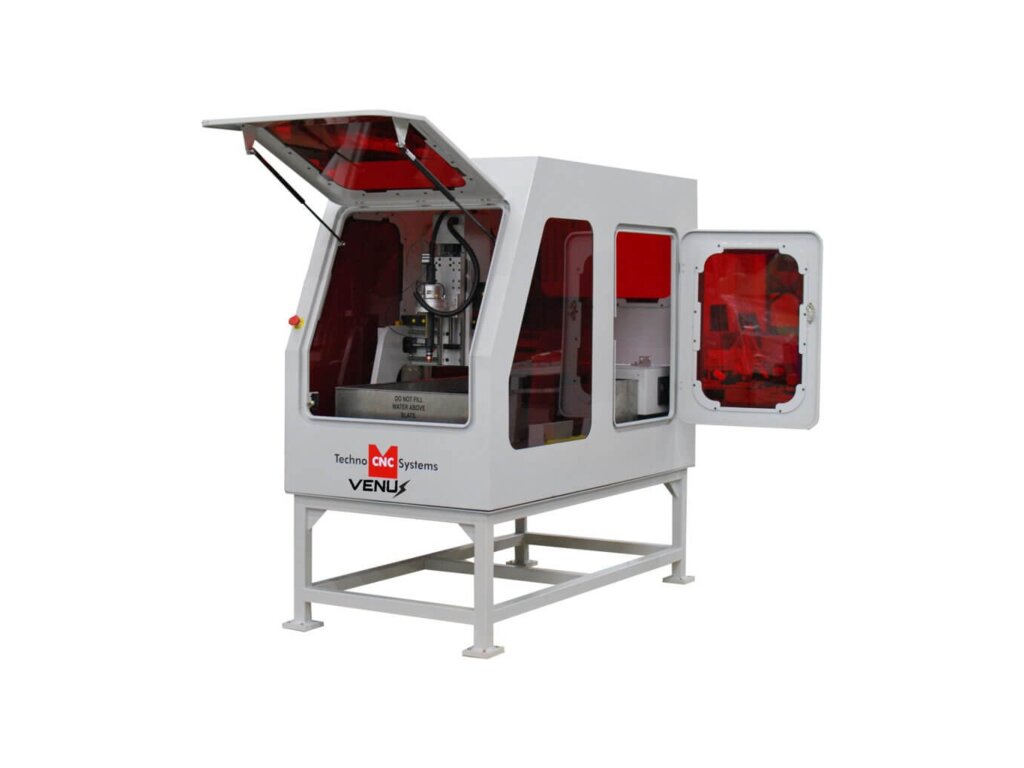

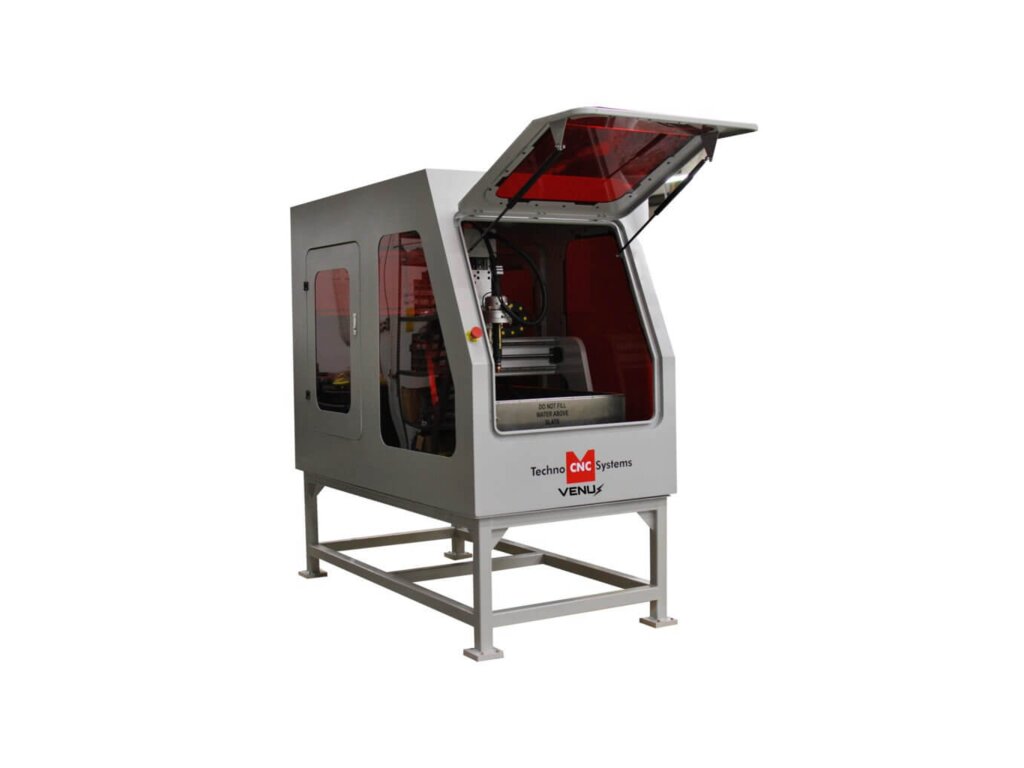

Safety Enclosure

*Optional* Techno’s heavy duty steel base includes hand jack center cross strut for easy maneuverability. Techno’s safety enclosure feature ergonomic front main door with vertical swing, two side doors, (8) enclosure viewing windows, and 3.0” top smoke ventilation port. Techno’s Venus Table top Plasma with stand and enclosure is designed to roll through a standard 36” door opening making this model machine easy and convenient to move around the facility.

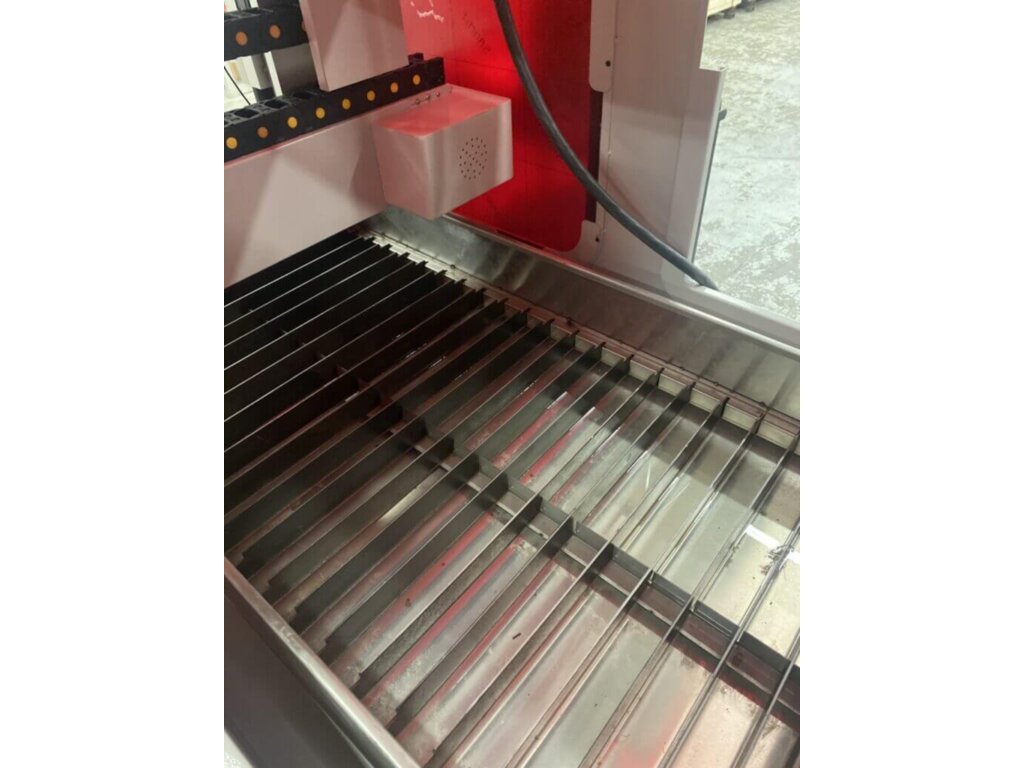

Water Table

Techno Venus comes standard with Stainless steel water tank with extra high side walls keeping the messy sludge inside the tank with built in drain valve the Venus water table is easy to maintain.



Technical Support

Technical support, application engineering assistance, and remote diagnostics is FREE for the life of the machine via telephone, email, and remote logins



OPTIONS:

Hypertherm Powermax 45, 65, 85, or 105

Consumables

Programming Software

Steel base with wheels

Full Safety Enclosure

Spark Skirt



FEATURES:

20” x 30” Process area

Precision ball screws on all three axes

Hypertherm Torch

Brushless micro stepper motors and controls

Stainless steel water tray with vertical grid

Automatic torch height control

Linear rails and bearings

SSA Controller

Electronic torch breakaway





FEATURES:

20” x 30” Process area

Precision ball screws on all three axes

Hypertherm Torch

Brushless micro stepper motors and controls

Stainless steel water tray with vertical grid

Automatic torch height control

Linear rails and bearings

SSA Controller

Electronic torch breakaway





Voltage availability
220-240V
Production lead time
days
Teacher materials available
Yes
Student materials available
Yes
E-Learning modules
Yes
